nSpire Touch WiFi Programmable Thermostat (White)

4.96
Based on 67 reviews

Refurbished

Works with Hey Google
Compatible with Amazon Alexa
Get it on Google Play
Download on the Apple App Store
Currently Unavailable

There are currently no refurbished version of this product.

Buy it New: $335

nSpire Touch WiFi Description

Due to its WiFi capabilities, this programmable thermostat, with built-in self-testing GFCI, allows you to control your floor heating system with your smartphone or on the web. If you have a busy schedule, the nSpire Touch WiFi’s ability to be controlled remotely can translate into huge energy savings without sacrificing comfort or convenience. Additionally, the nSpire Touch WiFi can be controlled with your voice via a Google Assistant or Amazon Alexa enabled device.

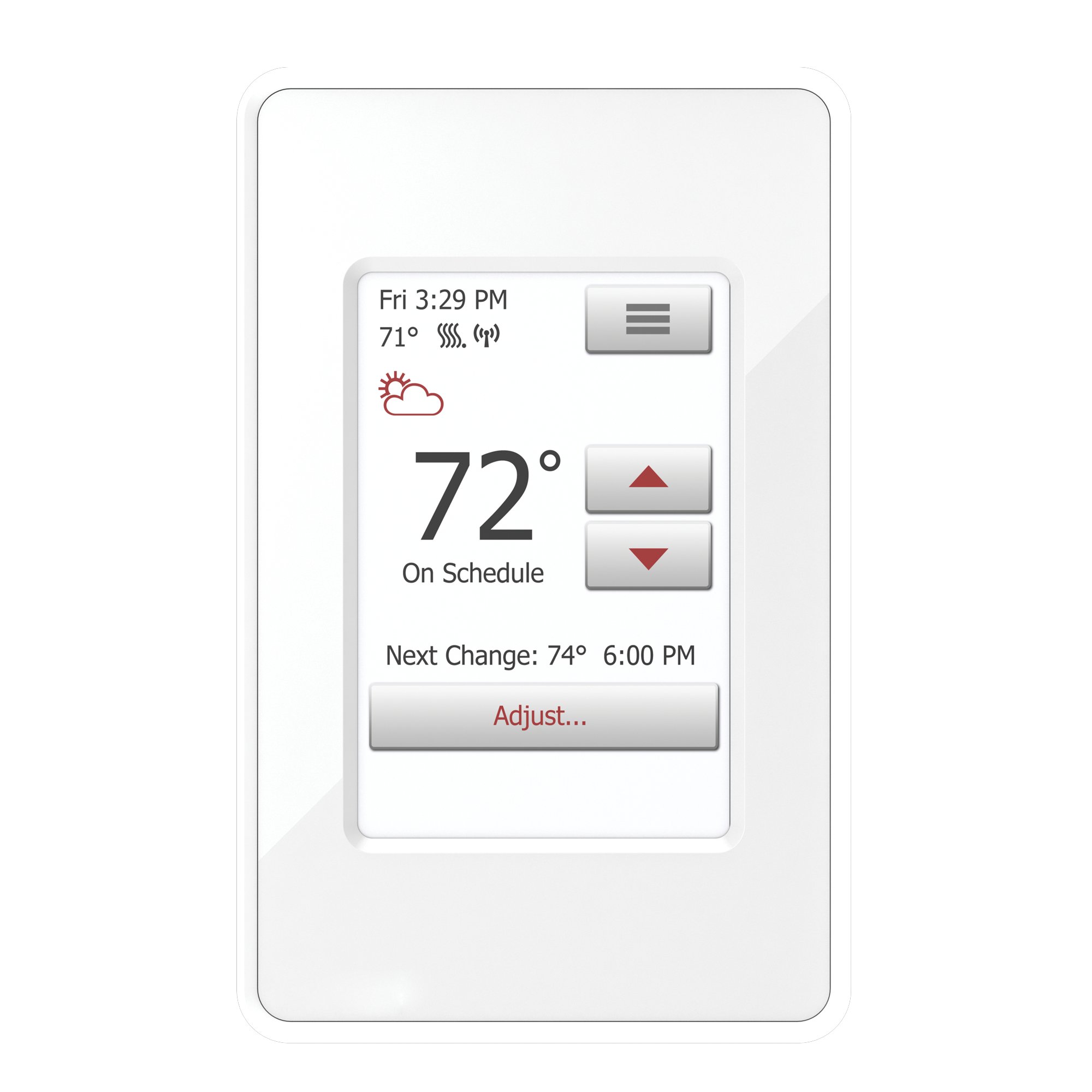

This version comes with a white faceplate that allows the unit to blend seamlessly with a large variety of room designs. With its crystal-clear 3.5” full color touchscreen display, the dual voltage (120V/240V) nSpire Touch WiFi is as easy to operate as it is to look at. The integrated Install Wizard and easy-programming options make set up a breeze. This model provides maximum control over the floor temperature with 6 programmable events for each day of the week. Also includes floor sensor.

Features:

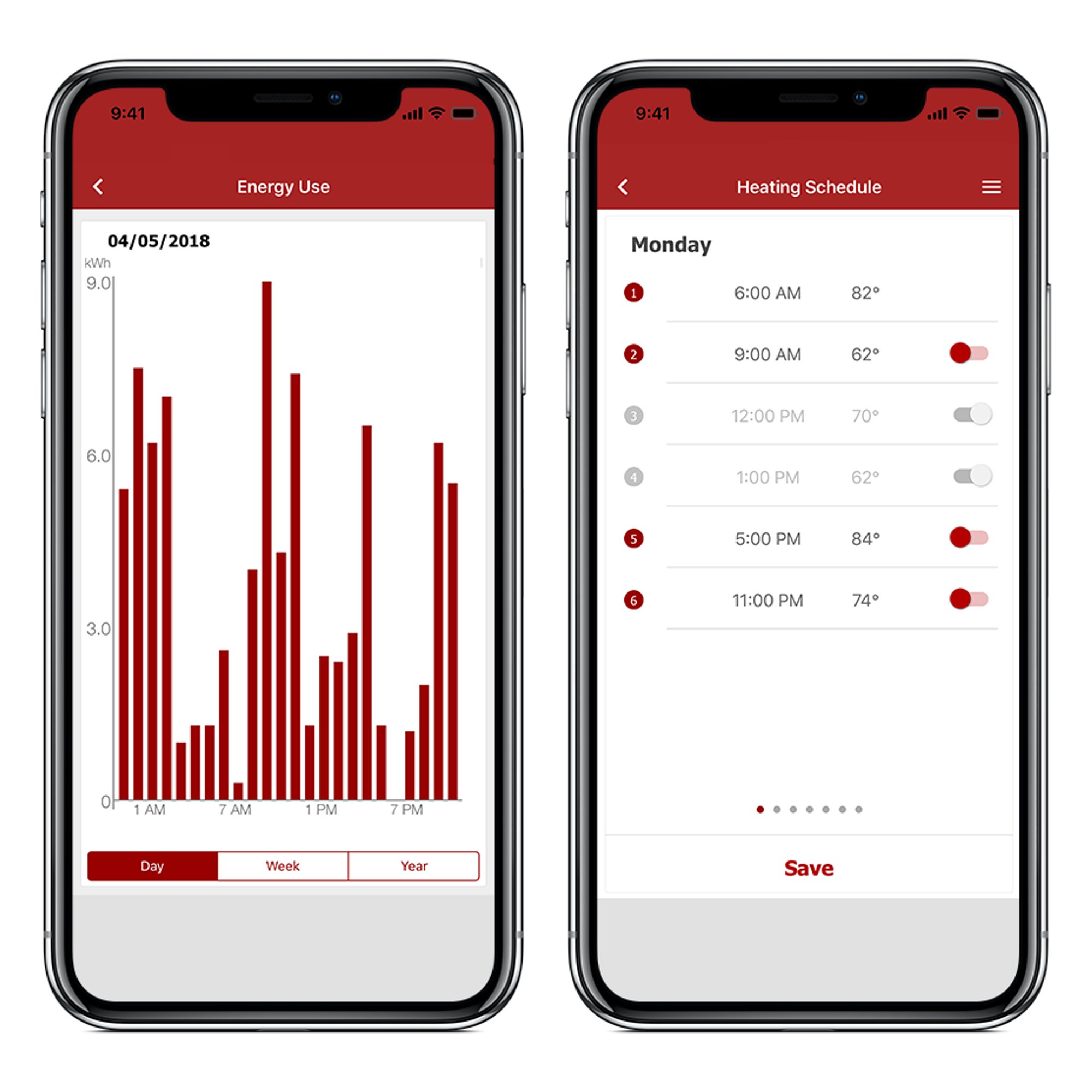

  • Remote Operation: The WiFi capabilities  enable you to track energy use and control your heating system with your mobile device or computer
  • Voice Control: The thermostat works with Hey Google or Amazon Alexa so you can control your heating system hands-free
  • Included Floor Sensor: This thermostat comes with a 10k ohm floor sensor
  • Full-Color Touchscreen: The 3.5” touchscreen also includes a real-time outdoor weather indicator icon
  • Programmable: You can set up 6 separate temperature events per day and the integrated Install Wizard makes set-up simple
  • 3-year Warranty: This product is covered by a limited 3-year warranty and lifetime 24/7 technical support
  • Safe: This thermostat is both cULus listed and it comes with a Child-Lock function
  • Radiant Heating Thermostat: This model can be used to control both electric floor heating systems and hardwired radiant panels

Specifications

Warranty / Certifications

Approvals cULus listed
IC Certification Number 8595A-NINAW106
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Electrical

Battery 5 year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Appearance

Color White

Product Dimensions

Depth 2″
Installed Depth 0.75″
Length 5.125″
Weight 0.6 lbs
Width 3.25″

Controls

Display Backlit Display
Display Size 2″ W x 3″ H (3.5″ Diagonal)
Languages English, French, Spanish

Thermostat

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F
Temperature Rise Limit in Laminate Floor Protection ~10°F/hr (~5.58°C/hr)

Connectivity

Hardware Version Identification Number (HVIN) NINA-W106
Wi-Fi IEEE Standards 802.11 b/g/n
Wi-Fi Radio Frequency Bands 2.4 GHz
Works with Hey Google or Amazon Alexa

Identifiers

SKU UWG4-4999-BTK
UPC (GTIN-12) 881308068790

Frequently Asked Questions

Showing all 5 questions

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

40 people found this helpful Was this helpful? Yes No

A floor heating system can work as a supplemental heating source and make the basement warmer. If more heat needs to be added to the room, you can experiment with setting the floor heating thermostat to higher temperatures.

6 people found this helpful Was this helpful? Yes No

The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

6 people found this helpful Was this helpful? Yes No

No, floor heating thermostats are not compatible with the towel warmers. We would also not recommend using both devices on the same control, as it does not take the same amount of time to reach the ideal temperature for each product, which could lead to one unit to overheat and the other to not function properly.

5 people found this helpful Was this helpful? Yes No

WarmlyYours's floor heating thermostats are typically universal and can be used with the majority of electric floor heating systems as a new or replacement controller. Please review the electrical specs of both the thermostat and the heating system to ensure a proper match for the heating system, sensor, etc. You can also give us a call at (1-800-875-5285) and we can help answer any remaining questions.

2 people found this helpful Was this helpful? Yes No
