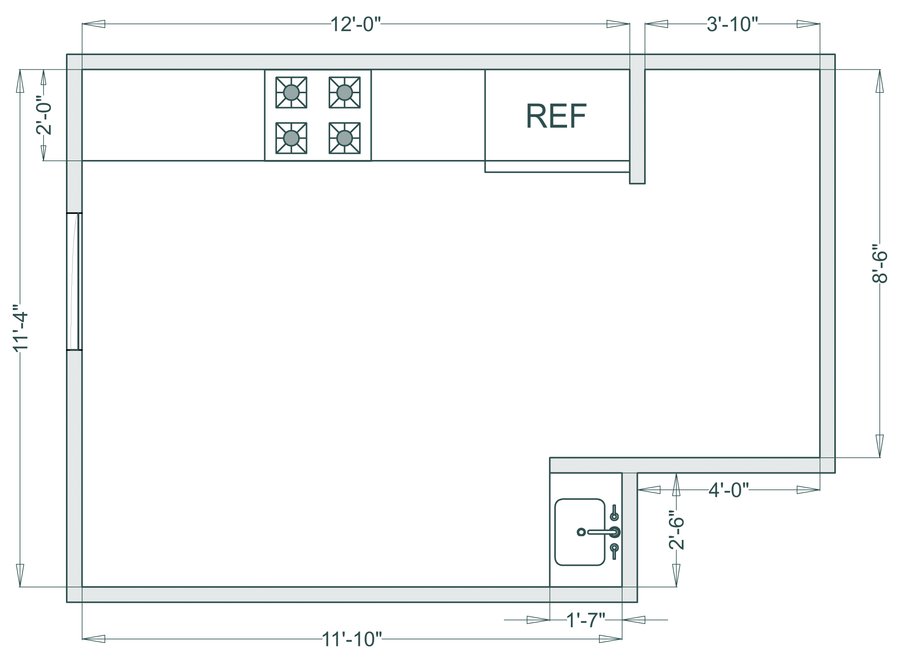

Single Wall or Straight Kitchen plan 11
Flooring
Tile, Marble or Stone
Subfloor Unconfirmed/Other
Heating System Coverage 129 sq. ft.
Voltage 240V
Subfloor Unconfirmed/Other
Heating System Coverage 129 sq. ft.
Voltage 240V
Installation Options
WarmlyYours offers a heating system for all of the most common flooring surfaces, including tile, stone, and marble. Each system type has unique advantages and best applications. Below you will find several different floor plans that are based on this example kitchen. Each breakdown is based on a different heating element and each breakdown will provide product information and costs. If you have any questions about which system type would be best for your project, you can contact us directly.Click on any of these available installation options below to see an example floor plan and project breakdown:
Tell us About your Project
Our team of Radiant Experts is ready to help! Just tell us a little about yourself and your project to get started.
Installation Options

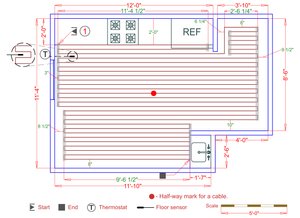

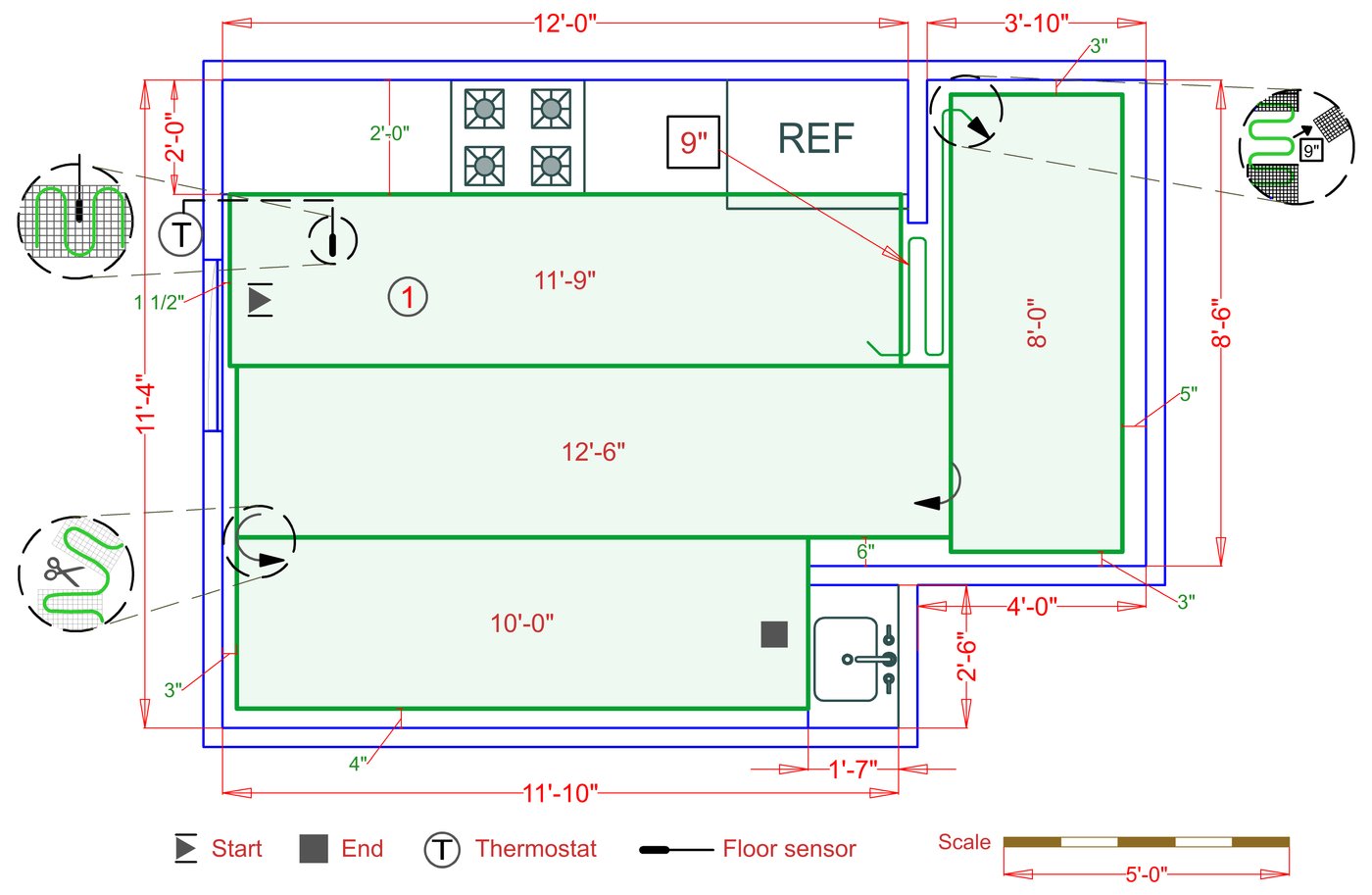

TempZone™ Flex Roll
TempZone™ heated rolls consist of a heating cable secured onto a green mesh fabric with the heating cable distributed in serpentine loops. The cable loops are 3" apart, which helps deliver even heating throughout flooring areas, never leaving cold spots in the room.
Cost to Operate: $0.14/hour
Estimated Quote
Total
$1,414.00

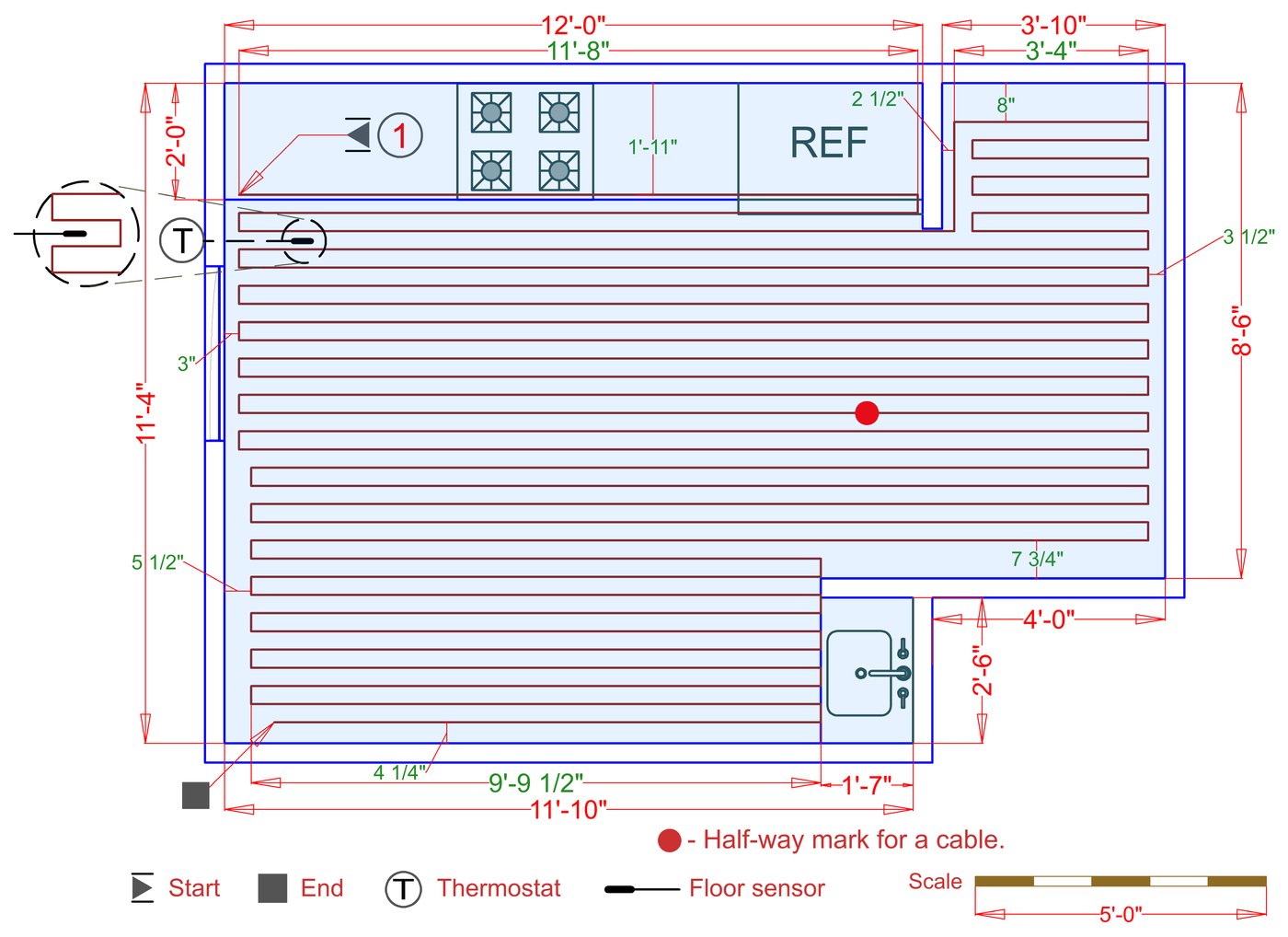

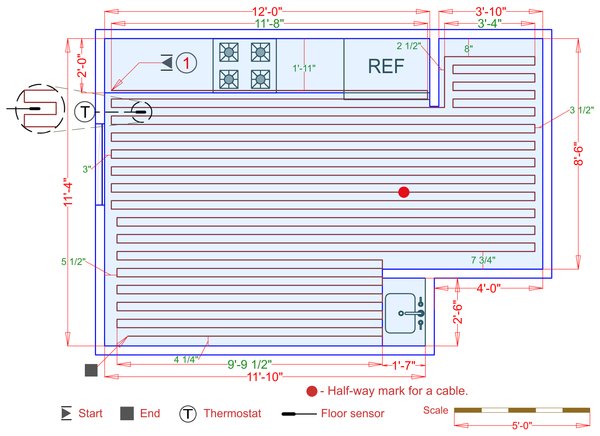

TempZone™ Cable with Prodeso
This free-form cable provides the ultimate in flexibility, making it easy to customize installation for rooms of any size and shape. It features a twin conductor with a 15’ cold lead and is available in two voltage options and a range of lengths to meet the requirements of any installation.
Cost to Operate: $0.11/hour
Estimated Quote
Total
$1,502.00

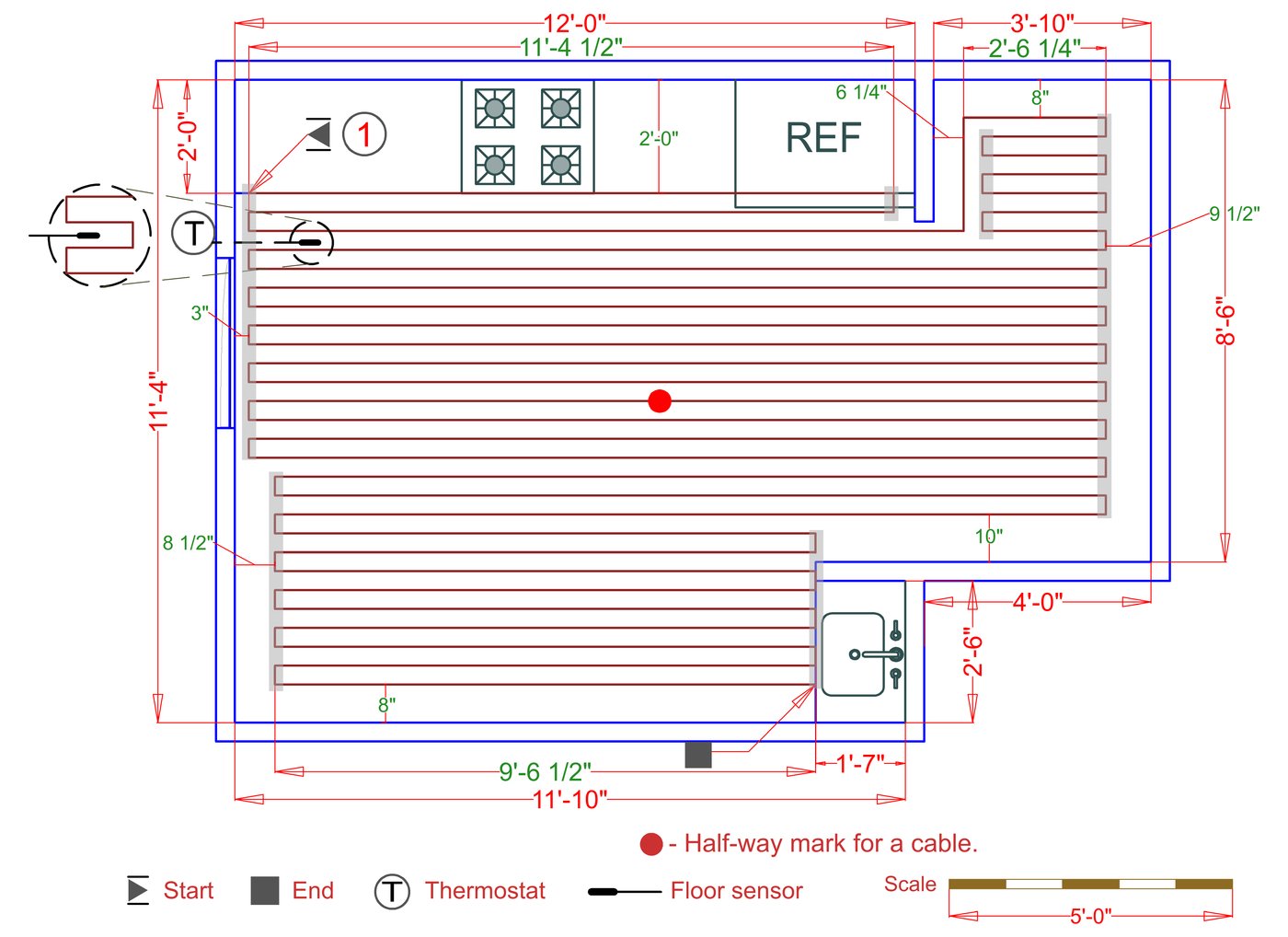

TempZone™ Cable with Strips
This free-form cable provides the ultimate in flexibility, making it easy to customize installation for rooms of any size and shape. It features a twin conductor with a 15’ cold lead and is available in two voltage options and a range of lengths to meet the requirements of any installation.
Cost to Operate: $0.10/hour
Estimated Quote
Total
$744.00
