Repair/Splice Kit (Twin Conductor)


Repair/Splice Kit (Twin Conductor)


Support Page

Description

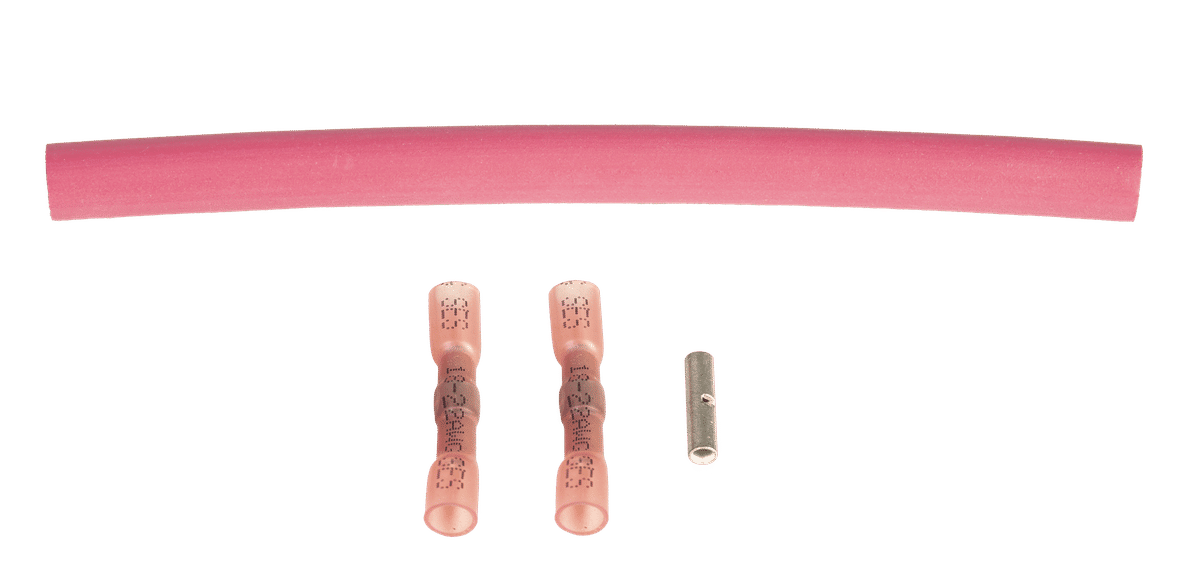

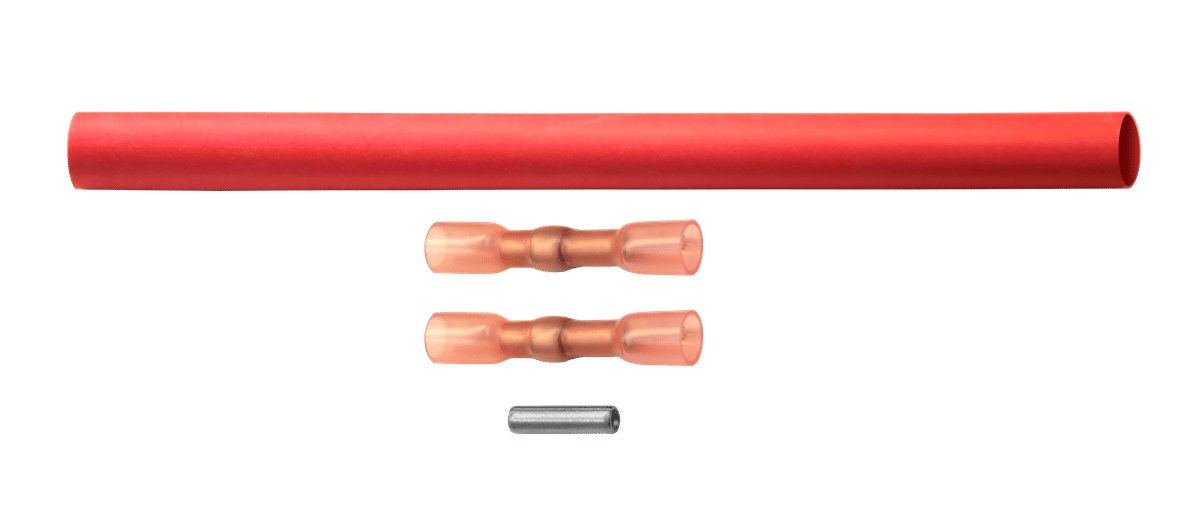

This splice kit is used to repair a damaged section of WarmlyYours TempZone twin-conductor floor heating cable. This can be used for twin-conductor TempZone Flex Rolls, TempZone Easy Mats, or TempZone 3.7-watt Floor Heating Cable. This kit includes: 1 flexible adhesive-lined heat shrink tube, 2 sealed crimp & solder connectors, and 1 uninsulated butt connector. Please note that this kit is not to be used for creating extensions, terminations, or for altering the length of the heating cable.

Specifications

Electrical

Compatible Products Any TempZone twin-conductor heating elements

Product Dimensions

Length 3″
Width 2.5″

Logistics

Package Contents 1 flexible adhesive-lined heat shrink tube, 2 sealed crimp & solder connectors, and 1 uninsulated butt connector

Identifiers

SKU SP-TWIN
UPC (GTIN-12) 881308021283

Documents & Manuals

Customer Questions & Answers

Installation and Repair Parts has 21 Questions and Answers.

Don't see the answer you're looking for? Post your question

How do I work with my electrician to install WarmlyYours electric floor heating?

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

23 people found this helpful.  Did you find this helpful? Yes No

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

16 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

13 people found this helpful.  Did you find this helpful? Yes No

How do I know if I am installing my electric floor heating system properly?

Please keep in mind that you must check your electric floor heating system with a digital ohmmeter in conjunction with a Circuit Check™. Take an initial reading as soon as you take the product out of the box to verify that it is within -5% / +10% of the values stated on the product’s label. This will give you a basis of comparison for future readings. Take a second reading once you have positioned the system to match your custom installation plan. It is also advisable to take an additional reading in the middle of the tile installation, just to make sure that the Circuit Check™ is doing its job. Then, take a final reading when you are finished with the floor installation and are ready to hook up the thermostat.

The Circuit Check™ is a tool developed by WarmlyYours to give you peace of mind and ensure trouble-free installations. Simply hook up the cold leads to the tool while you position the system to match your custom installation plan.

The Circuit Check™ will continuously monitor the continuity of the circuit during the installation of your system and during the installation of your flooring. The Circuit Check™ beeps immediately when a short in the system is detected, alerting you to a potentially damaged cable in the area you are working, before you lay the tile over the electric floor heating system.
 The WarmlyYours technical support team is available 24/7 to provide assistance if the alarm sounds, or if you would have any questions during your installation.

9 people found this helpful.  Did you find this helpful? Yes No

If I have extra cold lead wire, can I trim off what I don't need for my installation?

Yes. Unlike the heating cable for electric floor heating, the cold lead wires can be trimmed.

9 people found this helpful.  Did you find this helpful? Yes No

View all 21 Questions and Answers

Customer Reviews

Installation and Repair Parts achieved an average rating of 5.0 stars with 3 reviews by our customers.

Have you used this product before? Leave a review

Great product. Worth the price

Anonymous, New Tecumseth, ON on 01/15/2023

Easy to follow instructions. Splicing kit kept my wife extremely happy!

Great product and easy to install. Warm bathroom floors are p

Mike H., Flintridge, CA on 10/28/2022

Great product and easy to install. Warm bathroom floors are pure heaven

Works like a charm under both porcelain and carpet.

Dale B., Wadsworth, OH on 02/24/2021

Works like a charm under both porcelain and carpet.

View all customer reviews
