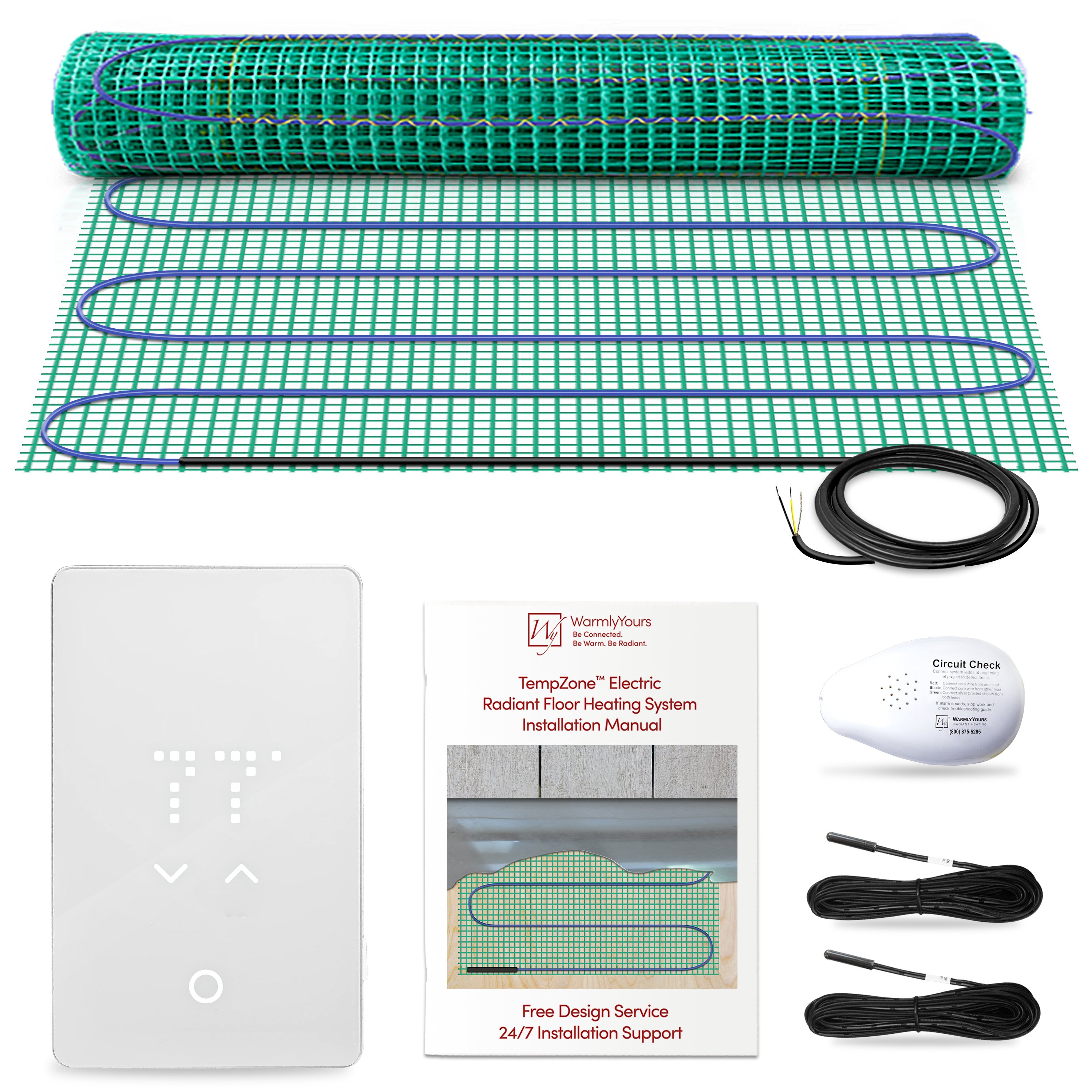

TempZone Easy Mat Kit 3 x 2 ft (6 sqft) with nTrust 2.0 Touch Nonprogrammable Thermostat, 120V, 0.75A




Support Page

TempZone Easy Mat Kits with nTrust 2.0 LED Touch Thermostat Description

Specifications

Electrical (TRT120-3.0x02)

Amps 0.75 A
Cold Lead Wire Gauge 17 AWG
Floor Load 0.09 kW
Ohms 160 Ω
Ohms Per Ft 6.957 Ohm/ft
Thermal Power 0.09 kW
VOP 65
Voltage 120 V
Watts 90 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications (TRT120-3.0x02)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Warranty / Certifications (UTN5-4999)

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Performance (TRT120-3.0x02)

BTU Per Hour 307 Btu

Electrical (UTN5-4999)

Battery 5 year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Product Dimensions (TRT120-3.0x02)

Cold Lead Length 180″
Coverage 6 ft²
Heating Cable Length 23′
Heating Element Thickness 1/8″
Length 2′
Size 3′ x 02′
Weight 2 lbs
Width 3′

Appearance (TRT120-3.0x02)

Color Green

Appearance (UTN5-4999)

Color White Acrylic
Display LED Light Through

Product Dimensions (UTN5-4999)

Depth 1.73″
Installed Depth 0.46″
Length 4.98″
Weight 0.6 lbs
Width 3.09″

Thermostat (UTN5-4999)

Floor Sensor Compatibility 10k ohms or 12k ohms
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F

Installation (TRT120-3.0x02)

Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more

Logistics (TRT120-3.0x02)

Package Contents (1) TempZone Easy Mat 120V 3′ x 2′ 6 sq ft 0.8A (TRT120-3.0x02); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers (TRT120-3.0x02)

SKU TRT120-3.0x02
UPC (GTIN-12) 881308022068

Identifiers (UTN5-4999)

SKU UTN5-4999
UPC (GTIN-12) 881308080426
