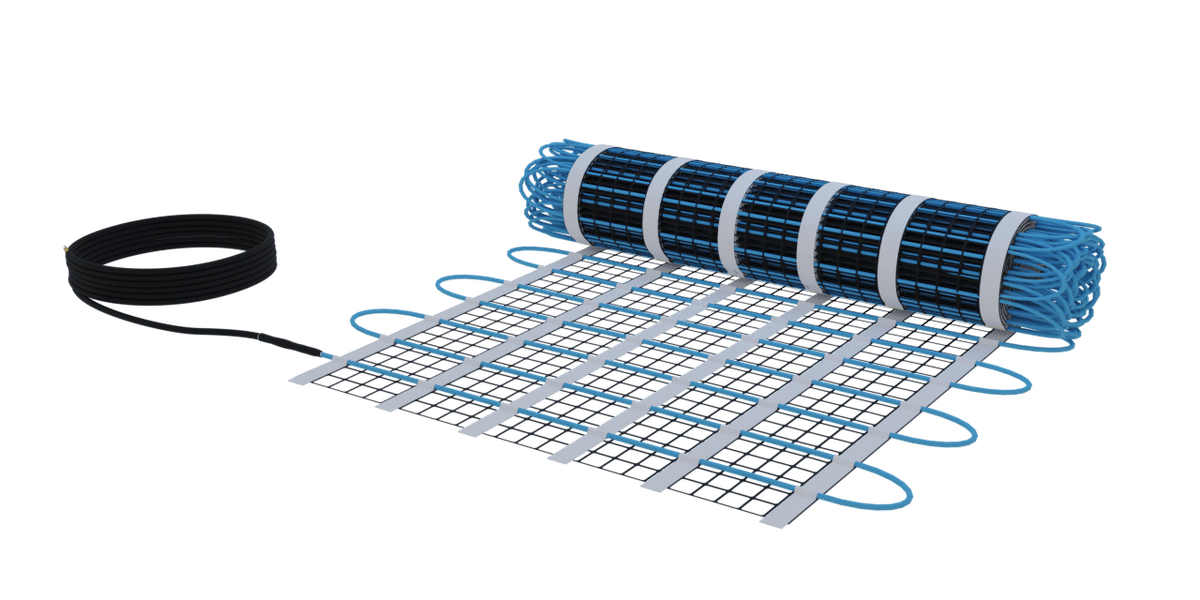

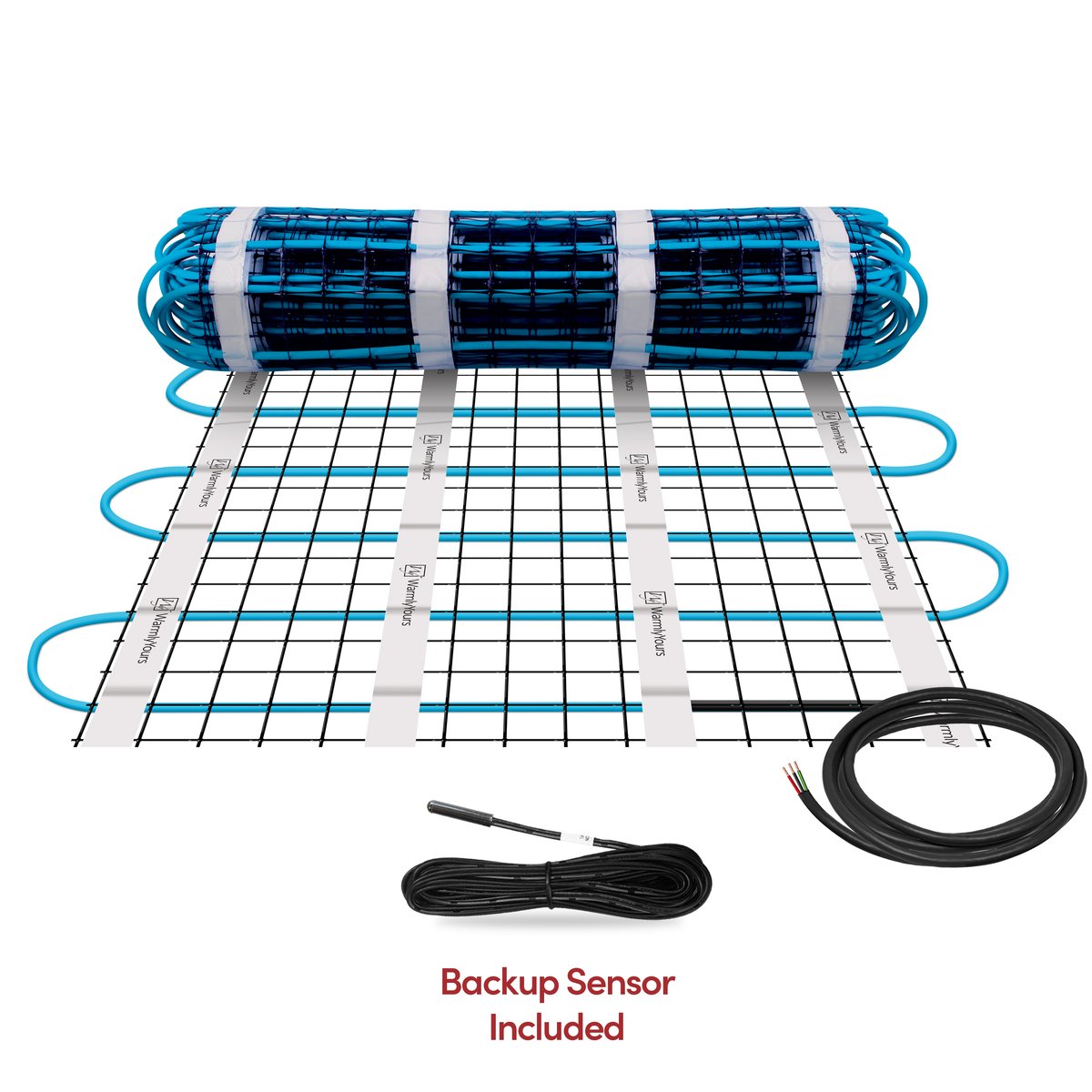

Slab Heating Mat 120V, 1.5′ x 11′, 16.5 sq.ft., 2.8A
- 10 Year Warranty
- Our systems are cUlus listed, Gfci protected and RoHs Compliant
- No pipes, boilers, tubing, tanks, or noisy pumps to install
- 10-year warranty covers defects in workmanship and materials
- 20W per square foot operation for energy efficient comfort
Slab Heat Mats Description
Are you considering installing heated concrete floors in your home? Even if you aren't building a new home, perhaps you're thinking about adding a sunroom or garage to your house. If you want to enjoy your sunroom in all four seasons, or comfortably enjoy the beauty of a trendy new polished, stamped or stained concrete floor, you'll appreciate radiant heating under foot. Now, with WarmlyYours' concrete heating cables and mats, you can design your concrete floors to be as warm and functional as they are attractive. Radiant heating is available in cable form for maximum flexibility or mat form, which allows for quick and easy installation under concrete slab floors.
|Floor Load||0.3 kW|
|Watts Per Sq. Ft.||20 Watts Per Sq. Ft.|
Warranty / Certifications
|Warranty||10 Year Warranty|
|BTU Per Hour||1126 Btu|
|Cold Lead Length||20′|
|Heating Element Thickness||0.25″|
|Size||1.5′ x 11′|
|Country of Origin (COO)||India|
|Floor Types||Installs in concrete|
|Wire||Energy efficient twin-conductor|
Documents & Manuals
- Slab Heating Installation Manual (English)
- Installing Floor Heating Under Concrete Slabs Step by Step (English)
- Snow Melting & Slab Heating Application Cross Sections (Spanish)
- Snow Melting & Slab Heating Application Cross Sections (English)
- Snow Melting & Slab Heating Application Cross Sections (French)
- Slab Heat Wiring Diagram for TH115, TH114 and a Relay (English)
- Slab Heat Wiring Diagram for TH115, TH114, Power Module (English)
Customer Questions & Answers
Slab Heat Mats has 64 Questions and Answers.
While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.
Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:
Vacuum Cleaner: 300 mG
Microwave: 200 mG
Portable Heater: 100 mG
Dishwasher: 20 mG
Washing Machine: 20 mG
WarmlyYours TempZone™ (Twin): 1.8 mG
WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.
How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

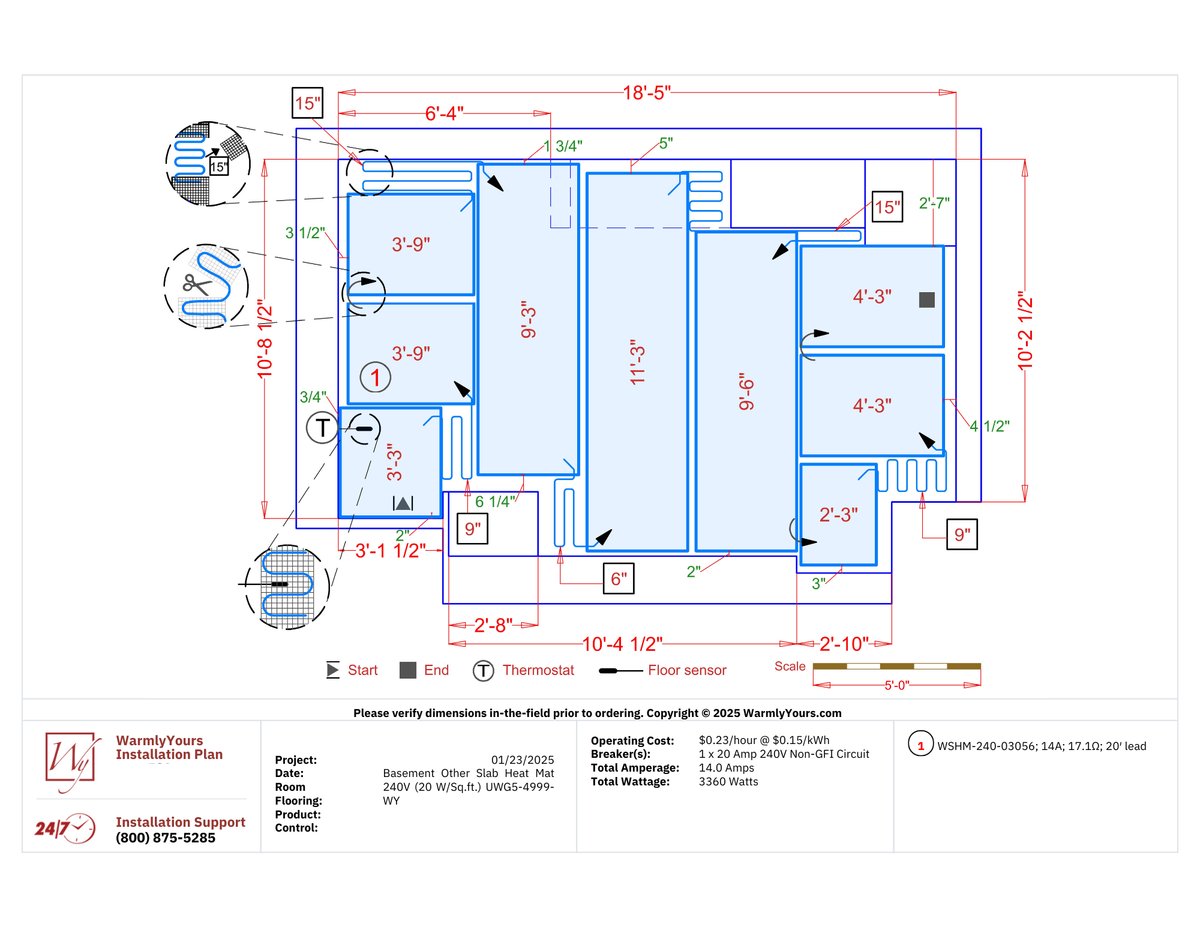

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.
Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.
Sunrooms can be very cold during the winter months. While a furnace may push some warm air into the room, the large number of windows, exterior walls, and other causes of heat loss in a sunroom will typically keep it from having a comfortable temperature level. Floor heating and radiant panels will add radiant heat, which the human body absorbs faster than other forms of heat, to the room so that it feels warm even at lower temperatures.
