The Invisible Solution to a Cold Tile Floor Of Dining Room, Idaho Falls

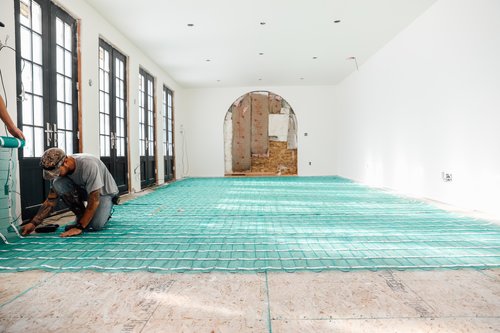

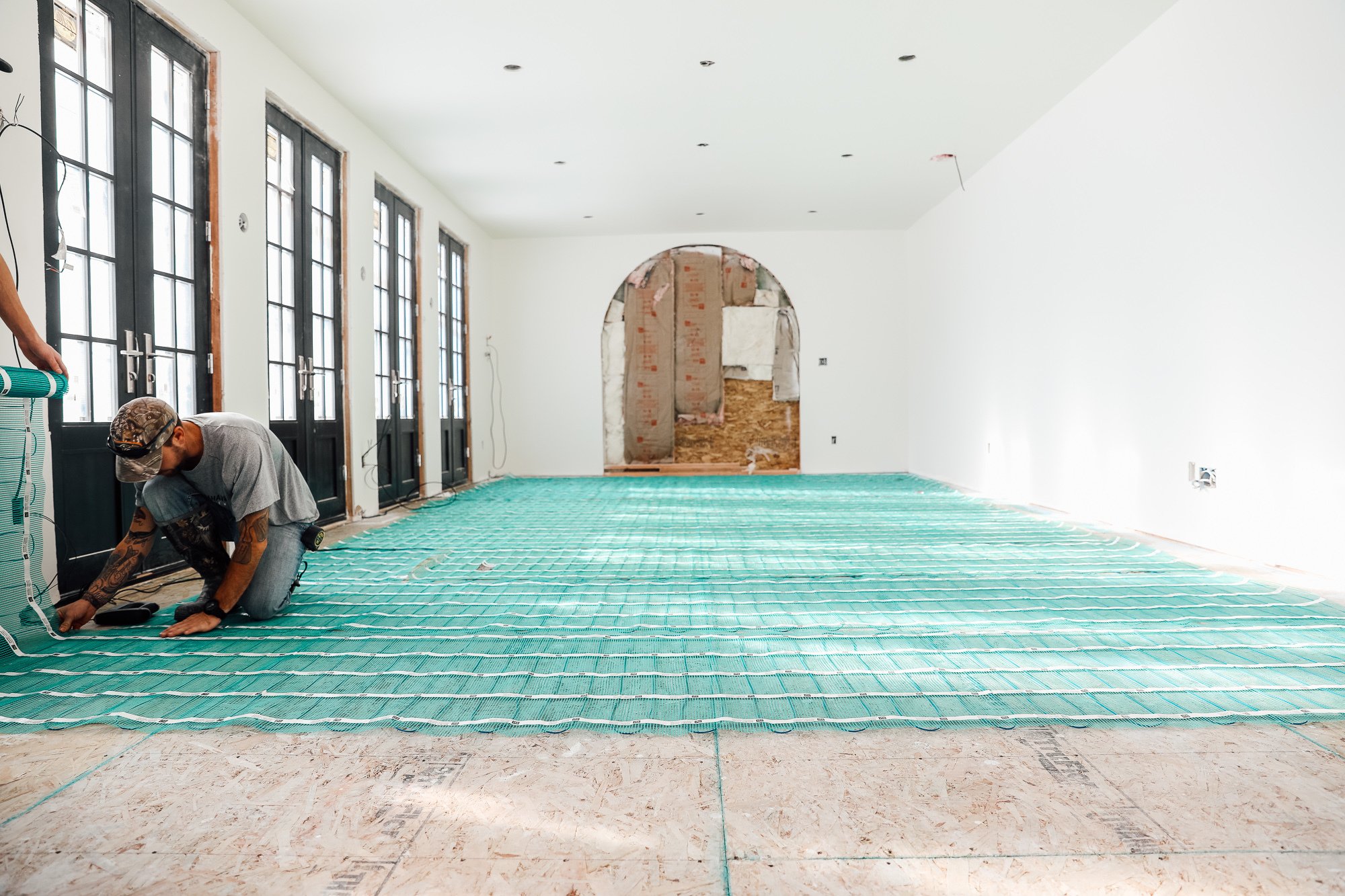

This project in Idaho Falls, ID, transformed a large dining room into a warm and inviting space by installing an electric underfloor heating system. The homeowners wanted to ensure their new tile, marble, or stone floor would be a source of comfort, not a chilly surface, especially during Idaho's colder months.

Location
IDAHO FALLS, ID


Spacious Dining Hall with Heated Stone Floor


Heated Space Type

Watts
6,125 W

Volts
240 V

Amps
26 A

Size
510 sq.ft.

Operating Cost Per Hour

Cost Per Hour Explanation
The estimated operating cost of $0.28 per hour represents the cost to run the entire 414 sq.ft. underfloor heating system at full power for one continuous hour. This figure provides a clear benchmark for understanding the system's energy usage, but the actual daily cost is typically much lower.

Featured Products

Company Chris Loves Julia
View Company Details

Project Information:

The primary challenge was to effectively and efficiently heat a spacious 510 sq.ft. dining room. Traditional heating methods often struggle with large rooms with hard flooring surfaces, leading to cold spots and uneven temperatures. The goal was to provide full floor coverage with a silent, invisible, and energy-efficient heating solution.

The Solution: A Custom TempZone™ System

A custom-designed electric radiant heating system was the perfect solution.

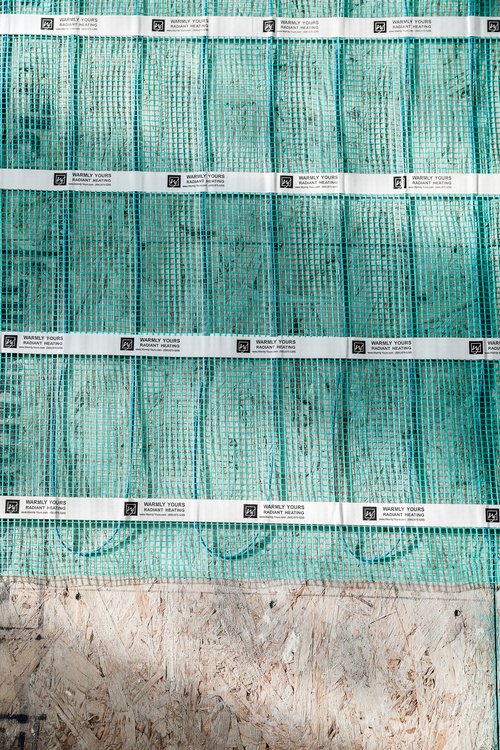

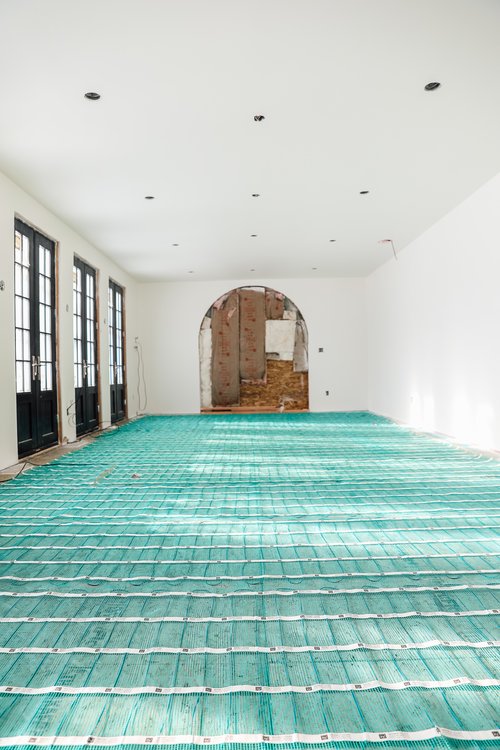

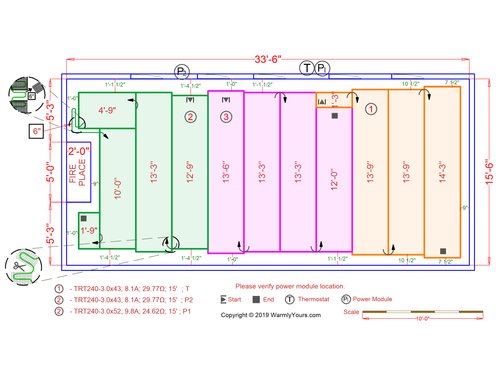

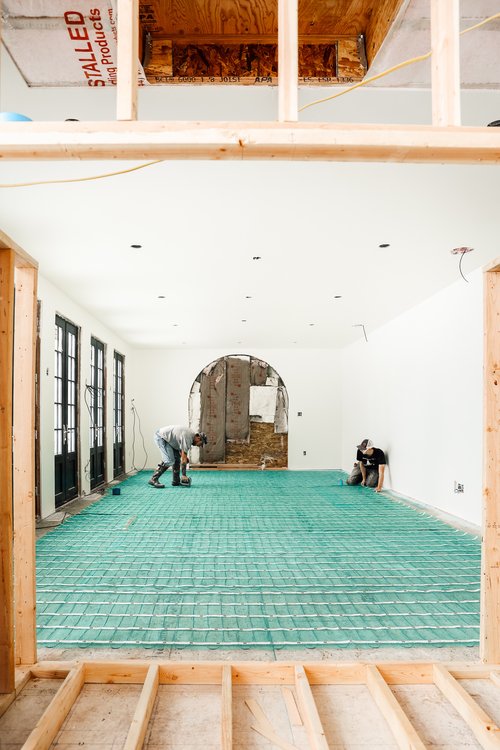

  • Heating System: TempZone™ Flex Rolls were selected for their ease of installation and ability to provide consistent heat across a large area. A total of 414 sq.ft. was heated using three separate rolls to perfectly fit the room's layout.
  • Power and Efficiency: The 240V system was engineered to efficiently power the large floor, drawing 26 amps. Despite its size, the system is incredibly economical to run, with an estimated operating cost of just $0.28 per hour.
  • Smart Control: An nSpire Touch Programmable Thermostat provides complete control over the heating schedule, allowing for maximum comfort and energy savings. To handle the electrical load safely, two nJoin Power Modules were integrated into the system.

Read the Full Story »
