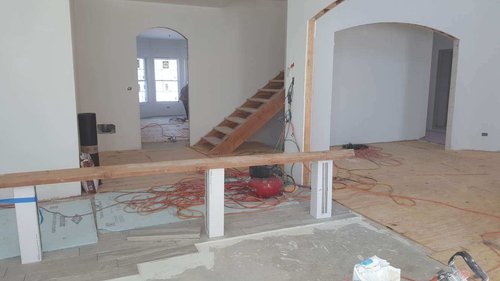

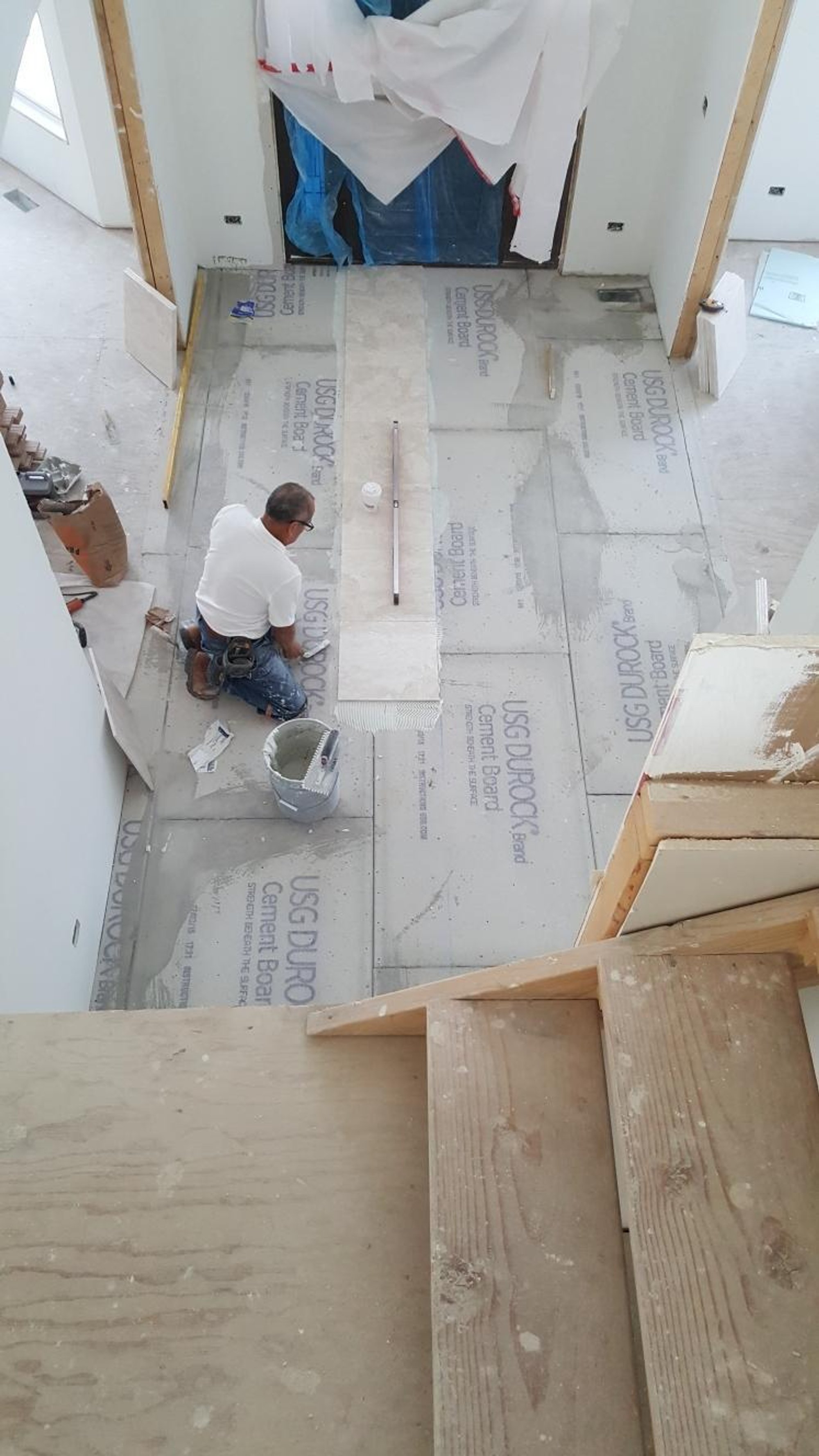

A homeowner in Roselle, Illinois, wanted to eliminate the jarring chill from their foyer's tile flooring, especially during harsh Midwest winters. Installation specialist Jose Chavez & Associates partnered with WarmlyYours to install a 118 sq. ft. TempZone™ radiant floor heating system. This solution provides luxurious, consistent warmth right from the home's entryway, adding significant comfort and value from the moment someone steps inside.
Project Details
| Location | Roselle, Illinois |
| Heated Space Type | Foyer / Entryway |
| Square Footage | 118 sq. ft. |
| System | TempZone™ Floor Heating Cable |
| Electrical | 1.39 kW, 120V, 11.6A |
| Operating Cost | ~$0.24 per hour |
| Installer | Jose Chavez & Associates |
Banishing Cold Entryway Floors
First impressions matter, but a freezing cold tile foyer can make for an uncomfortable welcome. This was the challenge facing the owner of this Roselle home, who wanted to find a solution that would transform their cold, unwelcoming entryway into a warm and inviting space for family and guests.

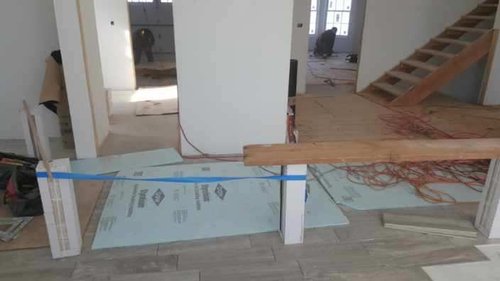

The ideal solution was an electric floor heating system installed under the new tile. The installation team, Jose Chavez & Associates, selected the TempZone™ Floor Heating Cable system for its power and flexibility. This cable was paired with the Prodeso uncoupling membrane, a popular combination for tile floors. This pairing not only delivers efficient in-floor heating but also provides an uncoupling layer that helps protect the tiles from cracking due to subfloor movement.

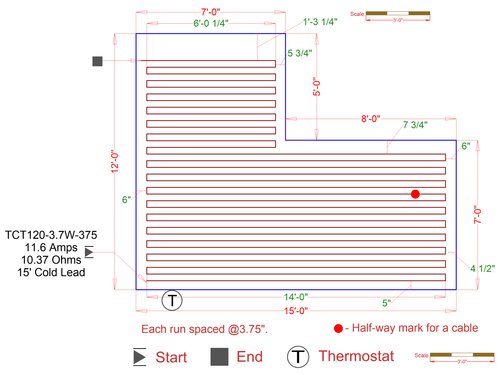

The 375-foot cable was installed at 3.75-inch spacing to provide complete, consistent coverage across the 118 sq. ft. area. To control the system, the high-tech nSpire Touch programmable thermostat was installed. This allows the homeowner to easily schedule heating times—such as weekday mornings and evenings—to maximize comfort while improving energy efficiency. Now, instead of a shockingly cold floor, family and guests are greeted with gentle, radiant warmth.
Featured Products
- TempZone™ Floor Heating Cable: This versatile heating cable provides 3.7 watts per linear foot and was paired with the Prodeso membrane, offering the perfect solution for customized warmth under tile floors.
- nSpire Touch Thermostat: A premium, programmable thermostat featuring a 3.5” touchscreen, setup wizard, and a built-in Class A GFCI for safety. It allows for easy scheduling to improve energy efficiency.
- Circuit Check: An essential installation tool that sounds an alarm if the heating cable is damaged during installation, ensuring a flawless setup and peace of mind.
