This homeowner in Lake Zurich, Illinois, faced the yearly challenge of heavy snowfall making their patio unusable and requiring constant, difficult manual clearing. The solution was the seamless integration of a WarmlyYours Snow Melt Mat system into their new concrete patio installation. This radiant heating solution provides automatic, hands-free snow removal, significantly enhancing the usability and safety of their outdoor living space while eliminating back-breaking winter maintenance.
Project Details (Specs Block)
Detail | Specification |
Location | Lake Zurich, Illinois |
Heated Space Type | Outdoor Patio (Snow Melting) |
Heated Square Footage | 259 sq. ft. (Full Coverage) |
System | Snow Melt Mat (PowerMat) |
Voltage | 240V |
Wattage | 11,509W |
Amps | 47A |
Flooring/Surface | Concrete (new pour) |
Operating Cost Per Hour | $1.91 |
Export to Sheets
Quick Operating Cost Breakdown (Based on the system running during a 4-hour snow event):
- Per Event: ≈$7.64
- Per Month (Estimate, highly variable): ≈$30−$100+ (depends entirely on weather)
The Story / Project Information

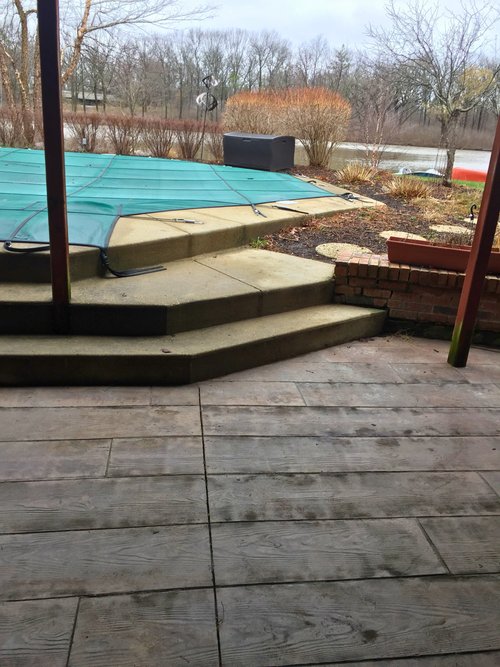

Located in the heavy snow belt of Lake Zurich, IL, the homeowner wanted a permanent solution to keep their large patio clear without having to shovel or use damaging ice-melting chemicals. The ideal time for this upgrade was during the construction of a new concrete patio, allowing for easy embedment of the snow-melting mats.

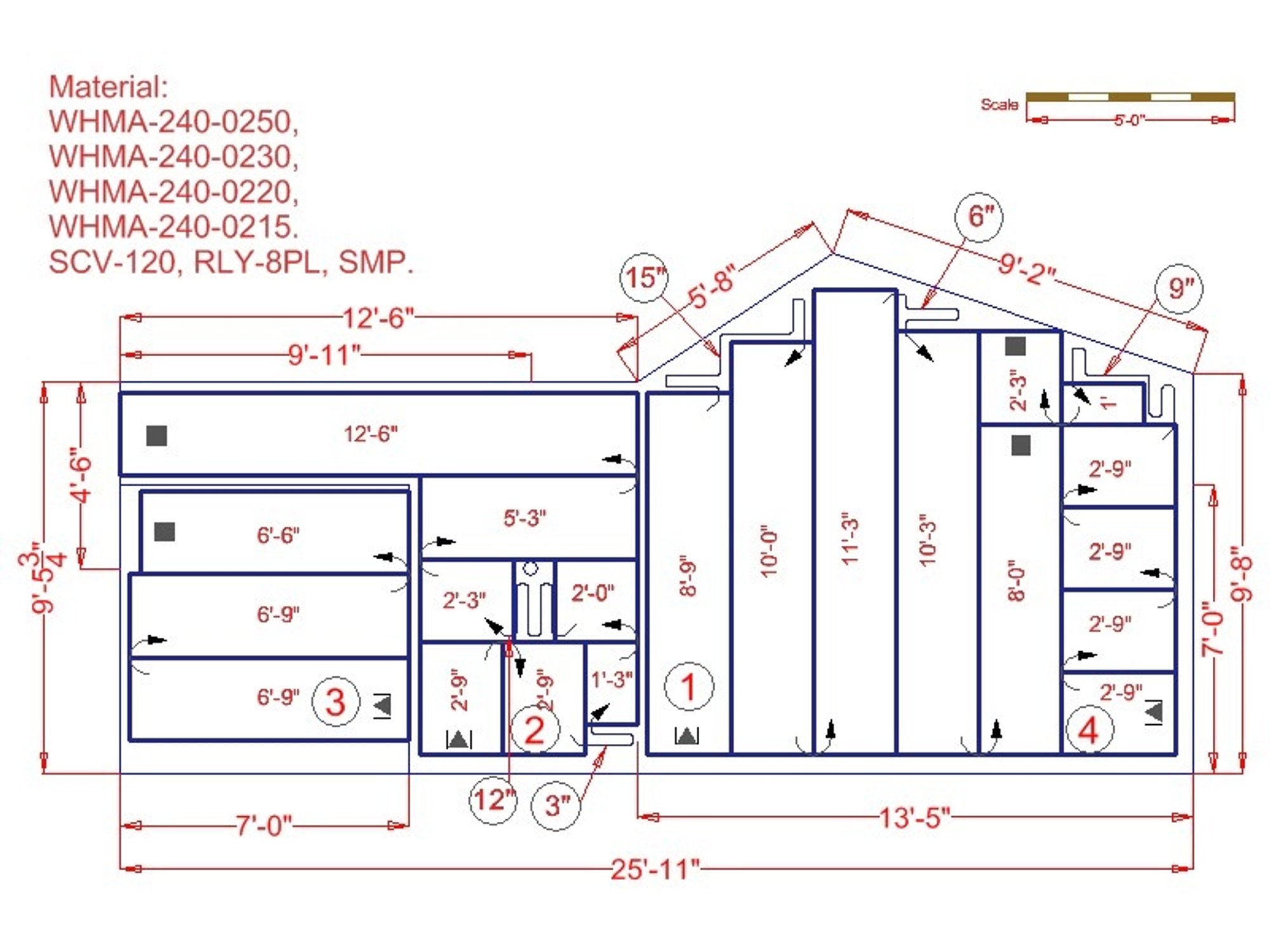

The system utilized multiple WarmlyYours Snow Melt PowerMats to cover the full 259 sq. ft. area. These durable mats were rolled out and secured directly to the wire mesh or rebar before the concrete was poured, ensuring the heating cables were perfectly positioned within the slab. The entire system is managed by the Value Snow Melt Control unit, which automatically activates the mats when it detects cold temperatures and precipitation, providing hands-free snow melting.
The result is a perpetually clear and safe patio, regardless of the weather. This upgrade not only adds a high-end luxury feature to the home but also dramatically increases the accessibility and safety of the outdoor space throughout the long Illinois winter. It’s an investment in convenience and peace of mind.
Featured Products Section
Product Shot (Not available, image placeholder) | Product Description |
Snow Melt PowerMat (240V) | These robust radiant heating mats are specifically designed for embedment in concrete and asphalt for large-area snow melting. They consist of a durable heating cable pre-attached to a rollable mesh, simplifying installation. The multiple sizes (2x50', 2x30', 2x20', 2x15') ensure optimal coverage for the 259 sq. ft. patio. |
Value Snow Melt Control | This is the intelligent controller for the system. It features an aerial-mounted sensor that automatically detects both moisture and temperature. This ensures the system only activates when necessary—when it's cold enough and snowing—maximizing energy efficiency and providing hands-free snow removal. |
Medium Relay Panel | Given the large size and high amperage (47A) of this system, a relay panel was required to safely manage and distribute power to the multiple heating mats. It acts as an electrical interface between the heating mats and the primary snow melt controller. |
