Spa-Like Warmth: Transforming a Carmel, IN Master Bathroom with Radiant Heat

This project in Carmel, Indiana, transformed a standard 162 sq. ft. master bathroom into a warm, spa-like retreat by installing an efficient electric underfloor heating system.

CARMEL, IN
Remodeled Bathroom with electric floor heating mince kitchen and bath
Size: 162 sq.ft. Voltage: 120V Wattage: 1677 W Amps: 14 A Flooring: Tile, Marble or Stone Cost/hr *: $0.25

This project in Carmel, Indiana, transformed a 162 sq. ft. master bathroom from a room with chilly floors into a warm, spa-like retreat. By installing a WarmlyYours electric radiant floor heating system, the homeowners achieved consistent, luxurious warmth underfoot, adding significant comfort and value to their new space.


Project Details

  • Location: Carmel, Indiana
  • Heated Space Type: Master Bathroom
  • Square Footage: 111 sq. ft.
  • Watts, Volts, Amps: 1677W, 120V, 14A
  • Operating Cost: $0.25/hour → ~$2.00/day → ~$60/month
  • Products Used: TempZone™ Flex Roll, nSpire Touch Thermostat
  • Project Title: Master Suite Radiant Heat Installation for Carmel, IN

Carmel Bathroom Transformation

The homeowners were designing their dream master suite with the help of Mince Kitchen and Bath Design. While the planned stone and tile flooring was beautiful, they knew it would be uncomfortably cold, especially on chilly Indiana mornings. They wanted a solution that would provide luxurious, spa-like comfort without forcing them to compromise on their elegant design choices.

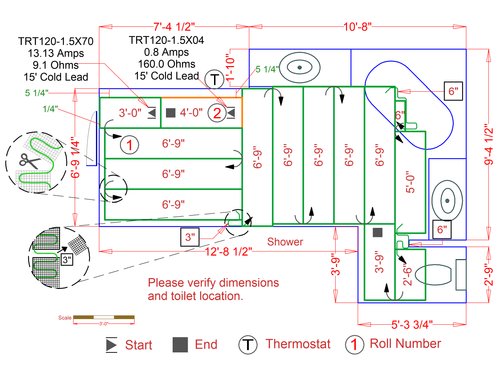

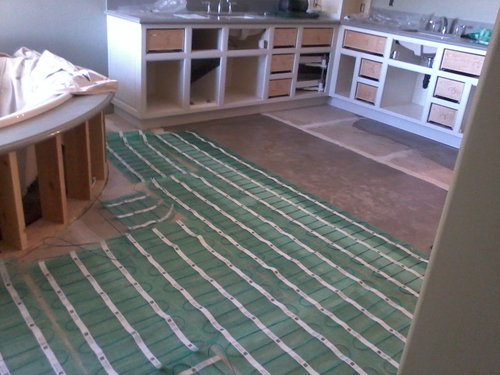

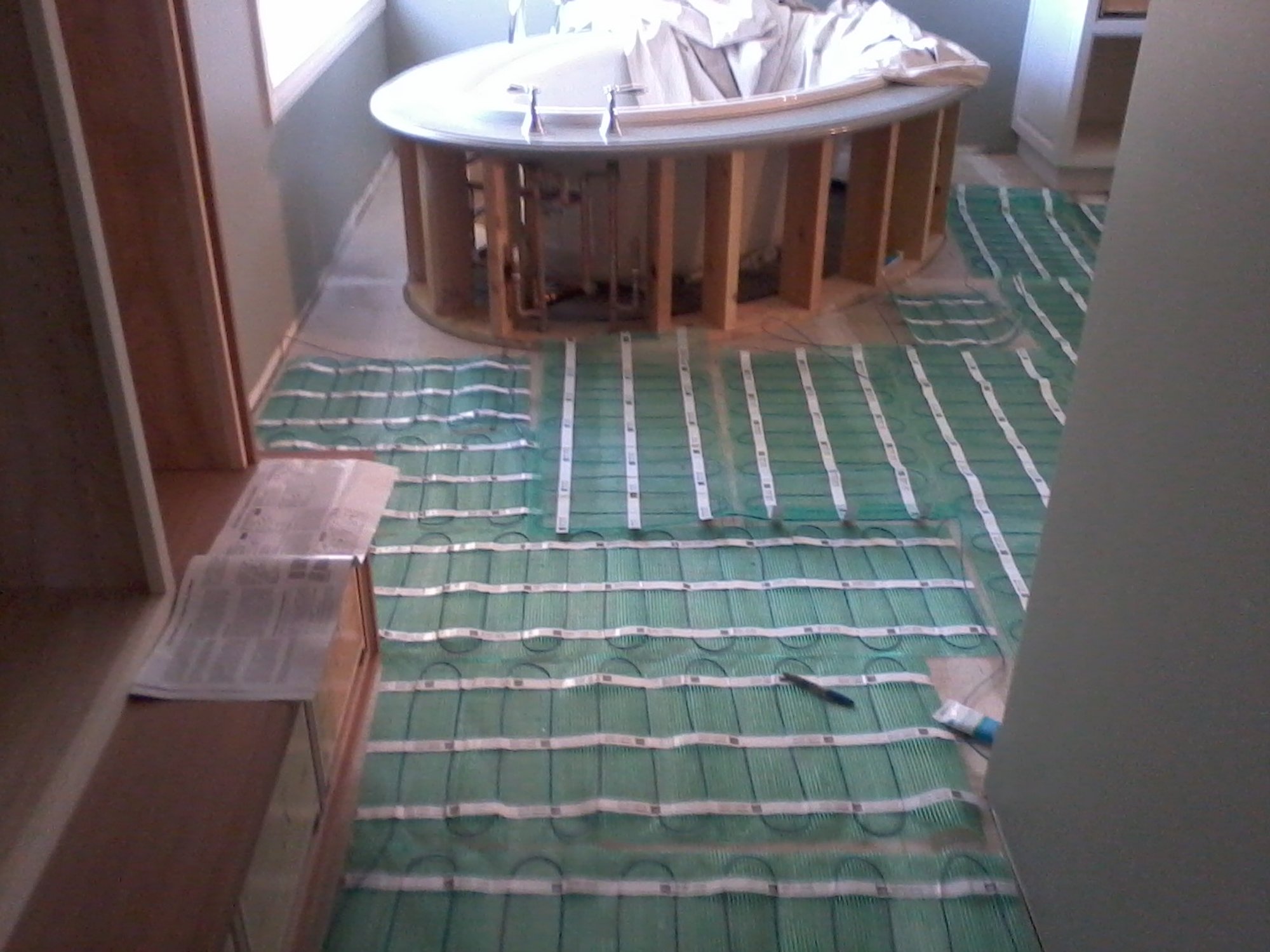

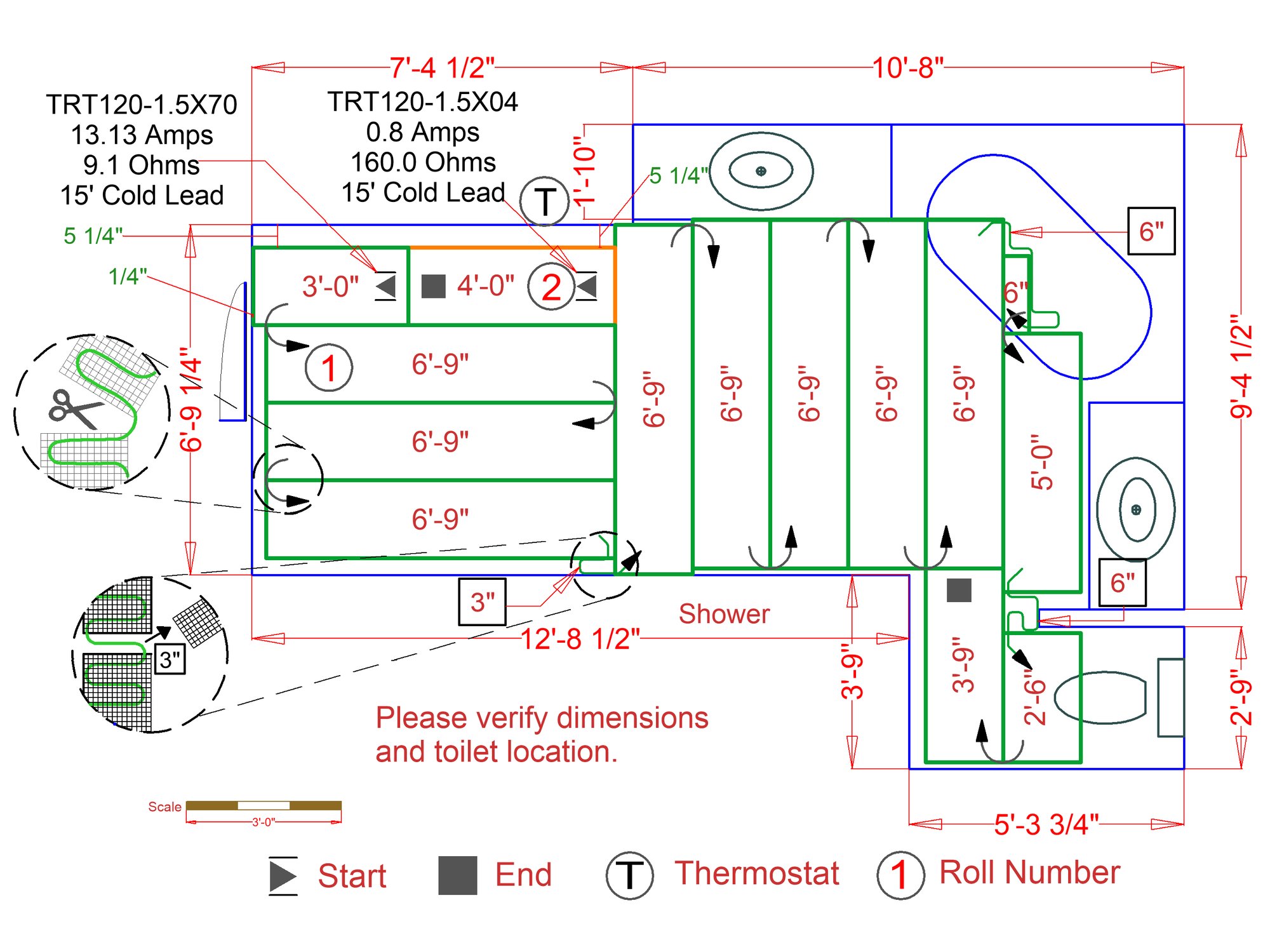

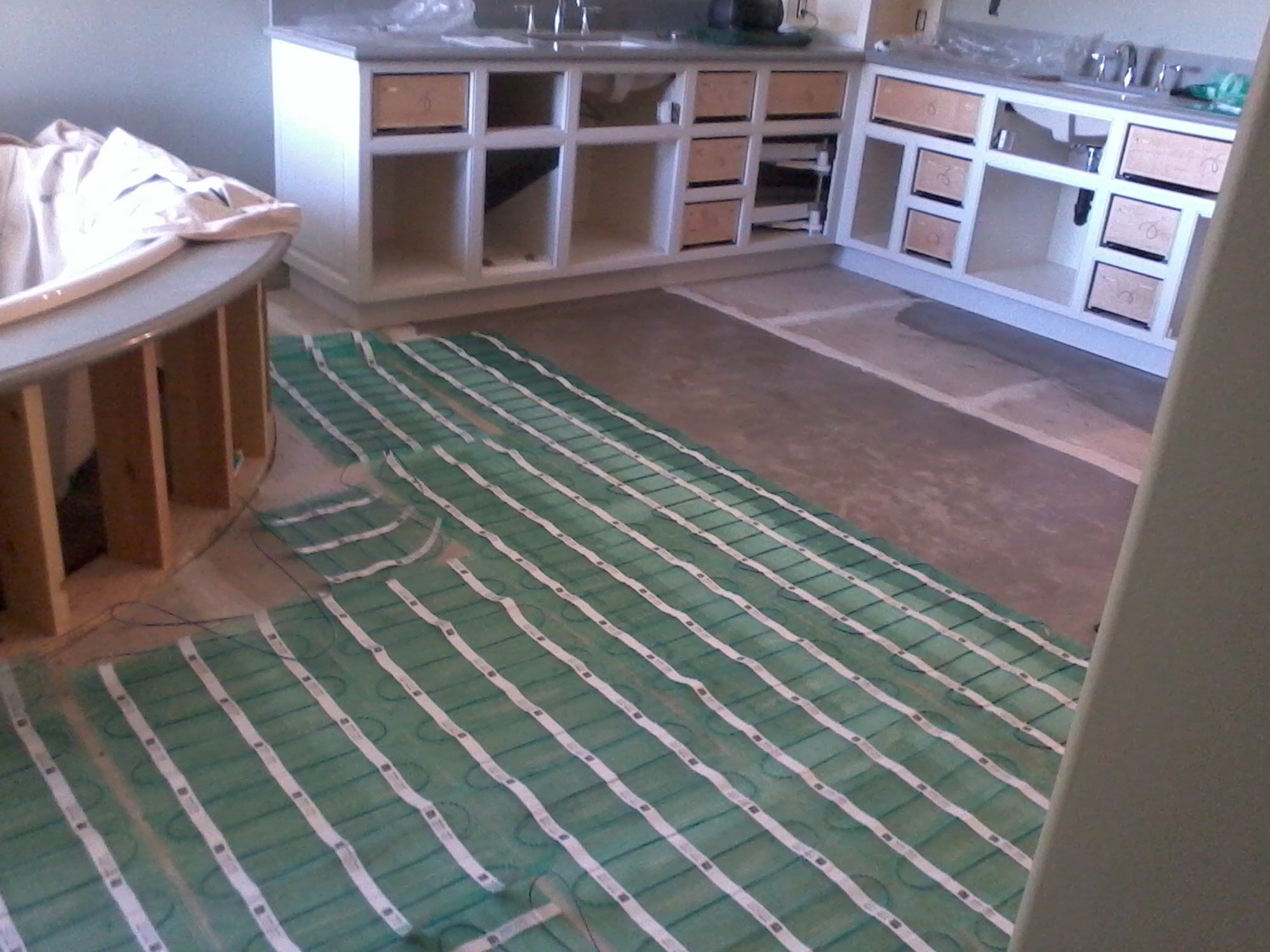

Mince Kitchen and Bath Design selected a WarmlyYours electric floor warming system to deliver the perfect solution. They installed 111 sq. ft. of our TempZone™ Flex Roll, which is specifically designed for quick and easy installation under tile and stone floors. The rolls were laid out to cover the most-used areas of the bathroom, ensuring consistent warmth from the moment the homeowners step out of the shower to the time they spend at the vanity.

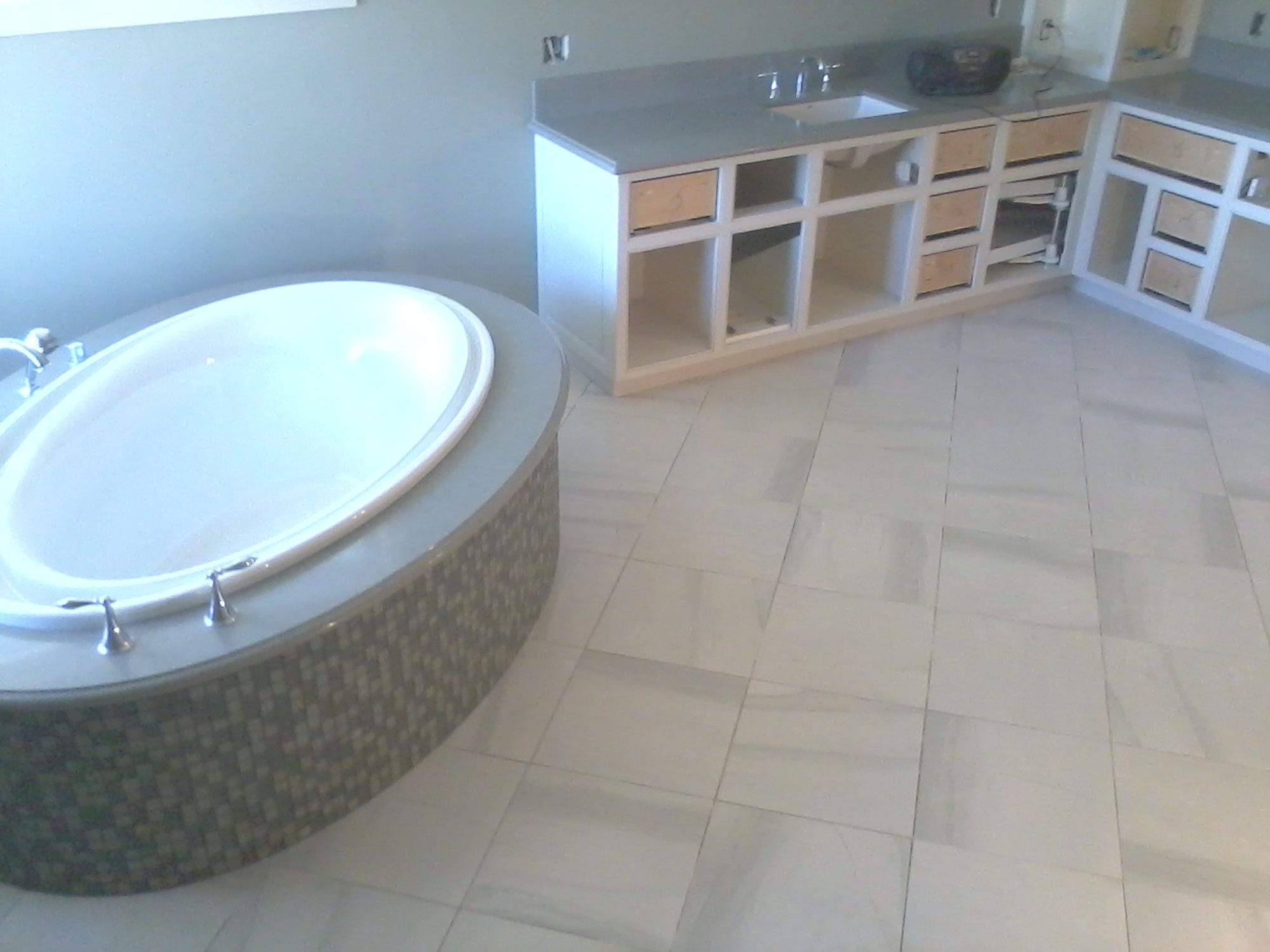

The result is a master bathroom that has been completely transformed into a cozy, personal retreat. The in-floor heating system provides silent, even warmth that radiates upwards, creating an unparalleled level of comfort. The sleek nSpire Touch programmable thermostat allows for effortless control and scheduling, maximizing both comfort and energy efficiency for the homeowners.


Featured Products

  • TempZone™ Flex Roll: This is our most popular electric floor heating product, and for good reason. The roll format, with the heating cable already attached to a mesh backing, allows for fast and simple installation. It's a favorite among installers for covering large, regularly shaped areas under tile, stone, and marble floors.
  • nSpire Touch Thermostat: This programmable thermostat combines functionality with style. It features a user-friendly 3.5” touchscreen, energy-use monitoring, and multiple programming options, including a setup wizard. It provides precise temperature control, allowing homeowners to schedule heating times to perfectly match their lifestyle and save energy.

* Enjoying the comfort of this 111 sq. ft. heated floor is incredibly affordable. Based on current electricity rates in Carmel, IN, this system costs just $0.25 per hour to run. That’s approximately $2.00 per day or less than $60 per month to bring the luxury of a spa into your daily routine. (Calculations based on 8 hours of daily operation)

Project Gallery

Frequently Asked Questions


The operating cost for this 111 sq. ft. bathroom system in Carmel, IN, is approximately $0.25 per hour. Costs will always vary based on your room size, how often you run the system, and your local electricity rates, but electric floor heating remains a very affordable luxury.
In many well-insulated bathrooms, a radiant floor warming system can serve as the primary source of heat, providing enough ambient warmth to keep the entire space comfortable. For colder climates or rooms with high heat loss, it's a perfect supplemental heat source that adds a huge boost of comfort.
The TempZone™ system is perfectly designed for use under tile, marble, and natural stone. These materials are excellent thermal conductors, meaning they efficiently transfer warmth from the heating elements to the floor surface and into the room, creating that perfect heated floor experience.
Yes, it is highly efficient. Radiant heating warms people and objects in a room directly from the floor up, which prevents the heat loss associated with forced-air systems that blow hot air around. When paired with a programmable thermostat, you can schedule heating for specific times (like mornings), which further reduces energy consumption and saves you money.
