This homeowner in Chicago, IL, sought to eliminate the perpetual chill radiating from their concrete slab subfloor beneath the bedroom carpet, turning a cold, unwelcoming space into a sanctuary of warmth. WarmlyYours solved this challenge by custom-designing an Environ™ Flex Roll system specifically suited for installation beneath carpeted floors. This high-efficiency, low-profile radiant floor warming solution now provides comfortable, quiet, and consistent warmth across 188 sq. ft., adding significant value and luxury to the master suite.
Project Details
- Location: Chicago, IL
- Heated Space Type: Bedroom
- Square Footage: 188 sq. ft.
- Watts, Volts, Amps: 2,250 W, 240 V, 10 A
- **Operating Cost Per Hour***: $0.34 per hour
- $2.72 per day (8 hours of operation)
- $81.60 per month (8 hours/day)
- Products Used: Environ Flex Roll, nSpire Touch Thermostat
Project Information
The primary challenge in this Chicago home was overcoming the cold transfer from the existing concrete slab beneath the carpet. Concrete is an excellent thermal mass, but without heating, it acts like a heat sink, drawing warmth away and leaving the bedroom floor persistently cold—a major discomfort, especially during the long Chicago winters.

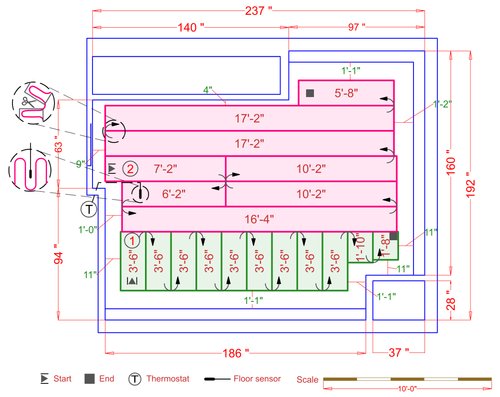

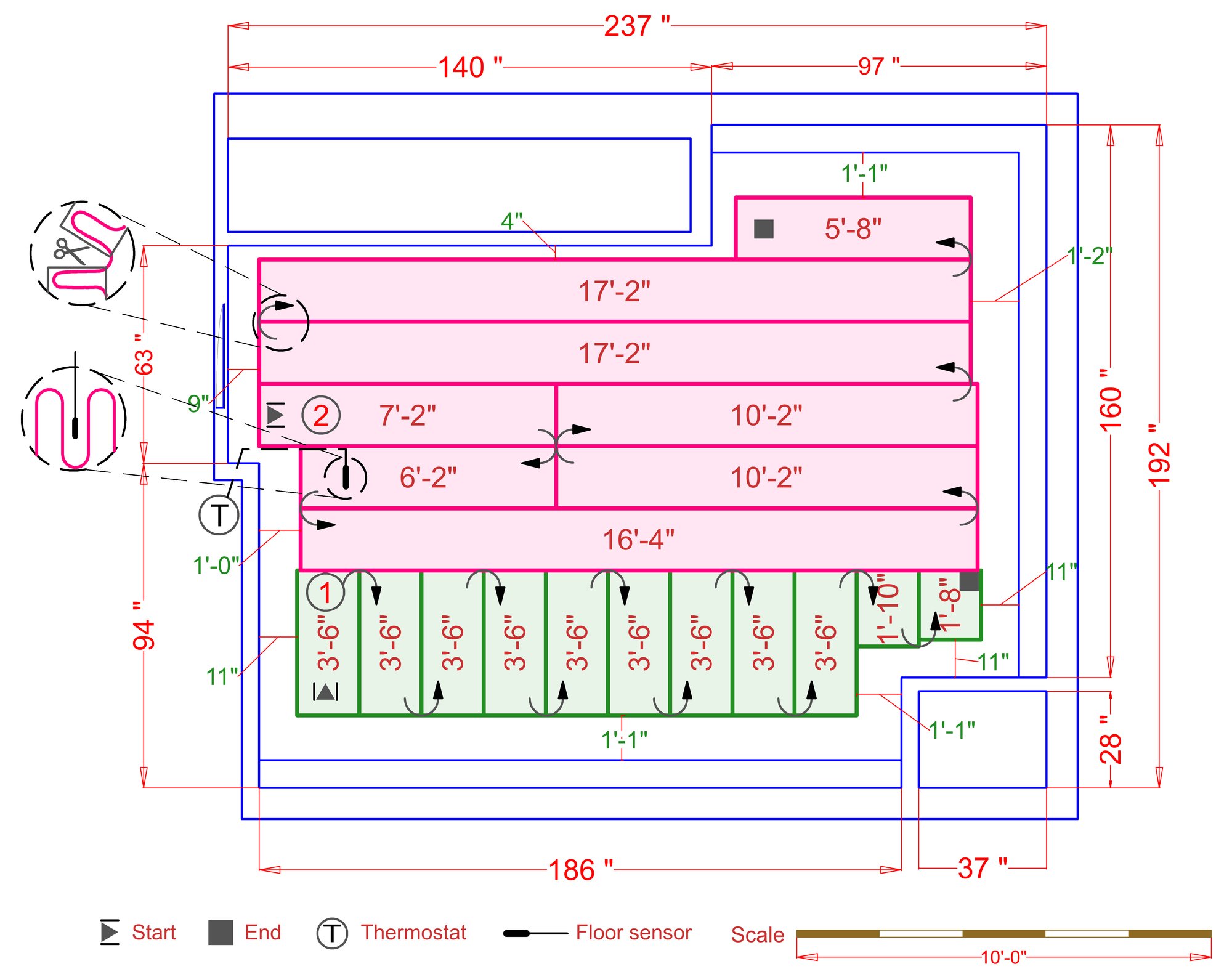

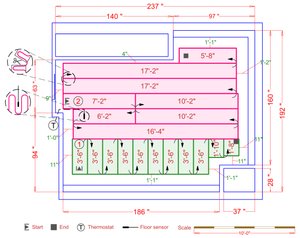

The homeowner required a solution that was safe, effective, and compatible with stretch-in carpeting, which ruled out many traditional heating systems. WarmlyYours recommended the Environ™ Flex Roll, a specialized, low-wattage system perfect for floating floors and installations beneath carpet or laminate. The system was designed to cover 188 sq. ft. of the bedroom floor, effectively creating a massive, evenly heated surface.

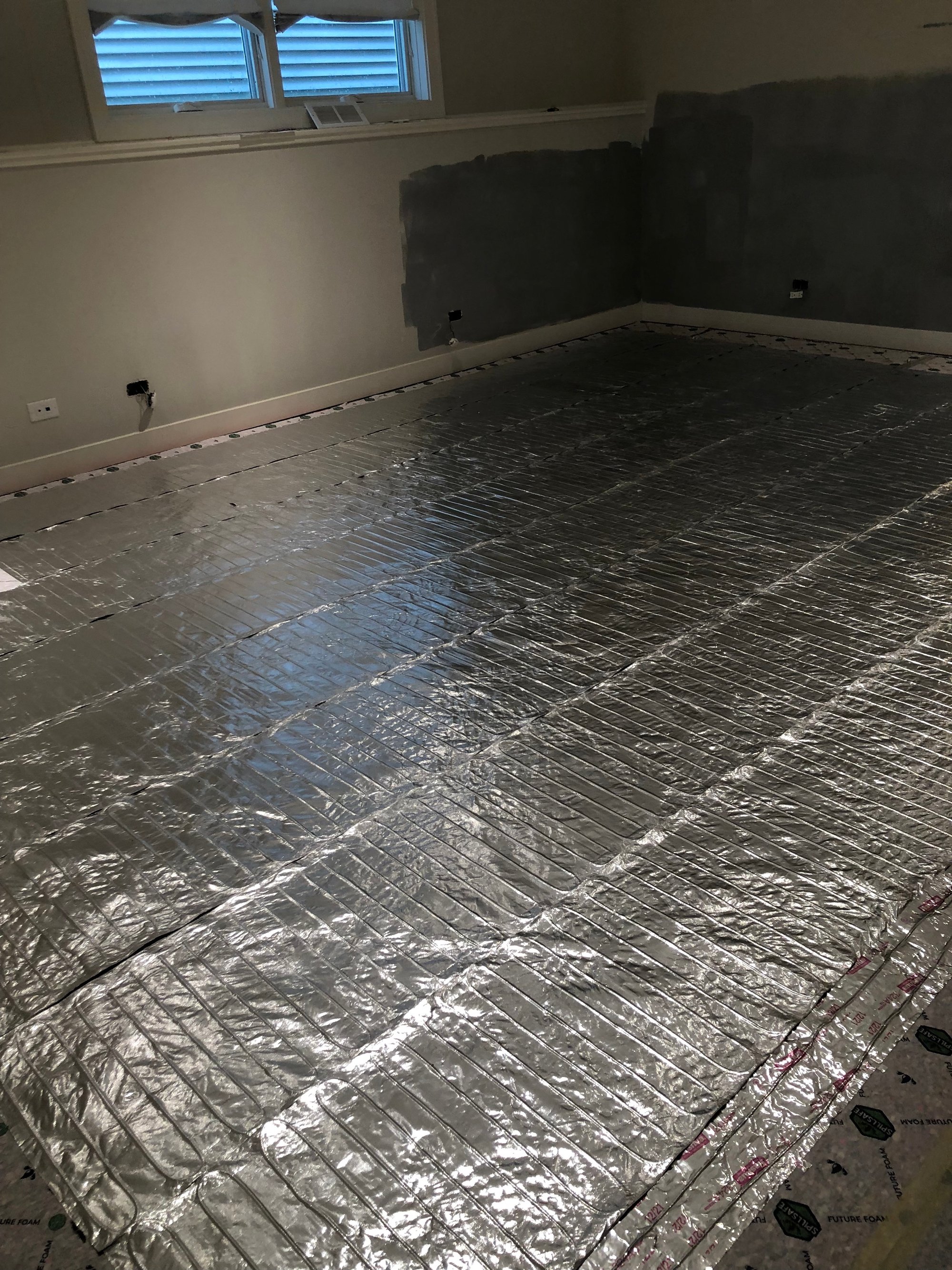

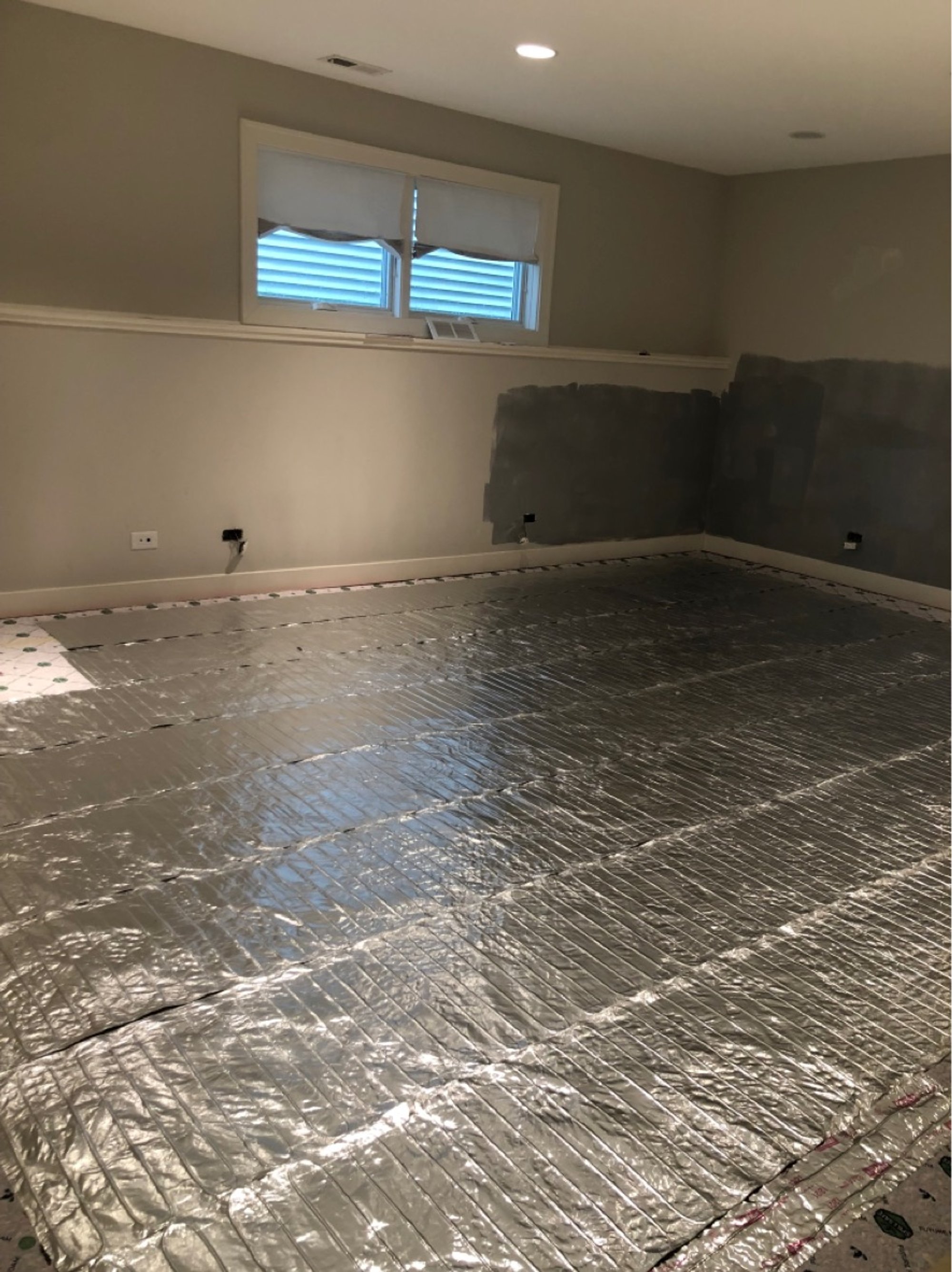

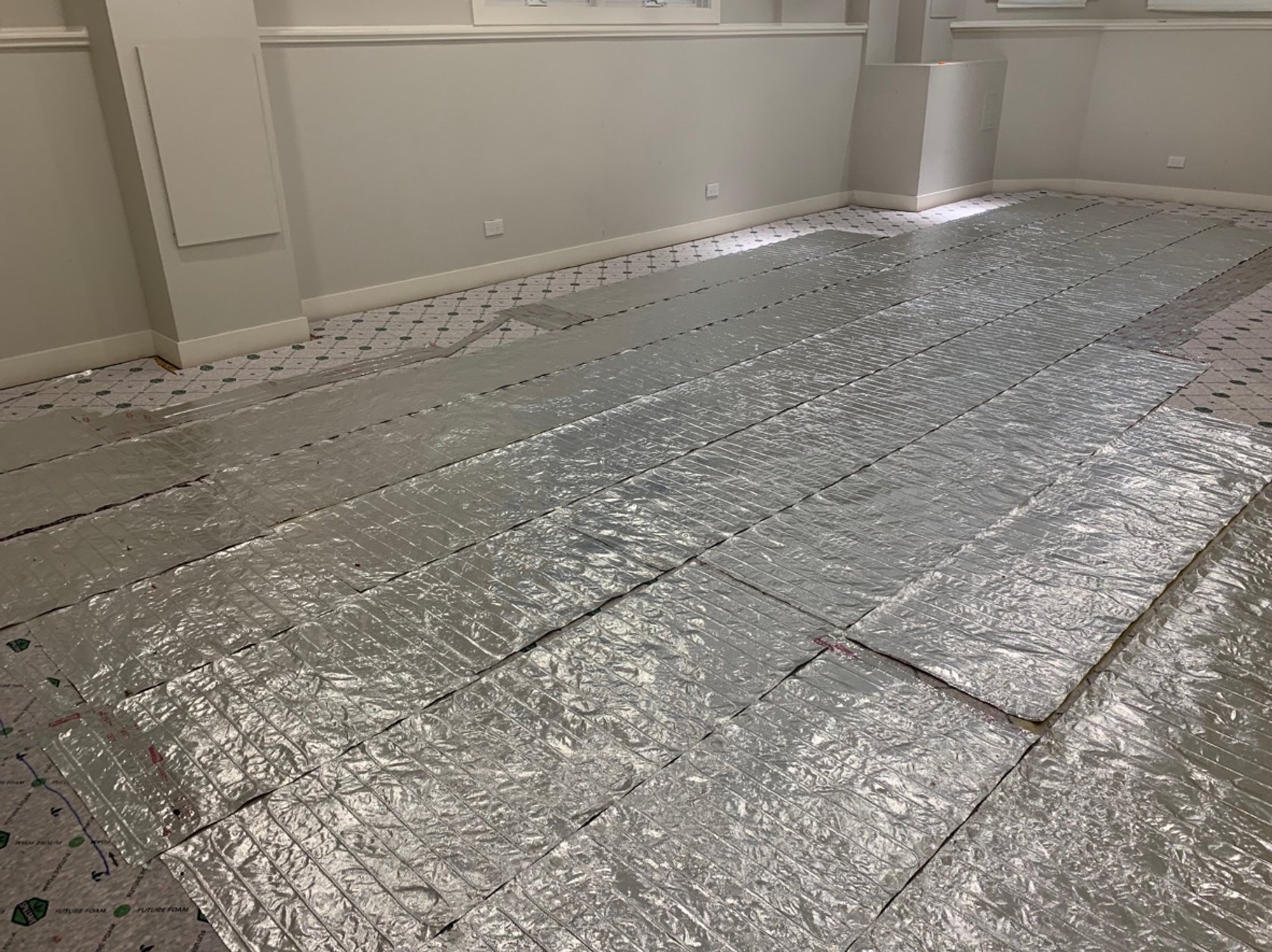

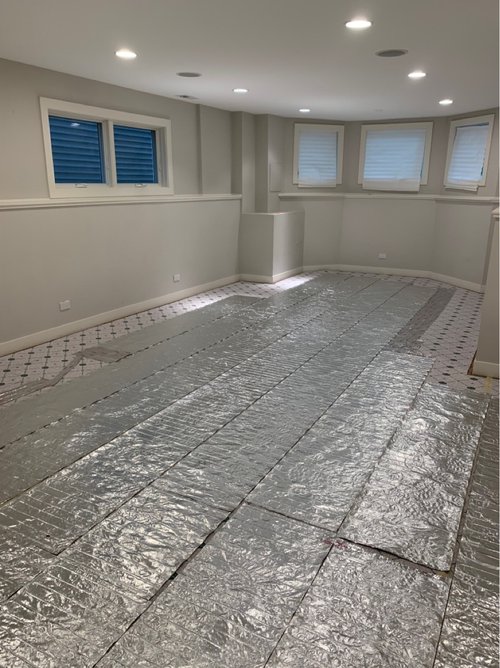

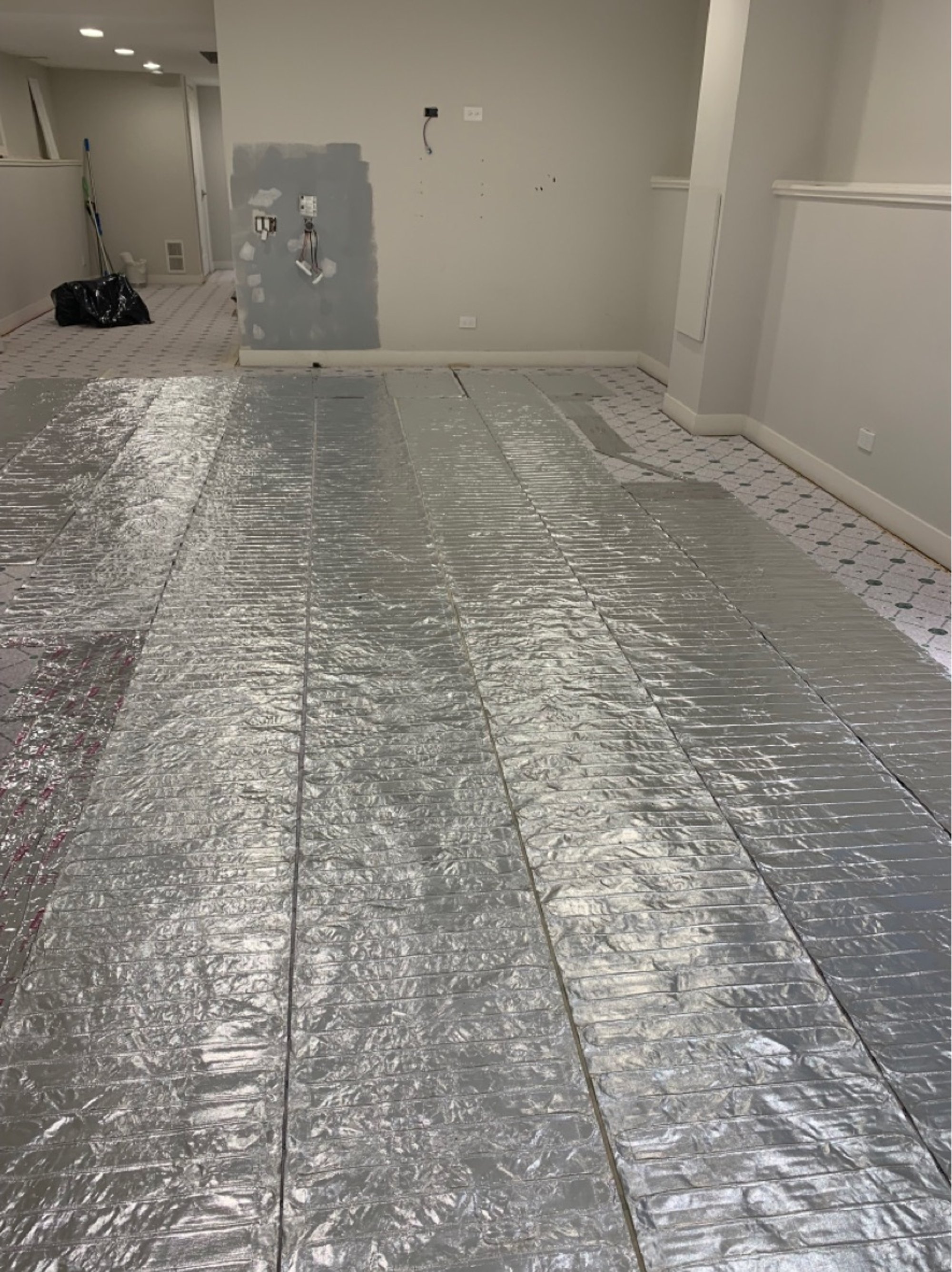

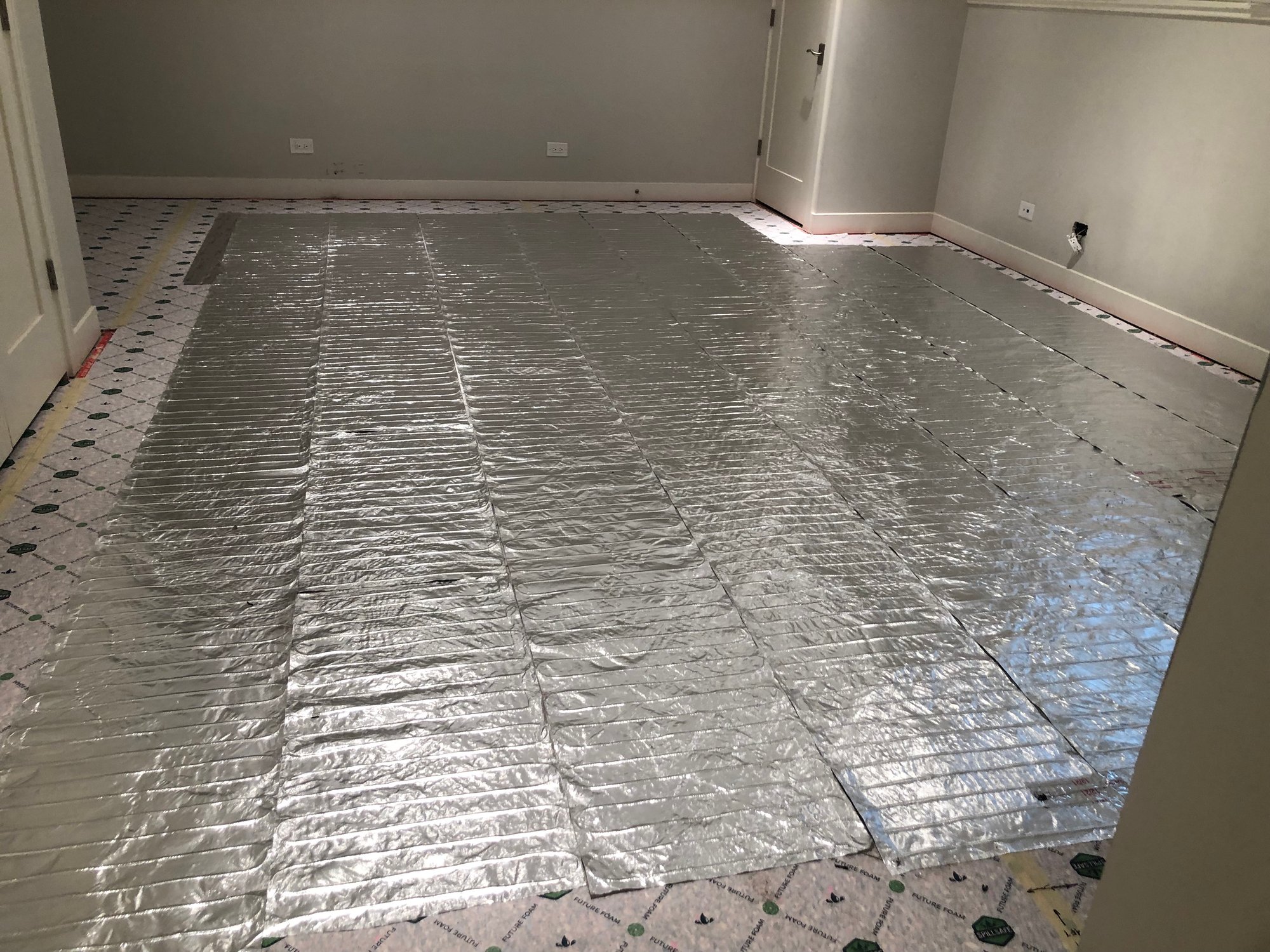

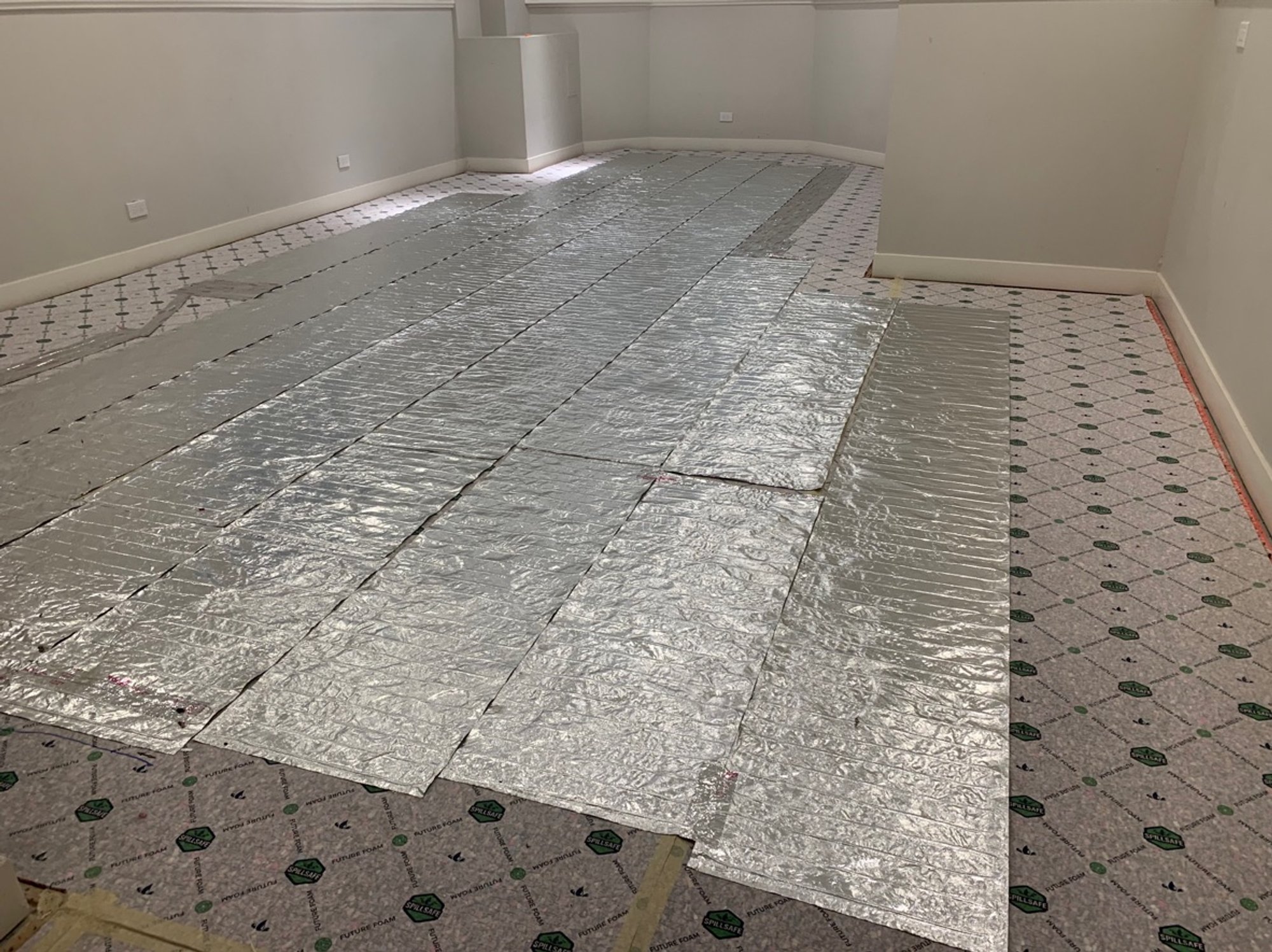

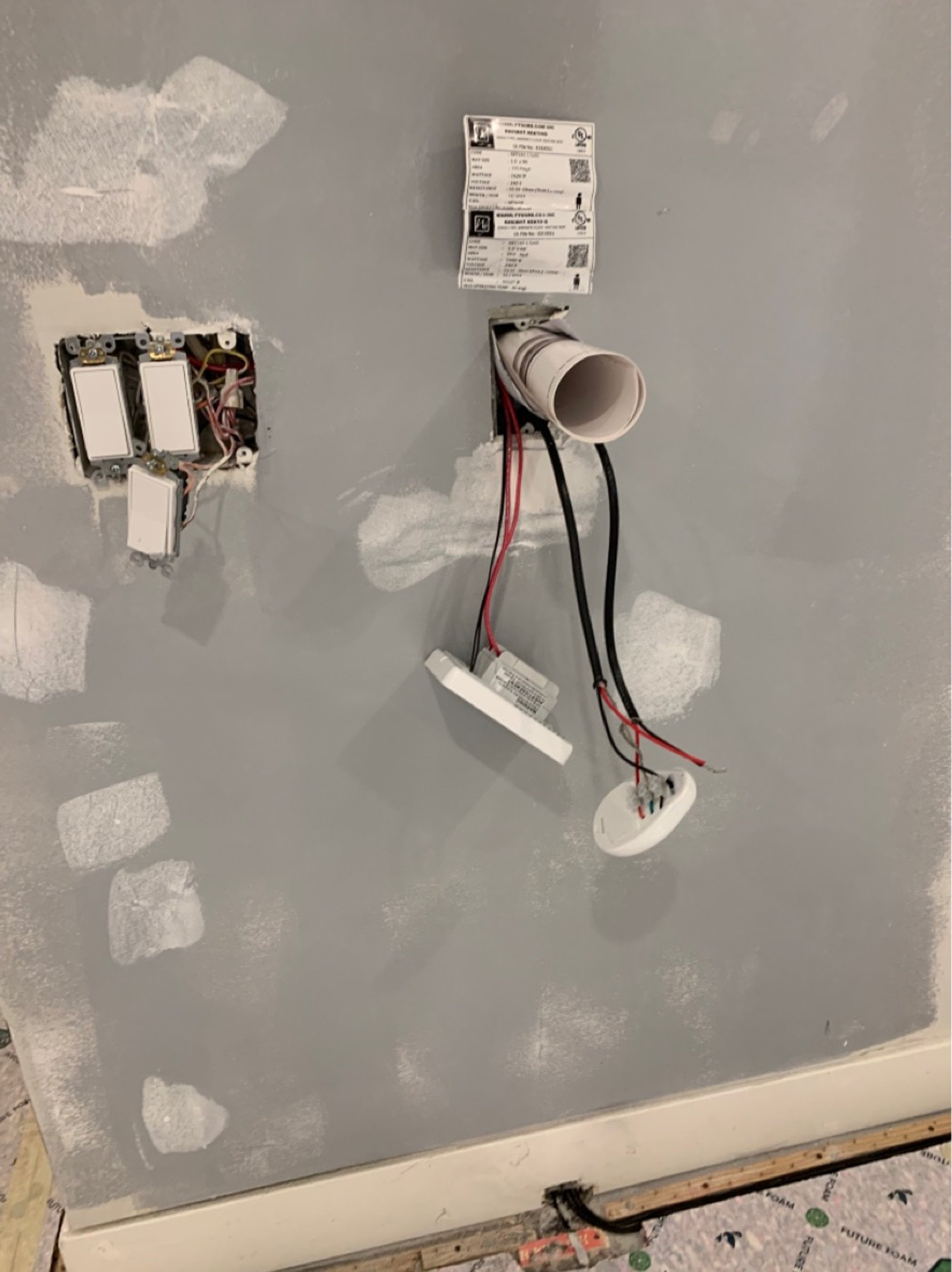

Installation was straightforward, involving laying the uncoupling membrane (not explicitly listed but required for concrete/carpet installs) and then placing the self-adhering Environ™ Flex Roll mats directly over the heated area, followed by the carpet underlayment and carpet. The result is a quiet, reliable, and energy efficient heating upgrade. The system is controlled by the programmable nSpire Touch Thermostat, allowing the homeowner to set precise schedules and temperatures for maximum comfort and minimal energy consumption. This installation successfully transformed the bedroom into a true retreat.
Featured Products Section
Environ™ Flex Roll The Environ™ Flex Roll is an ultra-thin, low-profile electric radiant heating mat designed for installation under floating floors like engineered wood, laminate, or, as in this case, stretch-in carpeting. It provides gentle, uniform heat, and its self-adhering mesh backing makes installation fast and simple.
nSpire Touch Thermostat The cornerstone of any energy-efficient heating system, the nSpire Touch provides a customizable, programmable user experience. It features a 3.5 in. color touchscreen, includes a built-in Class A GFCI safety mechanism, and ensures the floor is heated exactly when needed, maximizing comfort while minimizing operating cost.
