100’ Roof and Gutter Deicing Self-Regulating Heating Cable, 5W/ft., 120V


Part Number: ET-SR-120-05-0100
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (4)

publication
Publications and Manuals (18)

specifications
Specifications (18)

Videos (6)

Articles (6)

Related Items (19)

Similar Items (10)

Create a new Support Request

Shop Now

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options

As the names imply, constant wattage cable uses fixed wattage output per linear foot and does not automatically adjust in response to temperature changes. Self-regulating cable is manufactured with a resistance matrix placed between its 2 buss wires that varies the ohms resistance per linear foot to automatically adjust in response to temperature changes. Learn more about this in our blog Self-Regulating vs. Constant Wattage Heating Cables.

Need more help? View support options

Self Regulating cable is not designed for snow load removal. It is designed for deicing in scuppers, roof overhangs, gutters, downspouts, trench drains, etc.

Need more help? View support options

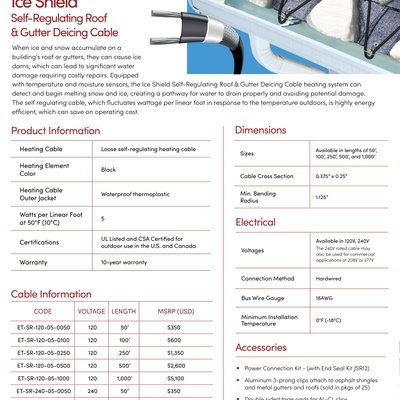

Publications and Manuals



Specifications


Electrical

Amps 4.17 A
Benefits Can be cut-to-length & overlapped
Cable Type Self Regulating
Connection Method Hardwired
Voltage 120 VAC
Watts Per Ft. 4-10 watts per linear ft.
Watts Per Ft. at 50°F/10°C 5 W

Warranty / Certifications

Approvals cULus & cCSAus Listed
Warranty 10 years

Product Dimensions

Cable Cross Section 3/8" x 1/4"
Length 100 ft

Construction

Cable Jacket Waterproof thermoplastic

Installation

Maximum Intermittent Exposure Temperature, 1000 Hours (Power On or Off) 185ºF / 85ºC
Maximum Maintain or Continuous Exposure Temperature (Power On) 149ºF / 65ºC
Minimum Bend Radius 1.125″ / 28.6mm
Minimum Installation Temperature 0°F / -18°C

Identifiers

SKU ET-SR-120-05-0100
UPC (GTIN-12) 881308068004
