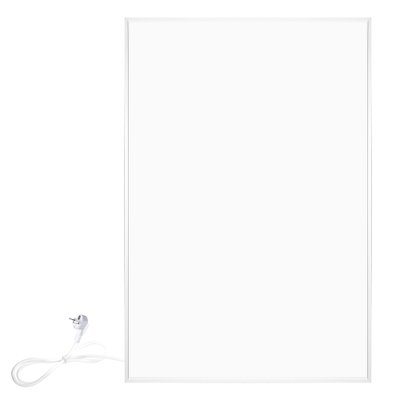

Ember Flex Radiant Heater - Wall/Ceiling Mounted - White - 60x90cm - 450W
Part Number: IPE-EMF-WWC-6090-450
This support page provides publications, manuals, specifications, videos, and support articles
This support page provides publications, manuals, specifications, videos, and support articles
Publications and Manuals (0)
Specifications (26)
Videos (3)
Articles (3)
Related Items (4)
Similar Items (32)
Create a new Support Request
Publications and Manuals
Specifications
Electrical
| Amps | 1.96 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 1.9 m |
| Ohms | 117.56 Ω |
| On/Off Switch | No |
| Plug-Type | CEE 7/7 |
| Thermal Power | 0.45 kW |
| Voltage | 230 V |
| Watts | 450 W |
Warranty / Certifications
| Approvals | CE, TUV/GS |
| Ingress Protection (IPxx) Rating | IP65 |
| Warranty | 4 years |
Performance
| BTU Per Hour | 1535 Btu |
| Heating Area | 6 m² |
| Surface Safety Limit | 125 °C |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Depth | 0.98″ |
| Height | 90 cm |
| Size | 60cm x 90cm |
| Weight | 7 lbs |
| Width | 60 cm |
Appearance
| Finish | White |
Installation
| Mounting Locations | Wall or Ceiling Mounted |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IPE-EMF-WWC-6090-450 |
| UPC (GTIN-12) | 881308075927 |
