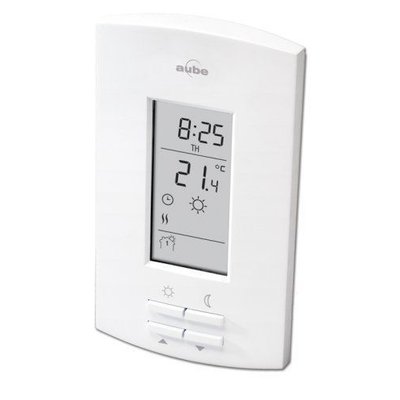

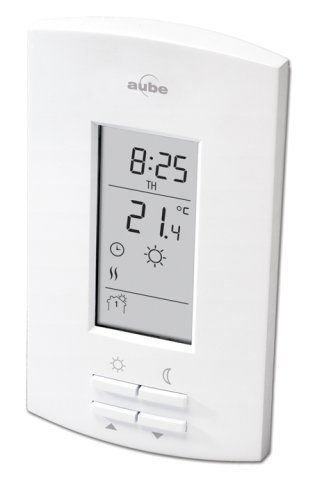

Thermostat 120V

Part Number: TH111-P-120-10
This support page provides publications, manuals, specifications, support articles, and common support questions

Common Support Questions (2)

Publications and Manuals (2)

Specifications (9)

Articles (1)

Related Items (1)

Create a new Support Request

Common Support Questions

All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".

Need more help? View support options

If your thermostat is blank, the first thing to do is to test to see if voltage is present at the rear of the thermostat. If no power is reaching the thermostat, please inspect the circuit breaker powering the thermostat in the breaker panel, and verify that the breaker is a non-GFCI type. If it is a GFCI breaker, replace it with a non-GFCI breaker. If there is power entering the thermostat and it is blank, it will need to be replaced.

Need more help? View support options

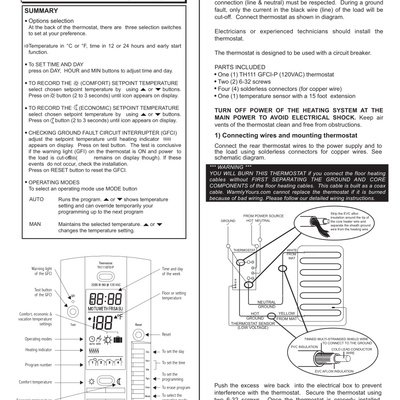

Publications and Manuals



Connection Method Hardwired
Voltage 120 VAC

Product Dimensions

Depth 2 in
Installed Depth 0.75 in
Length 0.1″
Weight 1 lbs
Width 0.1″


SKU TH111-P-120-10

Warranty / Certifications

Warranty Limited 3-year warranty and lifetime technical support


Speak to a radiant heating expert

Can’t find what you’re looking for? Create a Support Request
