TempZone Flex Roll Kit 1.5 x 36 ft (54 sqft) with nTrust 2.0 Touch Nonprogrammable Thermostat, 240V, 3.38A




Request a Free Product Sample
Support Page

TempZone Flex Roll Kits with nTrust 2.0 LED Touch Thermostat Description

Specifications

Electrical (TRT240-1.5x36)

Amps 3.38 A
Cold Lead Wire Gauge 17 AWG
Floor Load 0.81 kW
Ohms 71.11 Ω
Ohms Per Ft 0.339 Ohm/ft
Thermal Power 0.81 kW
VOP 65
Voltage 240 V
Watts 810 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications (TRT240-1.5x36)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Warranty / Certifications (UTN5-4999)

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Performance (TRT240-1.5x36)

BTU Per Hour 2764 Btu

Electrical (UTN5-4999)

Battery 5 year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Product Dimensions (TRT240-1.5x36)

Cold Lead Length 15′
Coverage 54 ft²
Heating Cable Length 209.88′
Heating Element Thickness 1/8″
Length 36′
Weight 5.9 lbs
Width 1′ 6″

Appearance (TRT240-1.5x36)

Color Green

Appearance (UTN5-4999)

Color White Acrylic
Display LED Light Through

Product Dimensions (UTN5-4999)

Depth 1.73″
Installed Depth 0.46″
Length 4.98″
Weight 0.6 lbs
Width 3.09″

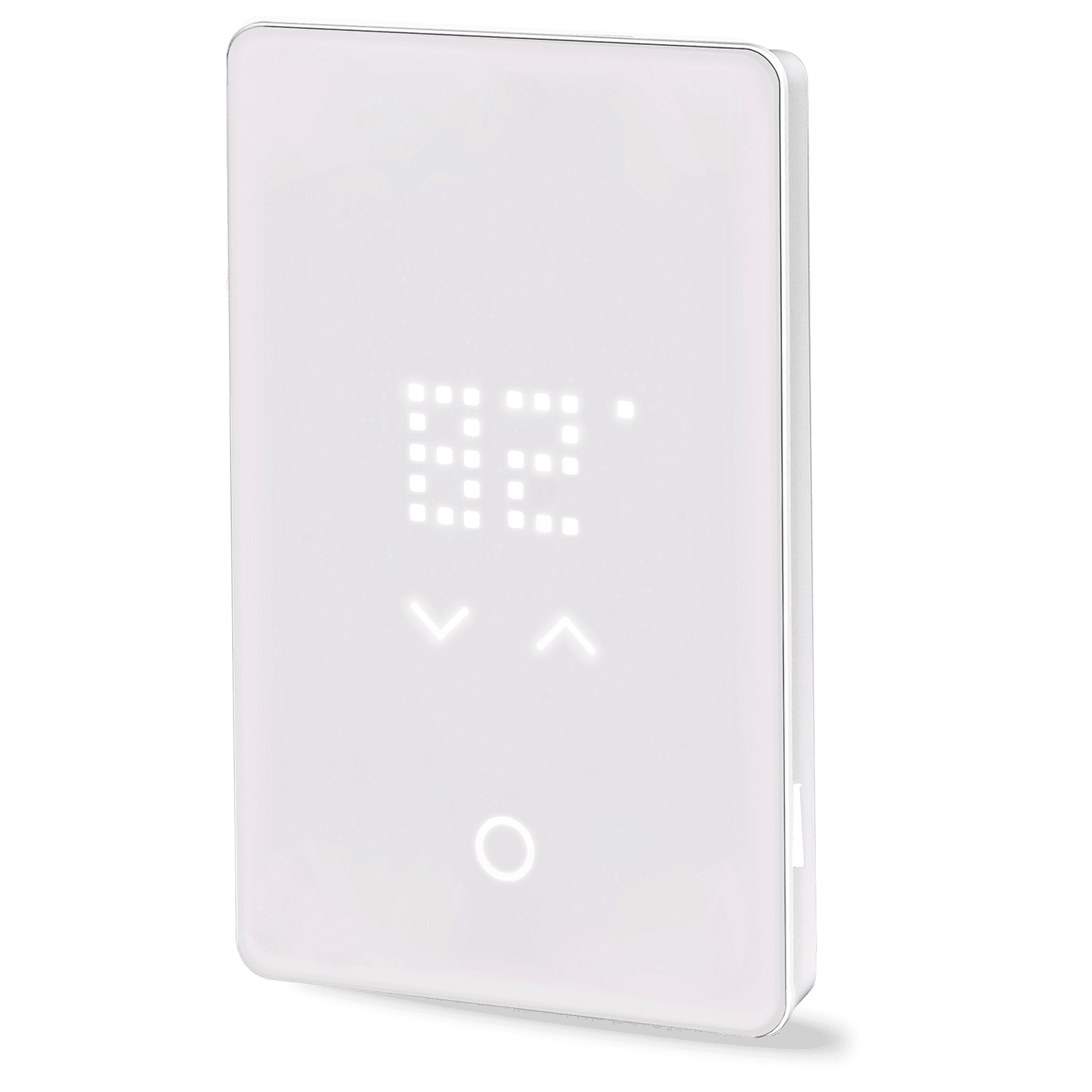

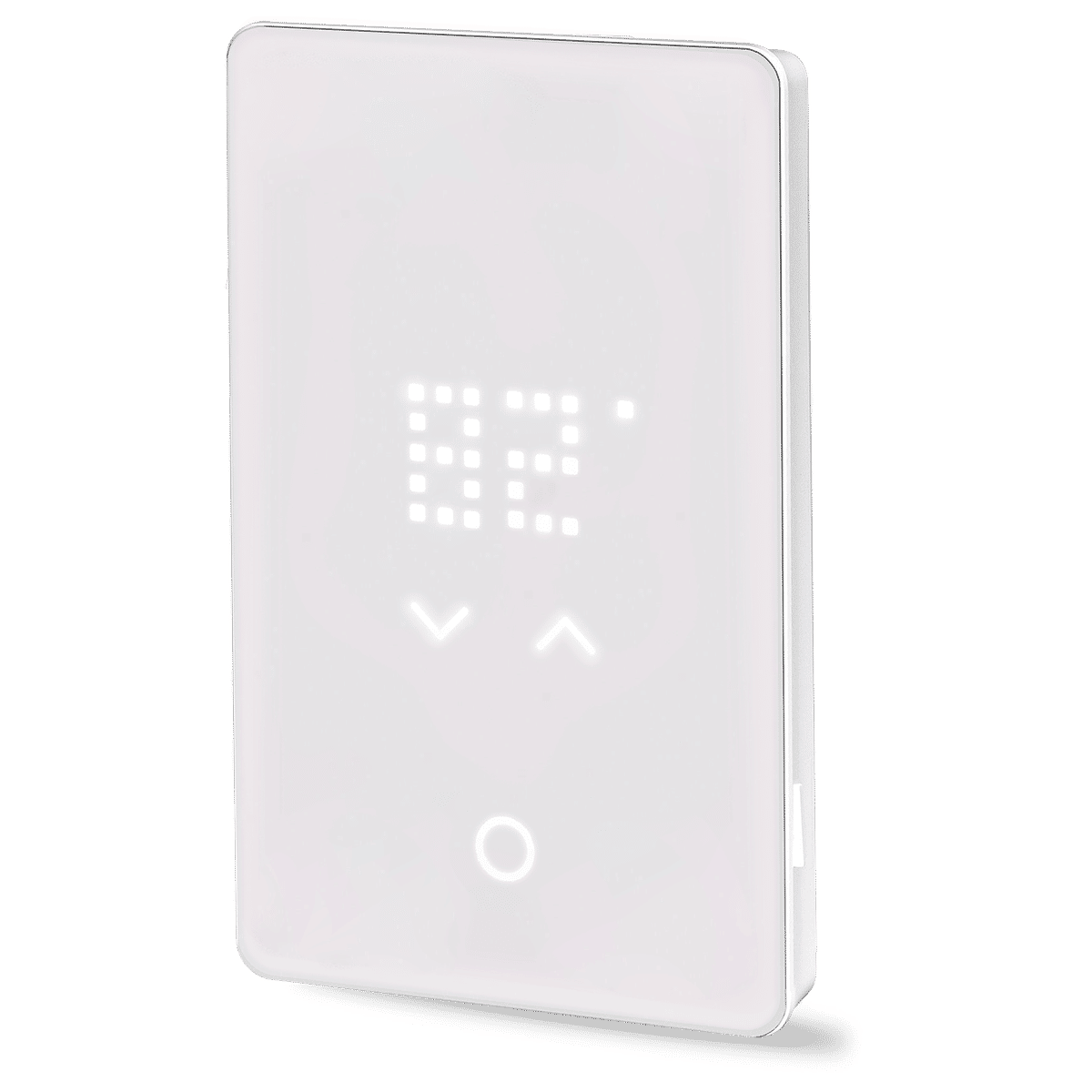

Thermostat (UTN5-4999)

Floor Sensor Compatibility 10k ohms or 12k ohms
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F

Installation (TRT240-1.5x36)

Floor Types Commonly installed beneath tile and stone

Logistics (TRT240-1.5x36)

Package Contents (1) TempZone Flex Roll 240V 1.5′ x 36′ 54 sq ft 3.4A (TRT240-1.5x36); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers (TRT240-1.5x36)

SKU TRT240-1.5x36
UPC (GTIN-12) 881308021481

Identifiers (UTN5-4999)

SKU UTN5-4999
UPC (GTIN-12) 881308080426
