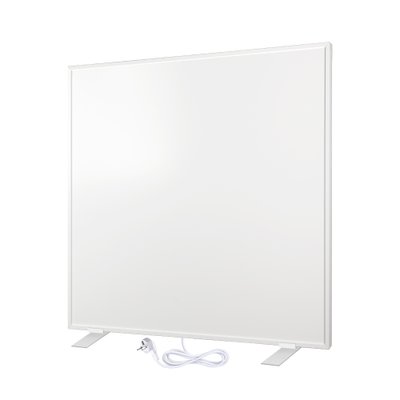

Ember Flex Radiant Heater - Free Standing - White - 60x60cm - 400W
Part Number: IPE-EMF-WFS-6060-400
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (1)
Publications and Manuals (0)
Specifications (25)
Videos (1)
Articles (3)
Related Items (4)
Similar Items (31)
Create a new Support Request
Common Support Questions
Can the Flex IR FAR Radiant panel be used in a Sauna?
There are dry, and there are wet sauna's. Local code will dictate where it can be installed, a licensed electrician should be consulted for installations in any wet room. Further, a Flex radiant panel must be completely dry when it is first powered on. Note that the surface may reach 250°F/121°C
Need more help? View support options
Publications and Manuals
Specifications
Electrical
| Amps | 1.74 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 1.9 m |
| Ohms | 132.25 Ω |
| On/Off Switch | No |
| Plug-Type | CEE 7/7 |
| Thermal Power | 0.4 kW |
| Voltage | 230 V |
Warranty / Certifications
| Approvals | CE, TUV/GS |
| Ingress Protection (IPxx) Rating | IP65 |
| Warranty | 4 years |
Performance
| BTU Per Hour | 1365 Btu |
| Heating Area | 5 m² |
| Heating Method 1 | Infrared |
| Surface Safety Limit | 125 °C |
Product Dimensions
| Depth | 0.98″ |
| Height | 23.62″ |
| Size | 60cm x 60cm |
| Weight | 20.9 lbs |
| Width | 23.62″ |
Appearance
| Finish | White |
Installation
| Mounting Locations | Free Standing |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IPE-EMF-WFS-6060-400 |
| UPC (GTIN-12) | 881308075842 |
