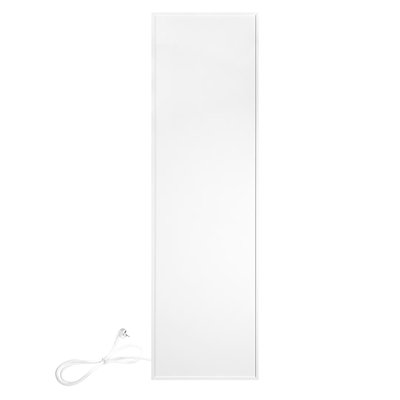

Ember Flex Radiant Heater - Wall Mounted - White - 30x120cm - 400W
Part Number: IPE-EMF-WW-30120-400
This support page provides publications, manuals, specifications, videos, and support articles
This support page provides publications, manuals, specifications, videos, and support articles
Publications and Manuals (0)
Specifications (26)
Videos (1)
Articles (3)
Related Items (1)
Similar Items (32)
Create a new Support Request
Publications and Manuals
Specifications
Electrical
| Amps | 1.74 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 1.9 m |
| Ohms | 132.25 Ω |
| On/Off Switch | No |
| Plug-Type | CEE 7/7 |
| Thermal Power | 0.4 kW |
| Voltage | 230 V |
| Watts | 400 W |
Warranty / Certifications
| Approvals | CE, TUV/GS |
| Ingress Protection (IPxx) Rating | IP65 |
| Warranty | 4 years |
Performance
| BTU Per Hour | 1365 Btu |
| Heating Area | 5 m² |
| Surface Safety Limit | 125 °C |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Depth | 0.98″ |
| Height | 120 cm |
| Size | 30cm x 120cm |
| Weight | 7 lbs |
| Width | 30 cm |
Appearance
| Finish | White |
Installation
| Mounting Locations | Wall Mounted |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IPE-EMF-WW-30120-400 |
| UPC (GTIN-12) | 881308075804 |
