TempZone Mat Custom Single 208V - 10.1A - 140.9 sq.ft. - 10 ft. Cold Lead

$2,560
  • 25 Year Warranty
  • 12-15 Watts Per Sq. Ft
Need help? Call our experts at (800) 875-5285
Get an Instant Quote

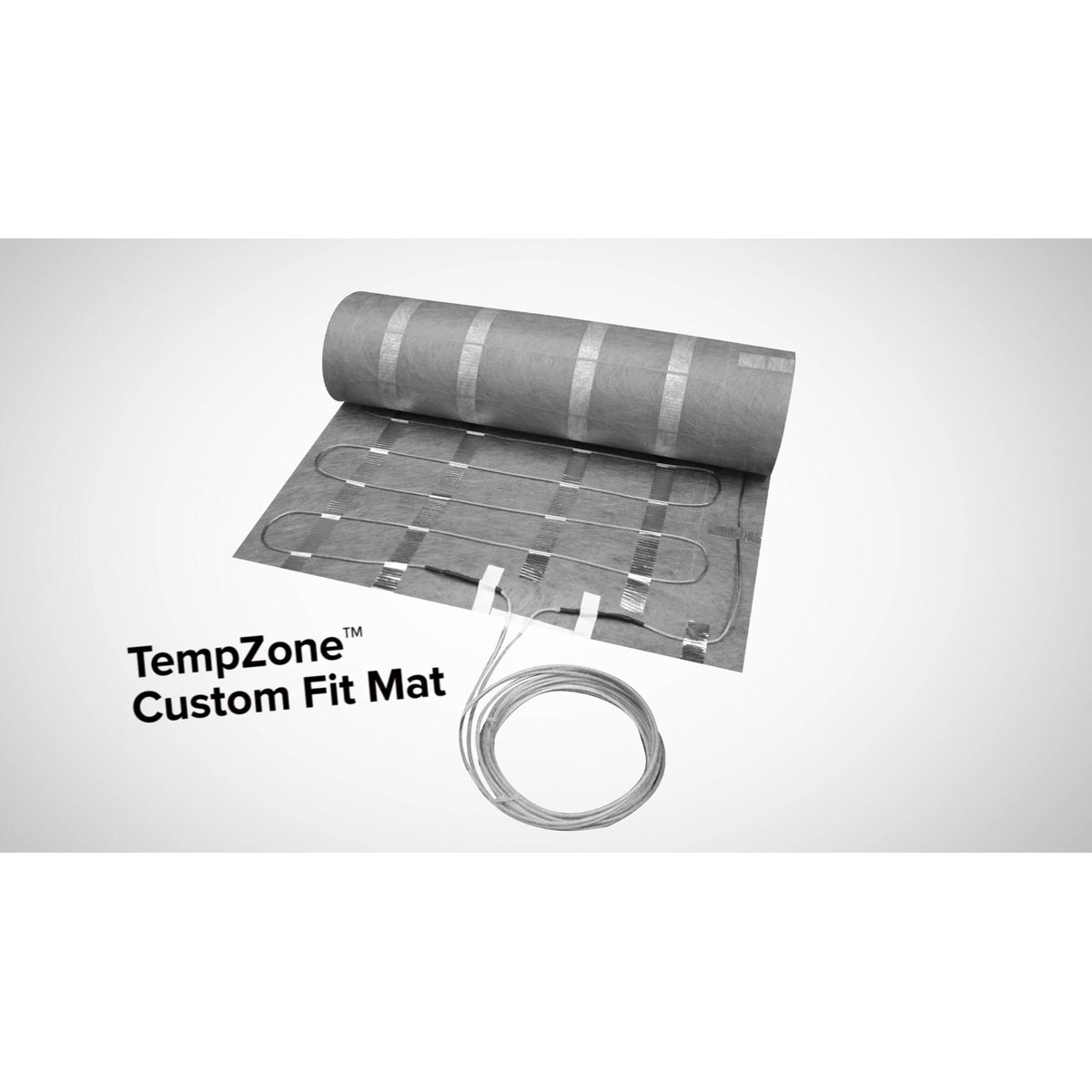

TempZone™ Custom Mats Description

Specifications

Electrical

Amps 10.1 A
Cold Lead Length 120″
Floor Load 2.11 kW
Ohms 20.5941 Ω
Thermal Power 2.11 kW
Voltage 208 V
Watts 2114 W
Watts Per Sq. Ft. 15

Warranty / Certifications

Approvals cETLus
Warranty 25 Year Warranty
Wet Location Listed None

Performance

BTU Per Hour 7213 Btu

Product Dimensions

Coverage 140.9 ft²
Heating Element Thickness 1/8″
Weight 5.94 lbs
Width 146″

Installation

Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more

Logistics

Package Contents (1) TempZone Mat Custom Single 208V - 10.1A - 140.9 sq ft - 10 ft Cold Lead (TMCS208-140.9-CL10-001); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers

SKU TMCS208-140.9-CL10-001
UPC (GTIN-12) 881308084806

Installation Plans

This is a real example of an installation plan that uses this product. If you want to design your own room or have any questions, please contact us.

Installation Plan
Flooring
Tile, Marble or Stone Subfloor
Unconfirmed/Other Voltage
240V Operating Cost
31 cents per hour
Design Your Own Project Get a Free Quote

This Installation Plan Includes:

1 x
TempZone™ Flex Roll 240V 3′ x 43′, 129 sq.ft., 8.1A
1 x
Circuit Check
1 x
nSpire Touch: Touch Thermostat - Programmable, Class A GFCI, w/Floor Sensor
1 x
Electrical Rough-in Kit Single Gang Box with Double Conduits

Frequently Asked Questions

Showing all 5 questions

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

40 people found this helpful Was this helpful? Yes No

Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:

Vacuum Cleaner: 300 mG

Microwave: 200 mG

Portable Heater: 100 mG

Dishwasher: 20 mG

Washing Machine: 20 mG

WarmlyYours TempZone™ (Twin): 1.8 mG

32 people found this helpful Was this helpful? Yes No

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

29 people found this helpful Was this helpful? Yes No

Yes. Unlike the heating cable for electric floor heating, the cold lead wires can be trimmed.

22 people found this helpful Was this helpful? Yes No

Electric radiant floor heating should not be installed under permanent fixtures that may trap heat. However, if the vanity or cabinets are "floating" or are on legs, then a floor heating system may be installed under it.

15 people found this helpful Was this helpful? Yes No
