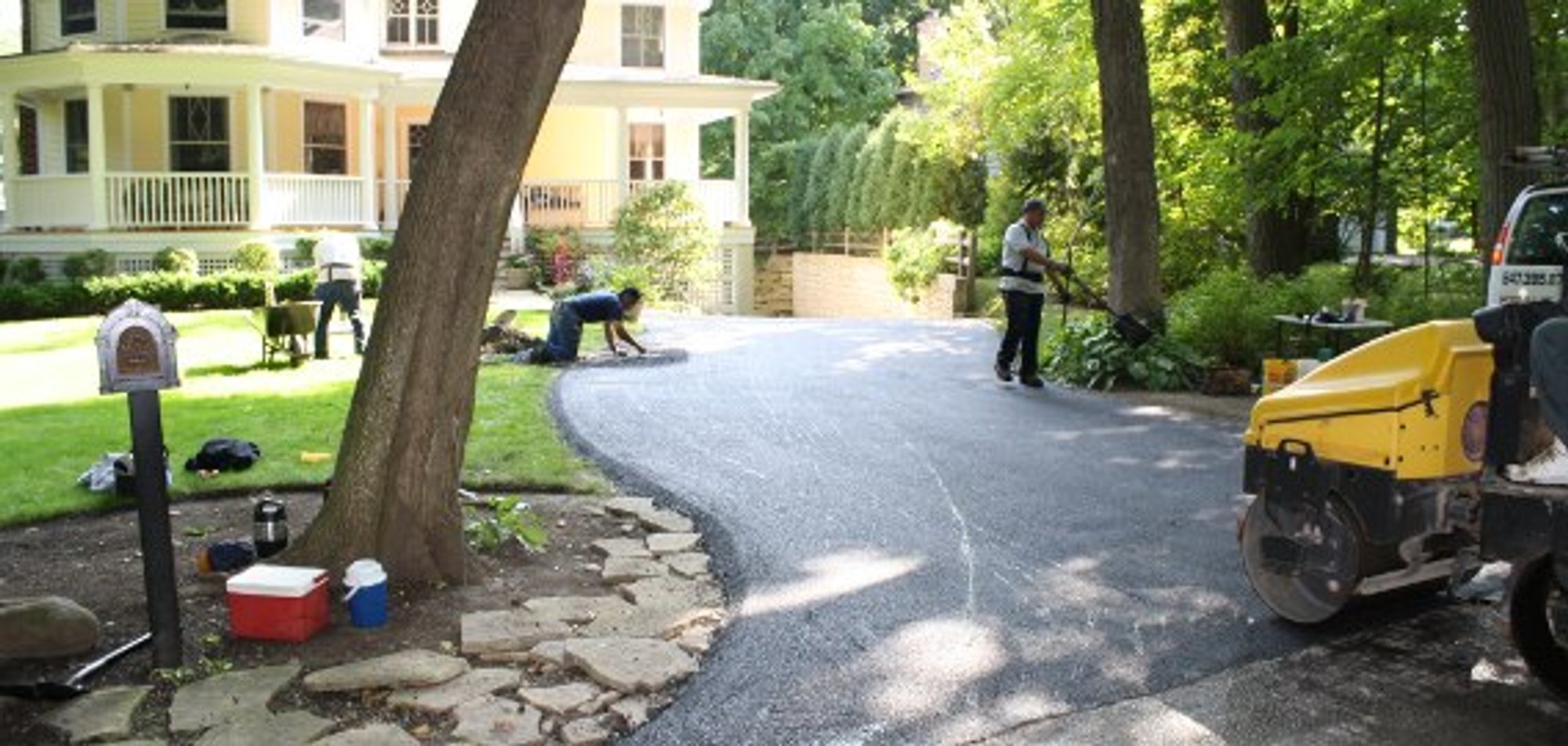

Effortless Luxury: A 520 sq. ft. Radiant Comfort Upgrade for a Zion, IL Driveway

The harsh Illinois winters presented a significant challenge for this Zion homeowner: maintaining a safe, clear, and massive 520 sq. ft. driveway. Shoveling or plowing this extensive area was time-consuming, expensive, and often ineffective. To solve this problem, WarmlyYours engineered a custom electric floor heating solution using our heavy-duty Snow Melt PowerMats. This installation ensures instant, automatic snow removal, delivering unparalleled convenience, safety, and long-term value to the home

Project Details

Location: Zion, IL
Heated Space Type: Driveway (Snow Melting)
Square Footage: 520 sq. ft.
Power Specs: 240 Volts | 108 Amps
Wattage Density: 50 W/sq. ft.
Flooring: Asphalt (New)
Operating Cost Per Hour: $2.67

Behind the Build

This crucial installation, managed by the certified professionals at Krause Electric (Direct - PRO), was designed to completely eliminate the manual labor and hazards associated with heavy snowfall on a large residential driveway. The homeowner sought a discreet, permanent, and reliable solution that could be seamlessly integrated into their recently paved asphalt surface.

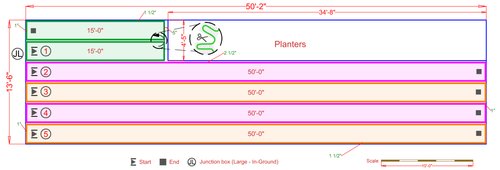

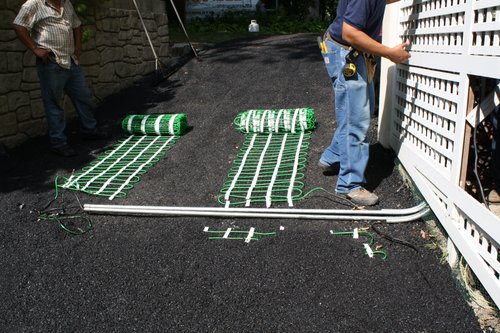

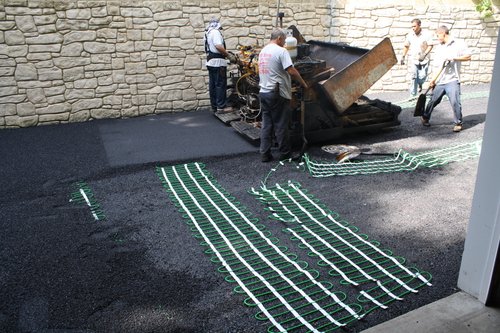

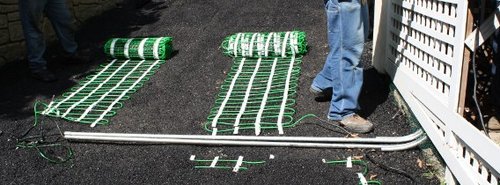

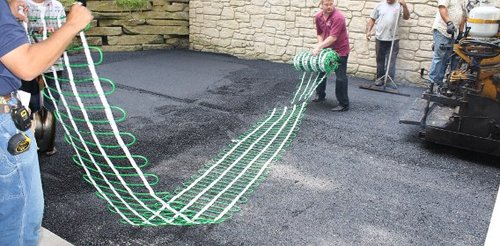

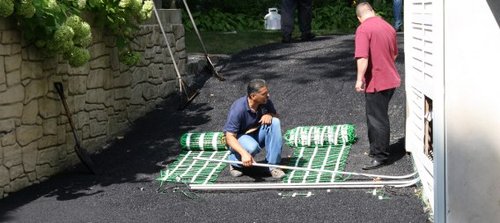

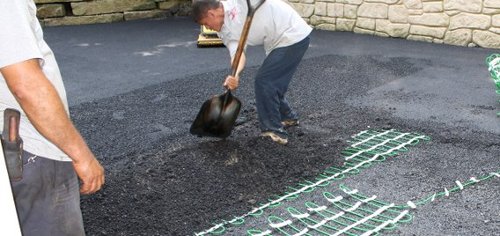

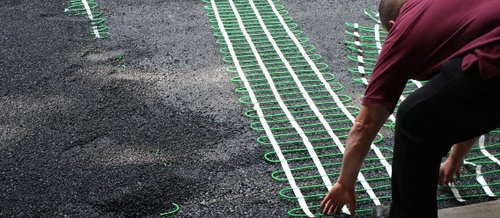

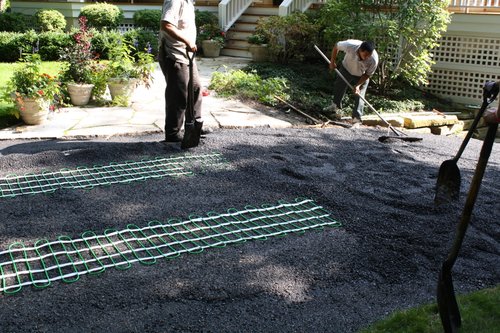

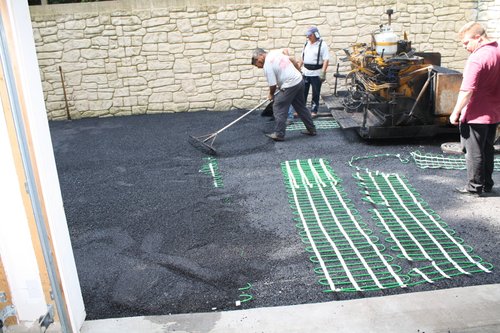

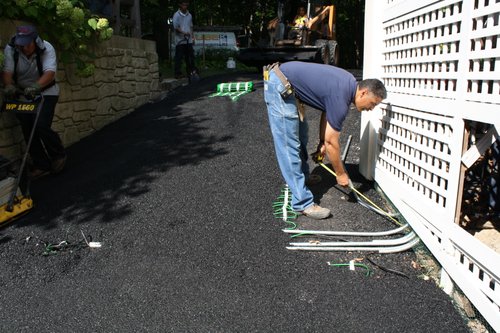

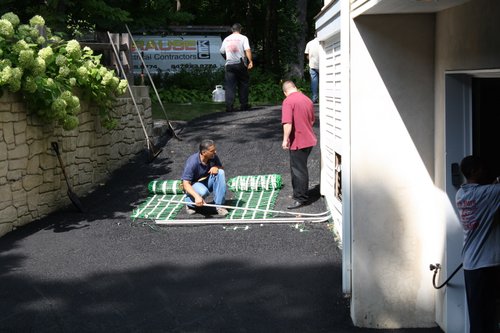

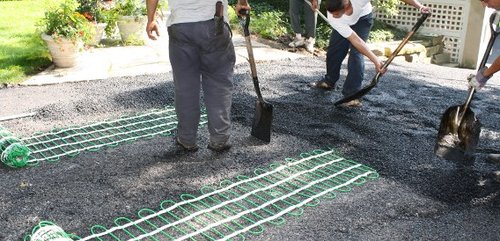

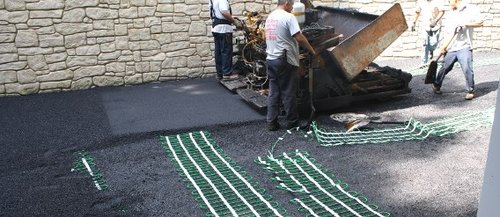

WarmlyYours provided a custom layout utilizing multiple high-powered Snow Melt PowerMats, including the WHMA-240-0250 (100 sq. ft.) and WHMA-240-0230 (60 sq. ft.) models. These mats were precisely sized and placed to cover the most critical areas, such as the vehicle tire tracks, ensuring complete coverage of the 520 sq. ft. area. The mats were laid directly on the sub-base and encased within the new asphalt pour, making the installation process efficient and straightforward.

The entire system is controlled by the advanced Snow and Ice Melting Control Premium (SCP-120). Paired with a dedicated aerial sensor, this control unit constantly monitors both ambient temperature and precipitation.¹ It automatically activates the radiant floor heating system only when snow or ice is detected, ensuring highly energy efficient heating and completely hands-free operation. This automated in-floor heating solution delivers the safety of a perpetually clear driveway while adding significant luxury and convenience.

Featured Products

Snow Melt PowerMats (WHMA Series) : These durable, pre-wired mats deliver powerful electric floor heating for outdoor applications like driveways, walkways, and patios.2 They are engineered for high wattage output and are robust enough to be embedded directly into new asphalt or concrete. The mat configuration speeds up the installation process significantly, ensuring even heat distribution across the heated tracks of the Zion driveway.
Snow and Ice Melting Control Premium (SCP-120) : The brain of the system, this premium control manages the large power load required for the 520 sq. ft.3 driveway. The SCP-120 constantly monitors for moisture and ambient temperature via its external sensor. It only activates the floor warming system when conditions warrant, making it the key to the system's overall energy efficient heating.

Quotes

These quotes are linked to this showcase and include the products used in this project or recommended for a similar-sized project.

Frequently Asked Questions

1. How much does it cost to run heated floors in a large Zion, IL driveway?

The operating cost for this 520 sq. ft. snow melting system in Zion, IL, is approximately $2.67 per hour when actively running. For a typical 8-hour snow event, the cost is about $21.36. Because the system only runs when snow or ice is detected, actual seasonal operating costs are often much lower than traditional snow removal services.

2. Can radiant heating replace the main heating system in this space?

Yes, in this case, the electric radiant floor heating system is the main heating system for the driveway. It is specifically designed to generate enough heat (around $\text{50 W/sq. ft.}$) to completely melt snow and ice accumulation, eliminating the need for any other snow removal method in the heated area.

3. What type of flooring works best with this system?

The Snow Melt PowerMats used in this Zion project are ideal for outdoor surfaces, including asphalt (like this project), concrete, and paved areas. These mats are specially constructed with durable materials to be fully encased within the paving material, ensuring long-lasting and reliable floor warming performance.

4. Is electric radiant floor heating energy efficient?

Yes, electric radiant floor heating for snow melting is highly energy efficient. This is primarily due to the premium thermostat (SCP-120), which activates the system only when needed (when temperature is below freezing and moisture is present). It also shuts off automatically after the surface is clear, preventing wasted energy.

5. What are the main benefits of a heated asphalt driveway in Zion, IL?

The key benefits are safety (eliminating slippery ice), convenience (no manual labor required), and longevity (preventing salt or shovel damage to the new asphalt). For the Zion, IL, location, it provides a crucial and reliable maintenance-free solution for heavy winter conditions.
