A homeowner in Babylon, New York, partnered with CZ Construction to solve a common problem: how to efficiently and comfortably heat a large, 323-square-foot living room. The solution was an electric floor heating system from WarmlyYours. By installing TempZone™ Cable under the new hardwood floor, the system provides consistent, luxurious radiant warmth, transforming the main gathering space into a cozy oasis and adding significant comfort and value to the home.
Project Details
- Location: Babylon, New York
- Heated Space Type: Living Room
- Square Footage: 323 sq. ft.
- Flooring: Hard Wood (Nailed)
- Watts: 4476 W
- Volts: 240V
- Amps: 19 A
- Operating Cost: ~$1.21 per hour
- Products Used:
- TempZone™ Floor Heating Cable
- nSpire Touch Programmable Thermostat
- nJoin™ Power Module
Warming Up a Wide-Open Space
Large living rooms, especially those with hardwood floors, can often feel chilly and drafty, making it difficult to create a truly comfortable environment. The team at CZ Construction was tasked with renovating this spacious 323 sq. ft. living room and wanted to ensure the final result was as comfortable as it was beautiful.

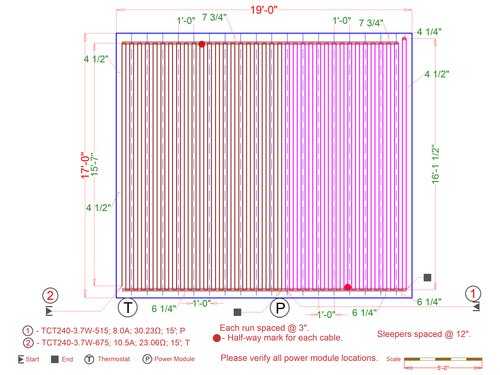

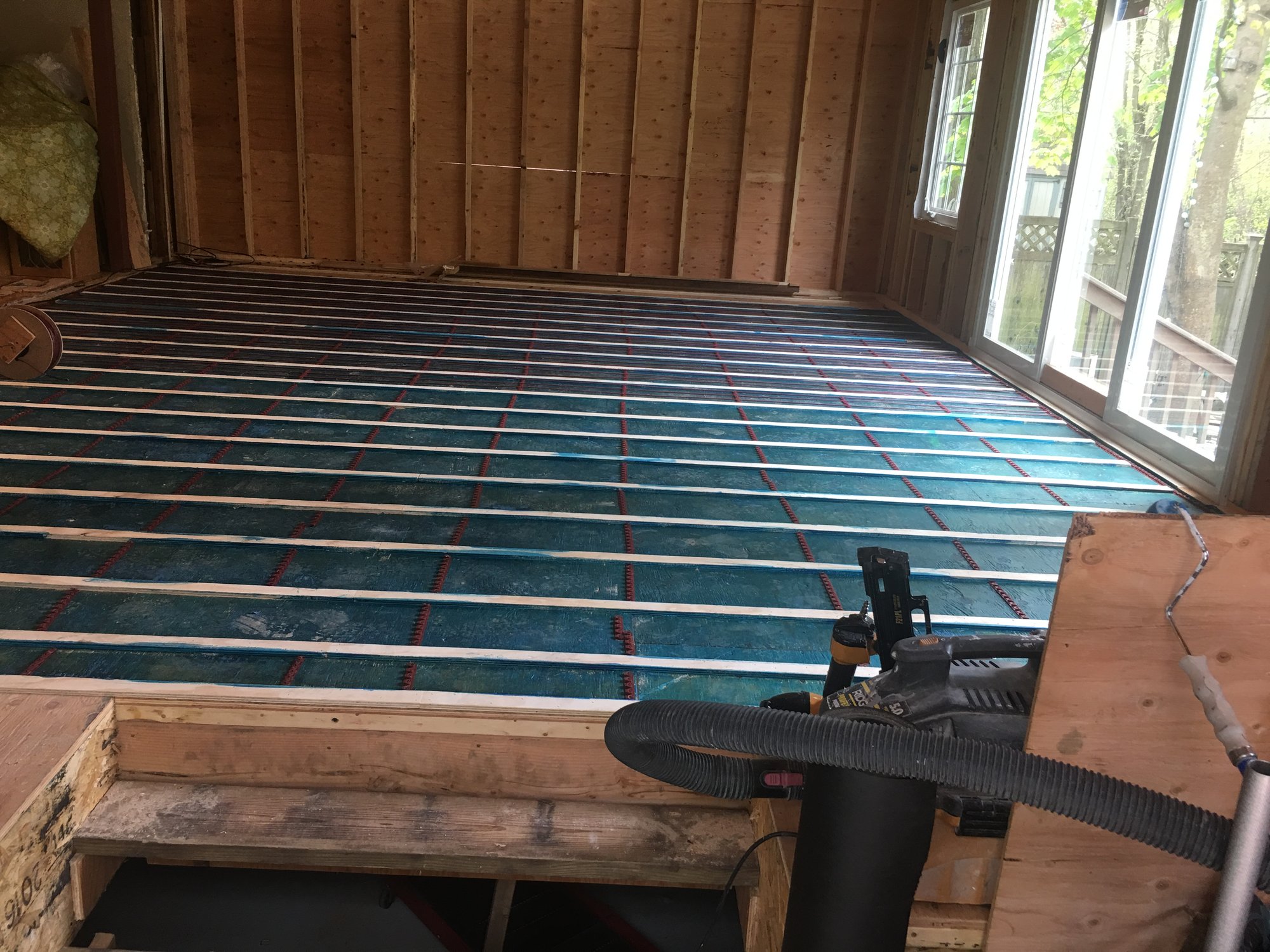

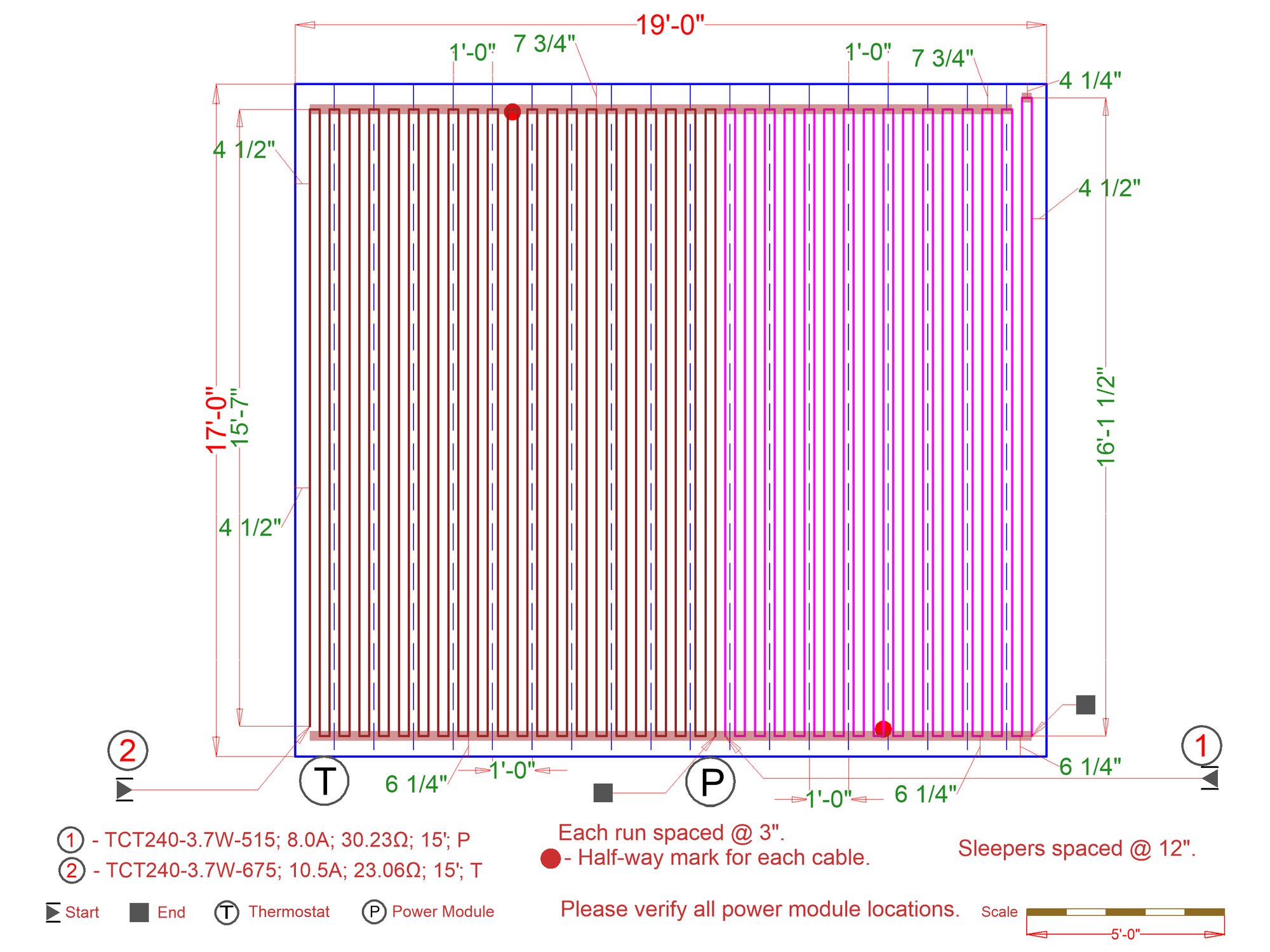

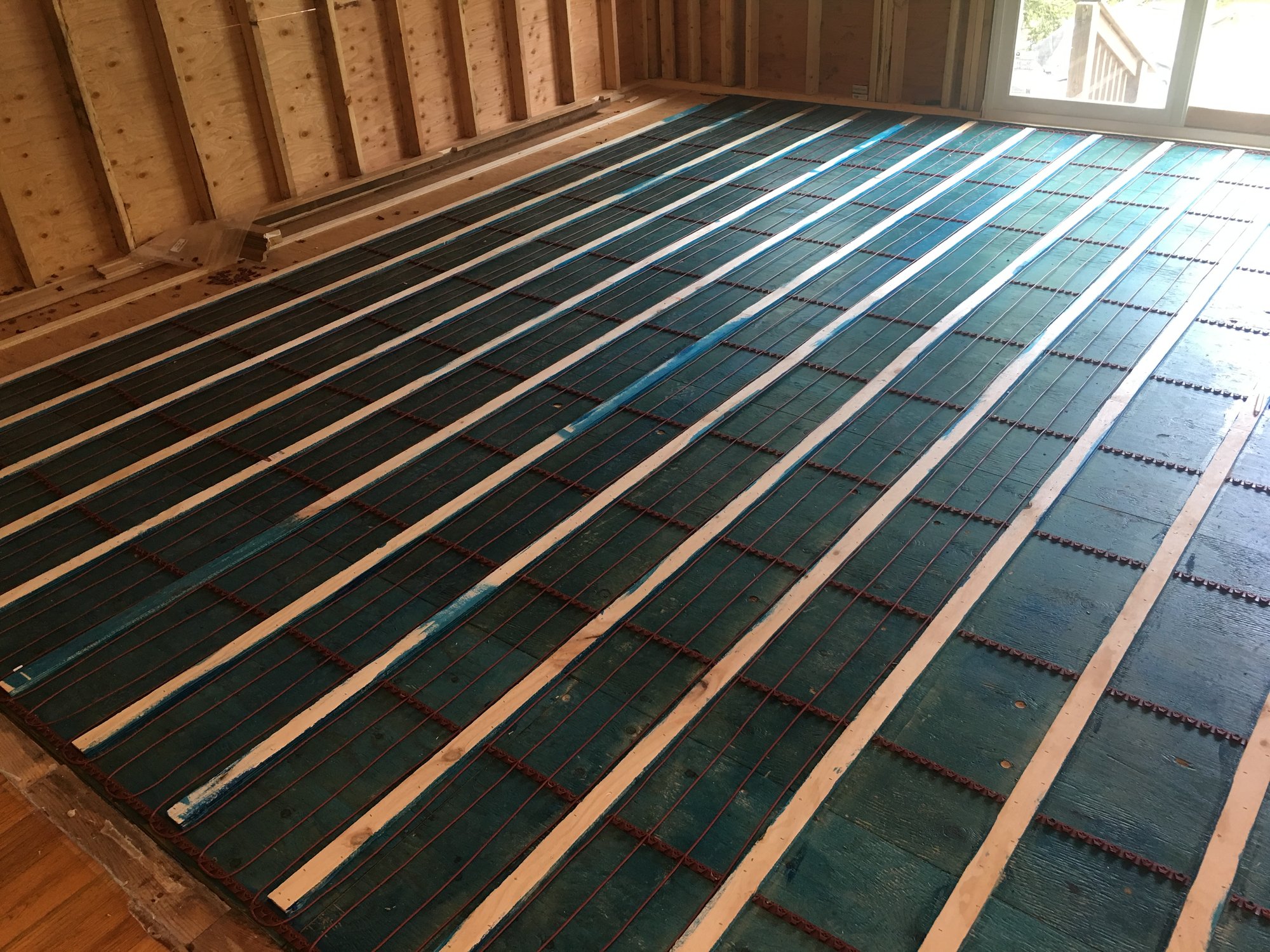

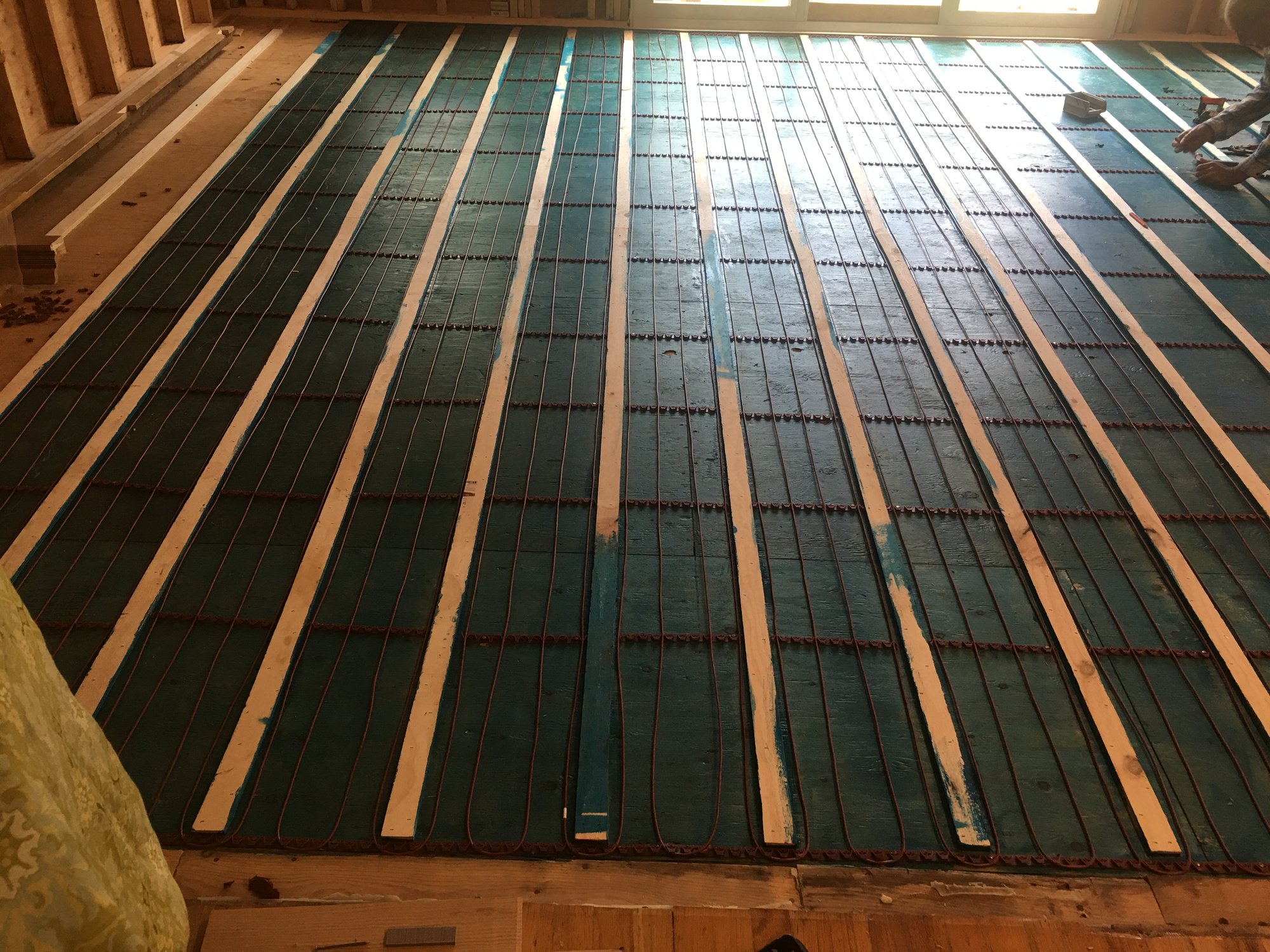

Instead of relying solely on a traditional forced-air system, which can create cold spots and circulate dust, they chose a WarmlyYours electric floor heating system. The team installed TempZone™ Floor Heating Cable, spacing it 3 inches apart to provide powerful, full coverage floor warming. This in-floor heating system radiates heat upwards from the entire floor, warming people and objects in the room directly for a more even and efficient heat.
The system was paired with an nSpire Touch programmable thermostat, allowing the homeowners to easily set a heating schedule that matches their lifestyle, warming the room before they wake up and saving energy when they're away. The result is a stunning living room that feels as warm and inviting as it looks, no matter the weather outside.
Featured Products
TempZone™ Floor Heating Cable This versatile cable system is perfect for rooms with irregular shapes. It allows for flexible installation on-site and provides 3.7 watts per foot for powerful, reliable heating. Two separate cable lengths (675 ft. and 515 ft.) were used for this project to ensure complete coverage.
nSpire Touch Thermostat (UDG4-4999) A modern, programmable thermostat with a 3.5” color touchscreen. It features a built-in Class A GFCI for safety and a floor sensor to ensure precise temperature control. Its easy-to-use setup wizard and energy usage tracking make managing comfort and costs simple.
nJoin™ Power Module (USG-4000) For larger systems like this one (which exceeds 15 amps), the nJoin Power Module works with the main thermostat to safely and effectively control additional heating zones, ensuring the entire 19-amp system operates flawlessly.
