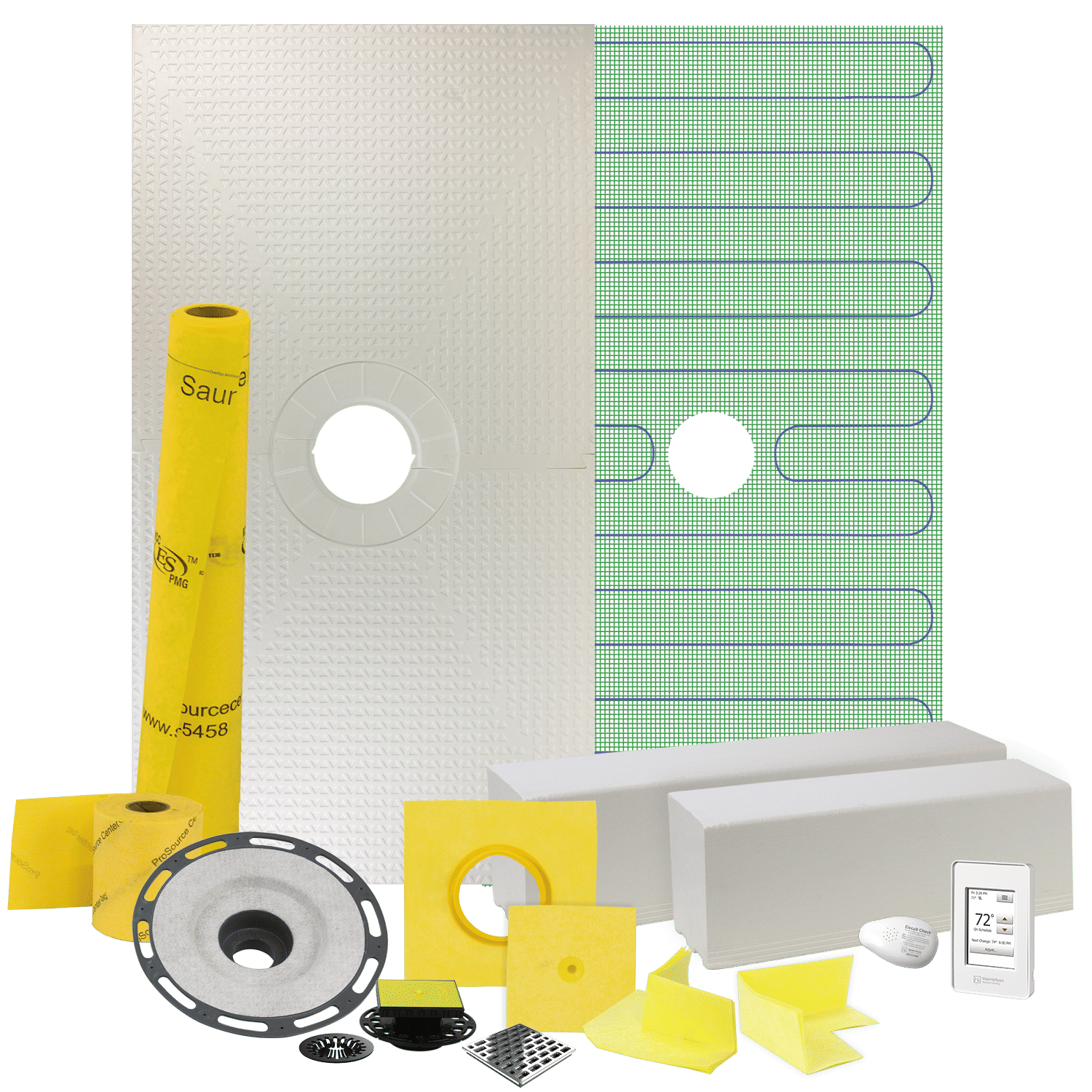

Pro GEN II 32ʺ x 60ʺ Floor Heating and Shower Waterproofing Kit with Center Drain and ABS Flange
Part Number: SH-272472-ABS-EFH
This support page provides publications, manuals, specifications, videos, and support articles
This support page provides publications, manuals, specifications, videos, and support articles
Publications and Manuals (30)
Specifications (42)
Videos (1)
Articles (3)
Similar Items (11)
Create a new Support Request
Publications and Manuals
Installation
TempZone Shower Floor Mat Installation Manual (English)TempZone™ Shower Mat Installation (English)
TempZone™ Twin Circuit Check Instructions (English)
nSpiration Electrical Rough-in Kit Installation (Single Gang Box with 2 Conduits) (English)
nSpiration Electrical Rough-in Kit Installation (Single Gang Box with Single Conduit) (English)
nSpiration Electrical Rough-in Kit Installation (Single Gang Box without Conduit) (English)
Operation Manuals
nSpire Touch (UDG4-4999) Interactive User Manual (English)nSpire Touch (UDG4-4999) Interactive User Manual (Spanish)
nSpire Touch (UDG4-4999) Quick Start Guide and Specifications (English)
nSpire Touch UDG4-4999 Interactive User Manual (Spanish)
Project Planners
Floor Heating Request for Quotation Form (English)Calculating Project Dimensions (English)
TempZone Rolls Materials And Tools Checklist (English)
Wiring Diagrams
nSpiration Series Thermostat Wiring Diagram (120V & 240V) (English)Wiring Diagram for TempZone™ Cut & Turn Single Conductor (Multiple rolls) 120V & 240V with SmartStat™, EasyStat™ and Comfort Regulator (English)
nSpiration Series Thermostat Environ Wiring Diagrams (English)
nSpiration Series Thermostat TempZone Twin Wiring Diagrams (English)
nSpire Series Thermostat Wiring Diagram for 120v and 240V Floor Heating Systems (English)
Technical Support
Floor Fault Location Thermal Camera Troubleshooting Kit Instruction (English)Floor Fault Location Thermal Camera Troubleshooting Kit Instruction (Spanish (es))
Floor Fault Location Thermal Camera Troubleshooting Kit Instruction (French)
TempZone™ Mega Ohm Reading Instructions (English)
Sell Sheets
Comparison Chart for Timers and Switches for Towel Warmers or Radiant Panels (English)Indoor Controls Sell Sheet (English)
Radiant Heating Controls Comparison Chart USA (English)
TempZone Comparison Chart (English)
TempZone Shower Floor And Shower Bench Mats Sell Sheet (English)
Specifications
Electrical
| Amps | 1.67 A |
| Battery | 5-year battery backup of clock and calendar |
| Circuits Required | 1 |
| Connection | 4 wires, double pole |
| Connection Method | Hardwired |
| Floor Load | 0.2 kW |
| Ground Fault Protection | GFCI, Class A, 5 mA |
| Maximum Current | 15 A |
| Maximum Load (Resistive Only) | 15 A |
| Maximum Power | 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V |
| Ohms | 71.7129 Ohm |
| Supply | 120 VAC - 50/60Hz, 240 VAC - 50/60Hz |
| Voltage | 120 VAC |
| Watts | 201 W |
| Watts Per Sq. Ft. | 15 Watts Per Sq. Ft. |
Warranty / Certifications
| Approvals | cULus listed |
| Ingress Protection (IPxx) Rating | IP20 |
| Warranty | 25 Year Warranty |
| Wet Location Listed | US, Canada |
Performance
| BTU Per Hour | 686 |
| Drain Assembly Pressure Rating | 780 PSI |
| Membrane Permeability | 0.07 perm |
Product Dimensions
| Cold Lead Length | 22′ |
| Coverage | 13.33 sqft |
| Depth | 2 in |
| Drain Hole Diameter | 5″ |
| Grate Size | 3.75” x 3.75” |
| Heating Element Thickness | 0.125″ |
| Installed Depth | 0.75 in |
| Length | 5′ |
| Width | 2′8″ |
Appearance
| Color | White |
Controls
| Display | Backlit Display |
| Display Size | 2″ W x 3″ H (3.5″ Diagonal) |
| Languages | English, French, Spanish |
Thermostat
| Floor Sensor Compatibility | 10k ohms, 12k ohms and custom |
| Included Floor Sensor | 10k ohms, 15' lead |
Installation
| Floor Types | Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more |
Construction
| Grate Cover Steel Type | Stainless Steel |
| Shower Pan Density | 3.5 lb/ft³ |
Identifiers
| SKU | SH-272472-ABS-EFH |
| UPC (GTIN-12) | 881308060817 |
