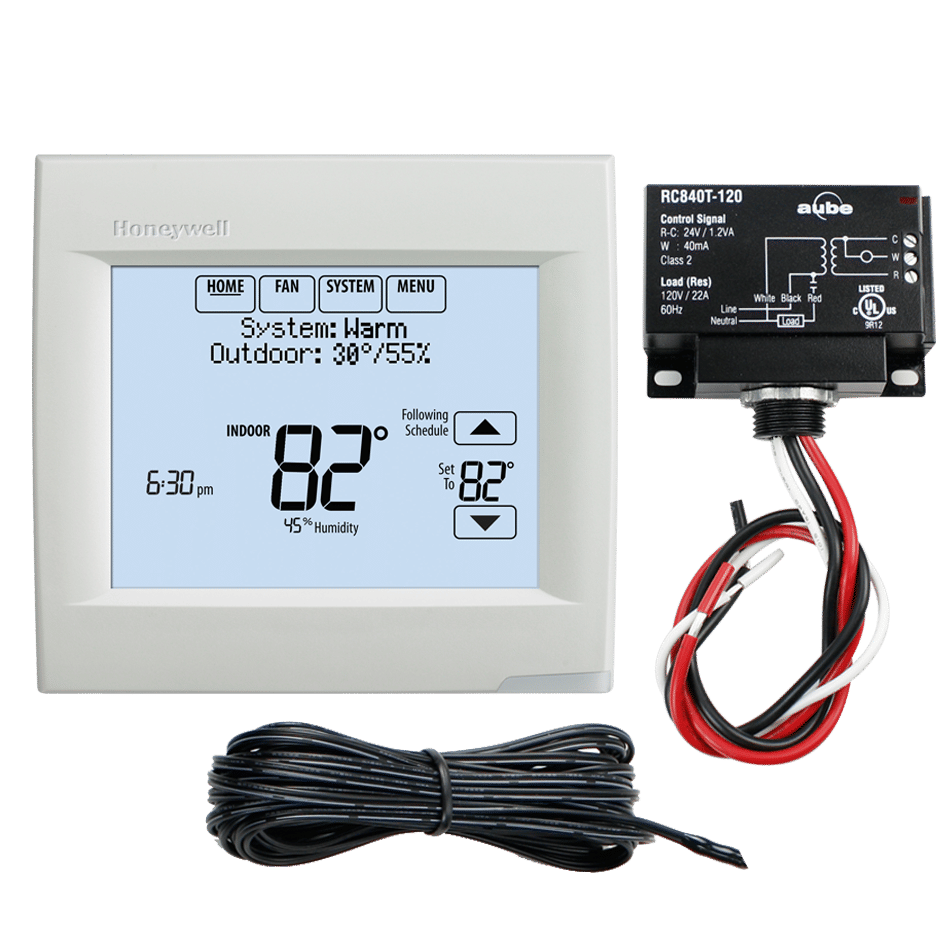

Wi-Fi VisionPRO 120V Kit TH8321-WIFI-8000-120V
Part Number: TH8321-WIFI-8000-120V
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (3)
Publications and Manuals (19)
Specifications (19)
Videos (1)
Articles (5)
Related Items (1)
Create a new Support Request
Common Support Questions
The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
Need more help? View support options
Solution:
The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.
Need more help? View support options
All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".
Please see this video on how to install a WarmlyYours nSpiration Series thermostat: https://www.warmlyyours.com/video-media/wire-nspiration-thermostat-to-electric-floor-heating-roll
Need more help? View support options
Publications and Manuals
Installation
TH115-AF-GA-08 SmartStat Installation Manual (English)RC840 Installation Guide (English)
Wi Fi Visionpro® 8000 Installation Guide (English)
Technical Specifications
CeraZorb Material Safety Data Sheet (English)Wi-Fi VisionPRO® 8000 Submittal Sheet (English)
Wiring Diagrams
Generic Wiring Diagram & Instruction, Integration Kit (English)Nest Integration Wiring Diagram and Instructions (English)
Savant Integration Wiring Diagram and Instructions (English)
TempZone™ Custom & Standard Mat Wiring Diagram (English)
WIRING DIAGRAM 120V & 240V Heating Products with PB112D-GA (English)
Wiring Diagram for Multiple Twin Floor Heaters with nSpire Series Thermostat Using a Junction Box (English)
Wiring Diagram for TempZone™ Cut & Turn Single Conductor (Multiple rolls) 120V & 240V with SmartStat™, EasyStat™ and Comfort Regulator (English)
Wiring Diagram for TempZone™ Cut & Turn Twin Conductor (Multiple Rolls) 120V & 240V with SmartStat™, EasyStat™, Comfort Regulator and Power Modules (English)
Wiring-Diagram-WIFI-8000-INTEGRATION (English)
nSpiration Series Thermostat Environ Wiring Diagrams (English)
nSpiration Series Thermostat TempZone Twin Wiring Diagrams (English)
Specifications
Electrical
| Connection | Single pole, 3 wires |
| Connection Method | Hardwired |
| Maximum Current | 22 A |
| Maximum Load (Resistive Only) | 22 amps |
| Sensor Type (Resistance) | 10 kOhm |
| Transformer Ratings | 24 VAC / 1.2 VA / Class 2 |
| Voltage | 120 V |
| Watts Per Sq. Ft. | 12-15 Watts Per Sq. Ft. |
Controls
| Control Signal | 24VAC / 40mA / 1.2VA |
Logistics
| Country of Origin (COO) | Mexico |
Product Dimensions
| Depth | 2″ |
| Installed Depth | 0.75″ |
| Length | 5.125″ |
| Width | 3.25″ |
Identifiers
| Ground Fault Protection (GFCI) | No |
| SKU | TH8321-WIFI-8000-120V |
| UPC (GTIN-12) | 881308051082 |
Thermostat
| Has Floor Sensor | y |
Warranty / Certifications
| Warranty | Limited 3-year warranty and lifetime technical support |
