Waterproof Outdoor Thermostat for Pipe Freeze Protection or Roof and Gutter Deicing Systems


Part Number: AIR-STAT
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (5)

publication
Publications and Manuals (4)

specifications
Specifications (18)

Videos (6)

Articles (6)

Related Items (13)

Create a new Support Request

Shop Now

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options

As the names imply, constant wattage cable uses fixed wattage output per linear foot and does not automatically adjust in response to temperature changes. Self-regulating cable is manufactured with a resistance matrix placed between its 2 buss wires that varies the ohms resistance per linear foot to automatically adjust in response to temperature changes. Learn more about this in our blog Self-Regulating vs. Constant Wattage Heating Cables.

Need more help? View support options

Self Regulating cable is not designed for snow load removal. It is designed for deicing in scuppers, roof overhangs, gutters, downspouts, trench drains, etc.

Need more help? View support options

Warmly Yours self-regulating cable is suitable for use on standard asphalt or wood shingles, angled cedar, tile or terra cotta, slate, flat membrane-type roofing, and metal roofing.  For attaching, the same clips are used for both slate and cedar roofing.   Always check local codes for approved methods of heating roofs and gutters.

Need more help? View support options

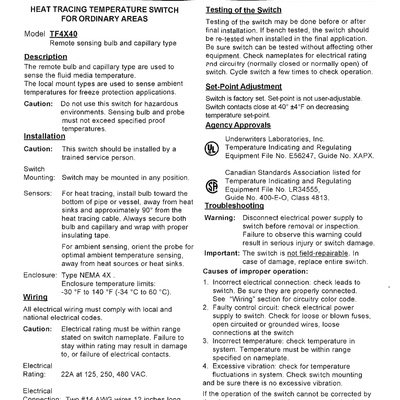

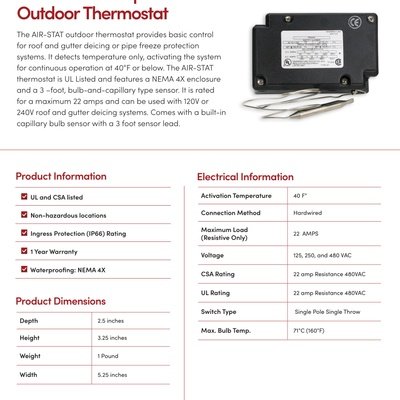

Publications and Manuals

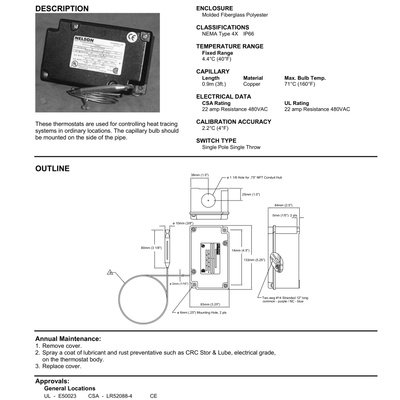

Specifications


Electrical

Activation Temperature 40 F°
Connection Method Hardwired
Maximum Load (Resistive Only) 22 A
Voltage 125, 250, and 480 VAC

Features

Air Temp Sensor true
Automatic true

Warranty / Certifications

Approvals UL and CSA listed
Area of Use Non-hazardous locations
Ingress Protection (IPxx) Rating IP66
Warranty 2 years
Waterproofing NEMA 4X

Product Dimensions

Depth 2.5 in
Height 3.25 in
Installed Depth 0.75 in
Width 5.25 in

Thermostat

Included Sensor 1 capillary bulb, 3' lead

Identifiers

SKU AIR-STAT
UPC (GTIN-12) 881308056018
