Roof & Gutter De-icing Cable 50 ft., 8 Watts/ft., 240 V
Part Number: FP-SR-240-08-0050Past Model
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions
Do radiant heating products have polarity?
Why a GFEP (GEFP, RCCB, or heat trace circuit breaker) and not a GFCI breaker for WarmlyYours outdoor deicing and snow melting systems?
GFEP is the National Electric Code (NEC) required protection for fixed outdoor deicing and snow-melting equipment, which may be accomplished by using circuit breakers equipped with ground-fault equipment protection (GFEP) of 30 mA. It is important to understand that this required equipment protection is NOT the same as a 5 mA GFCI used for personal protection.
9 people found this helpful. Did you find this helpful? Yes NoCan I run Roof and Gutter Deicing Cable off an extension cord?
NEVER use an extension cord. If you do not understand the electrical requirements needed regarding the electrical receptacle plug, contact your local electrical inspector or a licensed electrician.
The reason for this is due to safety and performance of the system. Extension cords are often not properly selected and will degrade, potentially leading to electrical shorts or other hazards such as fire. Roof de-icing cables are designed to be connected directly to a properly rated outlet, and the length and type of extension cords may not be rated for the same power load, leading to insufficient power supply, potential damage to the cables, and further safety risks including their ability to prevent ice dams on your roof.
1 person found this helpful. Did you find this helpful? Yes NoThe neutral on GFEP/GEFP/RCCB 240V breakers is not used, why do I need this then?
A 2 pole single-phase 240V circuit works by continuously monitoring the current flowing through both hot wires of the circuit. If it detects even a slight imbalance between the current on each hot wire (indicating a ground fault), it will quickly trip, cutting off power to the circuit. Essentially, it compares each leg of the 240V circuit and trips if they are not precisely equal.
1 person found this helpful. Did you find this helpful? Yes NoWhat is the lifespan of WarmlyYours roof and gutter deicing cables?
WarmlyYours roof and gutter deicing self-regulating cable loses its power ramp-up ability at about 5-10 years, but it will still work at its rated wattage for years. Properly installed WarmlyYours roof and gutter constant wattage cable usually lasts well beyond its warranty period.
1 person found this helpful. Did you find this helpful? Yes NoWhat type of roofs can I use WarmlyYours Self-Regulating cable on?
WarmlyYours self-regulating cable is suitable for use on standard asphalt or wood shingles, angled cedar, tile or terra cotta, slate, flat membrane-type (rubber or EPDM) roofing, and metal roofing. For attaching, the same clips are used for both slate and cedar roofing. Always check local codes for approved methods of heating roofs and gutters.
1 person found this helpful. Did you find this helpful? Yes NoCan I install a roof and gutter deicing system on a 'ribbed' metal roof?
Can WarmlyYours self-regulating cable go in liner drains in the driveway? In front of the garage and the end of a driveway?
WarmlyYours self-regulating cable can rest in the bottom of the drain. Some people put them on the AIR-STAT to control operation.
Did you find this helpful? Yes NoCan WarmlyYours self-regulating deicing cable be used inside a drain pipe or trench?
Yes, WarmlyYours self-regulating deicing cable may be used in a drain opening or in a trench. It cannot go inside a pipe.
Did you find this helpful? Yes NoCan self-regulating cable be installed on EPDM or rubber roofs?
How far apart are the triangles spaced from one another at the roof edge near the gutter for WarmlyYours self-regulating deicing cable?
I have leaf guards installed on my gutters. Can I attach the deicing system to the side, or underside of my gutters?
Is self regulating cable good for clearing snow off my roof?
Once we installed the Self-Regulating cable and plugged it in, we noticed it was heating. Doesn't this self-regulate and not turn on until is is cold?
What are some considerations to note about WarmlyYours roof and gutter deicing self-regulating cable versus constant wattage cable?
- Overlapping WarmlyYours self-regulating cable is possible because self-regulating cable regulates heat output to prevent overheating and damaging the cable.
- Overlapping WarmlyYours constant wattage cable is not possible because it is on all the time and cannot come in contact with itself or any other constant wattage heating cable, as it will overheat and fail.
- Self-regulating cable requires the use of a control and/or a sensor to operate. WarmlyYours offers a variety of controls ranging from a basic manual control to our premium option that provides the ultimate in convenience and hands-off operation.
- Constant wattage cable does not require a thermostat/controller and can be connected to an outlet throughout an entire winter, during a single snow event, or whenever deicing is needed. An optional plug-in thermostat can be used if desired.
- Self-regulating cable is designed to be cut to length at the jobsite by an installer where it can then be end-capped with accessories (sold separately).
- Constant wattage cable cannot be shortened or altered in any way.
What is the difference between Self-Regulating and Constant Wattage Cabling?
As the names imply, constant wattage cable uses fixed wattage output per linear foot and does not automatically adjust in response to temperature changes. Self-regulating cable is manufactured with a resistance matrix placed between its 2 buss wires that varies the ohms resistance per linear foot to automatically adjust in response to temperature changes. Learn more about this in our blog Self-Regulating vs. Constant Wattage Heating Cables.
Did you find this helpful? Yes NoWhy is self-regulating cable used on metal roofs versus constant wattage cable?
Two good reasons for this:
- Constant Wattage cables maintain a consistent heat output regardless of the surrounding temperature. Metal roofs, being highly conductive, can cause rapid temperature fluctuations which can lead to overheating and potential damage to the cable's insulation, potentially causing a fire hazard.
- The UL approved installation method requires self-regulating cable for metal roofs. If not installed per UL guidelines, there is no listing and thus no warranty.

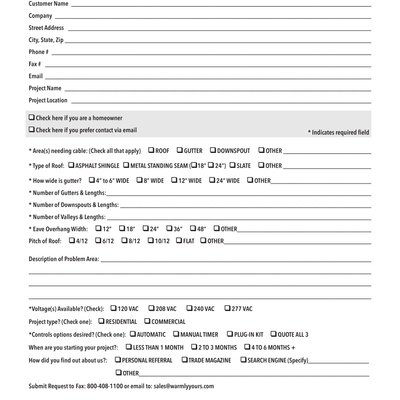

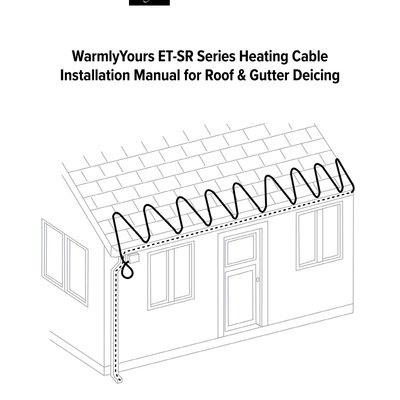

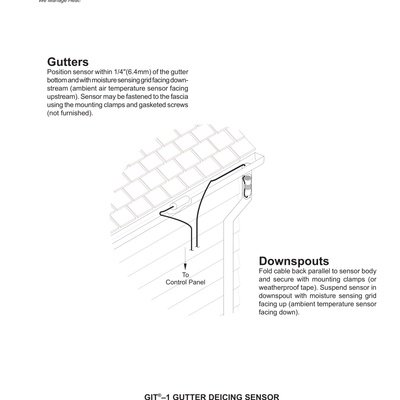

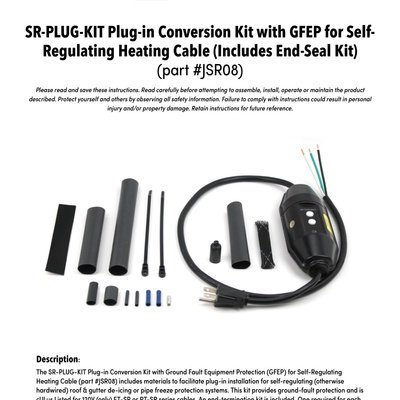

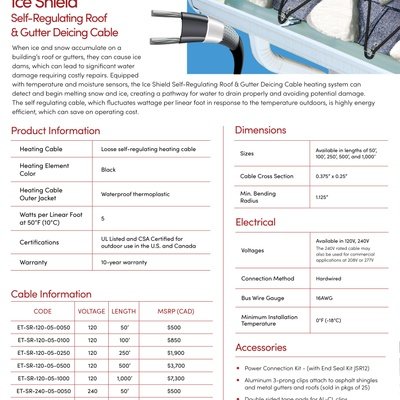

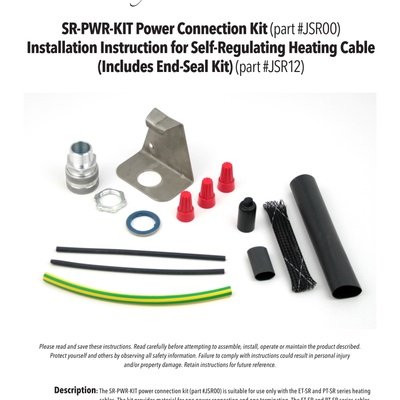

Publications and Manuals
Specifications
Product Dimensions
| Cable Cross Section | 3/8" x 1/4" |
Electrical
| Connection Method | Hardwired |
| Voltage | 240 V |
| Watts Per Ft. | 4-10 watts per linear ft. |
Logistics
| Country of Origin (COO) | China |
Identifiers
| SKU | FP-SR-240-08-0050 |
Warranty / Certifications
| Warranty | 10 years |
