100’ Roof and Gutter Deicing Self-Regulating Heating Cable, 5W/ft., 240V
Part Number: ET-SR-240-05-0100
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (6)
Publications and Manuals (20)
Specifications (20)
Videos (6)
Articles (6)
Related Items (19)
Similar Items (10)
Create a new Support Request
Shop Now
Common Support Questions
Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.
Need more help? View support options
Triangles are spaced 24" apart.
Need more help? View support options

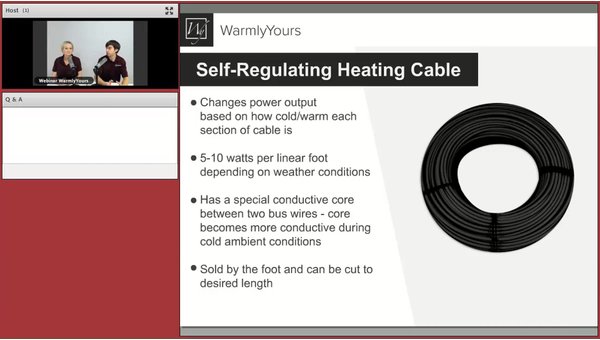

As the names imply, constant wattage cable uses fixed wattage output per linear foot and does not automatically adjust in response to temperature changes. Self-regulating cable is manufactured with a resistance matrix placed between its 2 buss wires that varies the ohms resistance per linear foot to automatically adjust in response to temperature changes. Learn more about this in our blog Self-Regulating vs. Constant Wattage Heating Cables.
Need more help? View support options
Self Regulating cable is not designed for snow load removal. It is designed for deicing in scuppers, roof overhangs, gutters, downspouts, trench drains, etc.
Need more help? View support options

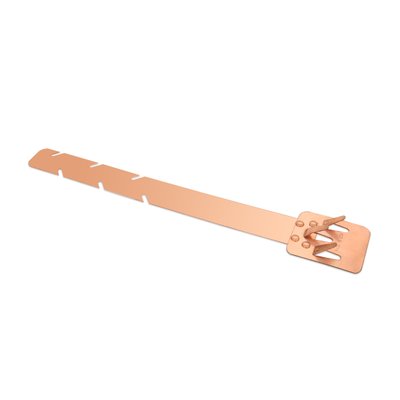

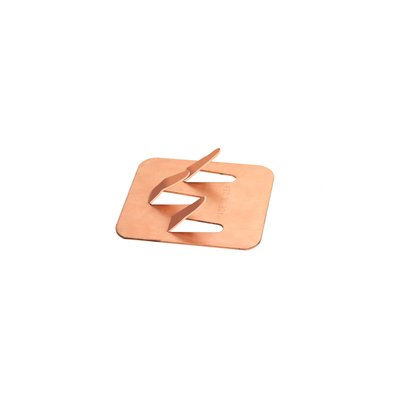

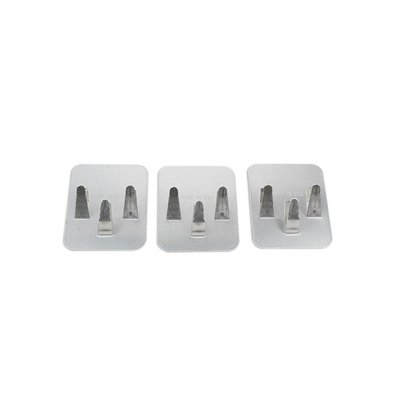

Warmly Yours self-regulating cable is suitable for use on standard asphalt or wood shingles, angled cedar, tile or terra cotta, slate, flat membrane-type (rubber or EPDM) roofing, and metal roofing. For attaching, the same clips are used for both slate and cedar roofing. Always check local codes for approved methods of heating roofs and gutters.
Need more help? View support options
WarmlyYours self-regulating roof and gutter de-icing cable can be used on rubber or EPDM (Ethylene Propylene Diene terpolyMer) roofs.

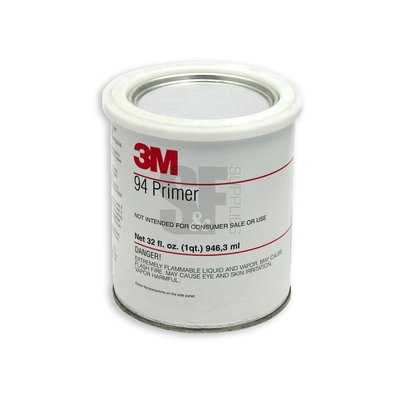

The primer that WarmlyYours sells is specifically for adhering clips to EPDM or rubber roofing.
Need more help? View support options
Publications and Manuals
General Publications

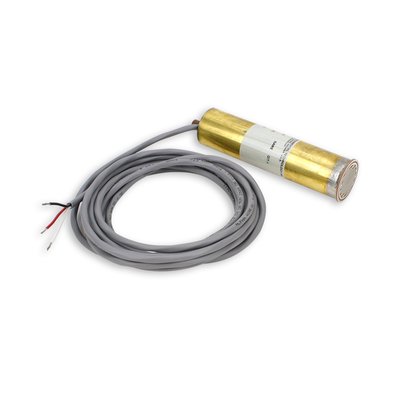

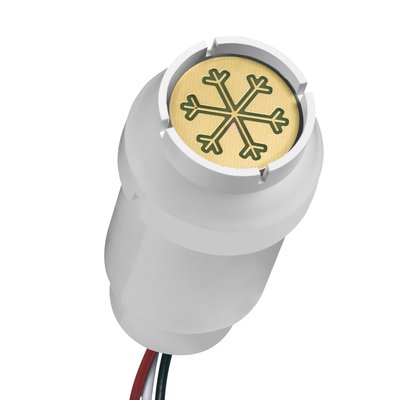

Gutter Ice Sensor Spec Sheet (English)Gutter/Aerial Ice and Snow Sensor Spec Sheet (English)
Installation

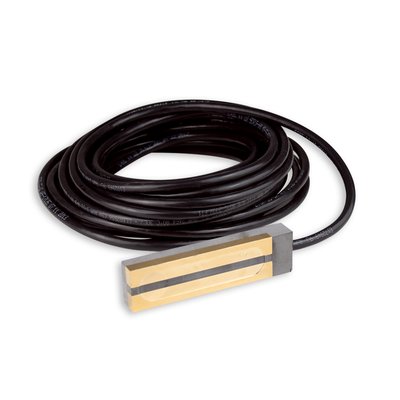

ET-End-Kit End Seal Kit Installation Manual (English)Gutter Ice Sensor Installation (English)
Pro Tect Pipe Freeze Protection Self Regulating Heating Cable Install Manual (English)
Roof And Gutter Cable Installation Manual (English)

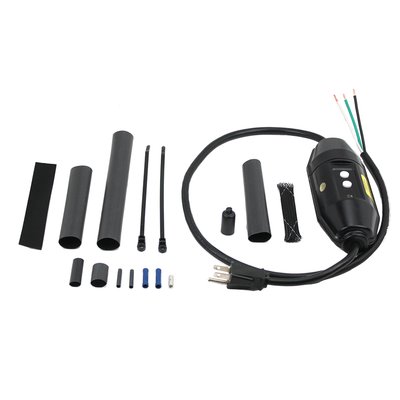

SR-PLUG-KIT Plug-in Conversion Kit with Ground Fault Equipment Protection (GFEP) Installation Manual (English)
SR-PWR-Kit Power Connection Kit Installation Manual (English)
Project Planners
Roof / Gutter Deicing Quotation Form (English)Self-Regulating Pipe Freeze Protection Quote Request Form (English)
Snow Melting Roof Deicing Infographic (English)
Technical Information
PRO-Tect Pipe Freeze Protection Self Regulating Heating Cable Power Connection Kit Spec Sheet (English)Roof & Gutter Deicing Master Specifications (English)
Technical Specifications
PRO-Tect Pipe Freeze Protection Self Regulating Heating Cable End Seal Termination Kit Spec Sheet (English)PRO-Tect Pipe Freeze Protection Self-Regulating Heating Cable In-Line Splice Kit Spec Sheet (English)
PRO-Tect Pipe Freeze Protection Self-Regulating Heating Cable T-Splice Kit Spec Sheet (English)
Roof And Gutter Pipe Tracing Ccsaus Listing Compliance Certificate (English)
Sell Sheets
Ice Shield Self-Regulating Roof & Gutter Deicing Cable Sell Sheet (English)Outdoor Display Program Sell Sheet for Canada (English)
PRO-Tect: Pipe Freeze Protection Self Regulating Cable Sell Sheet (English)
Specifications
Electrical
| Amps | 2.08A |
| Applicable Voltages | 208 VAC, 240 VAC, 277 VAC |
| Benefits | Can be cut-to-length & overlapped |
| Cable Type | Self Regulating |
| Connection Method | Hardwired |
| Voltage | 240 VAC |
| Watts Per Ft. | 4-10 watts per linear ft. |
| Watts Per Ft. at 50°F/10°C | 5W |
Warranty / Certifications
| Approvals | cULus & cCSAus Listed |
| Warranty | 10 years |
Product Dimensions
| Cable Cross Section | 3/8" x 1/4" |
| Length | 100ft |
Construction
| Cable Jacket | Waterproof thermoplastic |
Logistics
| Country of Origin (COO) | China |
Installation
| Maximum Intermittent Exposure Temperature, 1000 Hours (Power On or Off) | 185°F / 85°C |
| Maximum Maintain or Continuous Exposure Temperature (Power On) | 149°F / 65°C |
| Minimum Bend Radius | 1.125″ / 28.6mm |
| Minimum Installation Temperature | 0°F / -18°C |
Identifiers
| SKU | ET-SR-240-05-0100 |
| UPC (GTIN-12) | 881308068011 |
Videos
Product Line Videos
Tech Tips: How to Test Self Regulating Cables

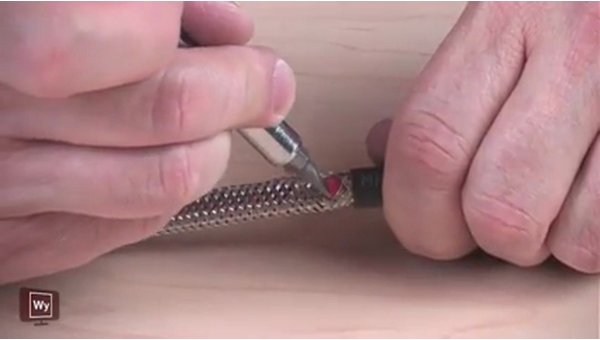

How to Terminate a Self-Regulating Cable
Electric Outdoor Heating for Roof & Gutters Installation Overview
Installing WarmlyYours Roof and Gutter De-icing System on a Slate Roof with A Concord Carpenter
Why and How to Install a Roof & Gutter De-Icing System
Articles
Data for Constant Wattage Roof & Gutter Kits

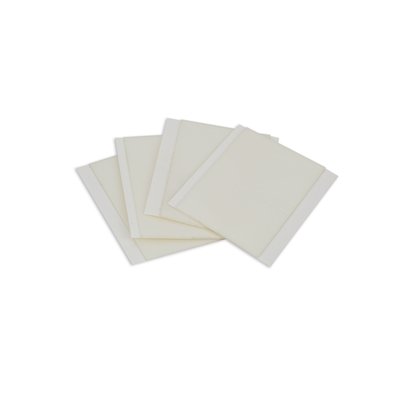

Double-sided tape for roof and gutter clips Fail, Rolled Roof
Roof and Gutter not suitable for snow load removal
Roof Gutter Cable Triangle Width

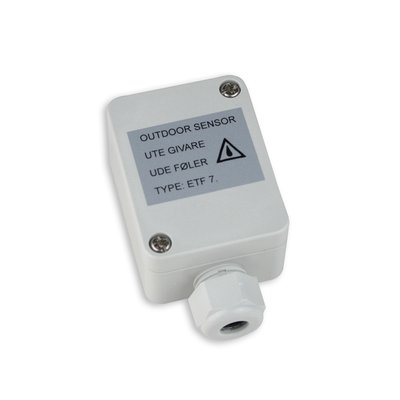

SCE-AMB-SS Sensor wiring (OJ ETF-7)
