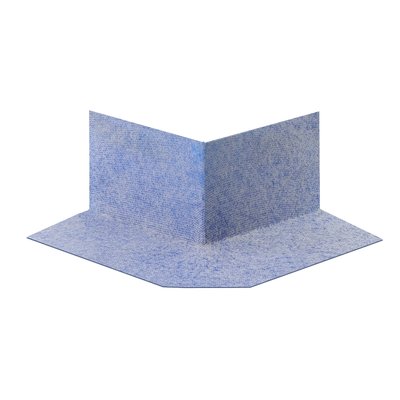

Prodeso Preformed Outside Corner 6″ x 6″ for Membrane (Each)

Waterproofing for the room is in the layer above the floor heating system. The layers for waterproofing this type of floor are:

• subfloor
• thinset
• uncoupling membrane
• tempzone heating cable
• waterproofing tape for seams and corners
• thinset or self leveling cement
• tile floor

Self-Leveling (SLC) Cement is not recommended for use over Prodeso. Contact WarmlyYours if self-leveling underlayment is required.

Install membrane over entire floor first, then heating cable, then do the tiles 1 or 2 at a time. Never cover the Prodeso entirely with thin-set first. Only apply as much thin-set as needed to lay a couple of tiles at a time.

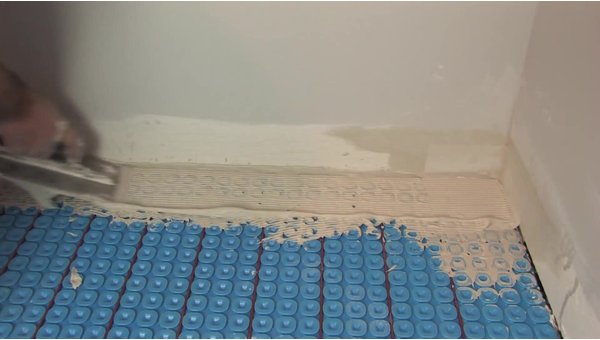

Waterproofing is recommended under and around tubs/showers. It’s also recommended wherever the tile could possibly be exposed to considerable amounts of water. Prodeso is naturally waterproof, but the corners and seams need to be treated with waterproofing tape and thin-set. (Use Pro WP Waterproofing Band 5“ - Soft polyethylene tape – to seal seams.)

Prodeso installation membrane does not eliminate the need for expansion joints (adhere to local codes).

Unroll the membrane the day before installation to flatten it and avoid any potential ‘memory’ due to environmental conditions.

1.25"

The wire spacing in the Prodeso Cable Installation Membrane is 3.75“, or every 3rd peg.

Yes, we offer several options to help make your floor heating system water resistant or waterproof. Our TempZone product line is designed for wet areas - making it completely safe for rooms that will have water on the floor at times or may experience leaks or flooding. We also offer waterproofing bands for our TempZone Cable + Prodeso Uncoupling Membrane system. Allowing you to waterproof all seams and the perimeters of the wall - guaranteeing that your floor heating system stays safe and prevents water from leaking to areas below.

Not a good choice for mosaic tile work, Prodeso requires 2“ x 2“ or larger tiles.
