Advanced Snow Melt Control - 100-277VAC
- Voltage: 100 - 277 VAC; 50/60 hz, 30 Amps

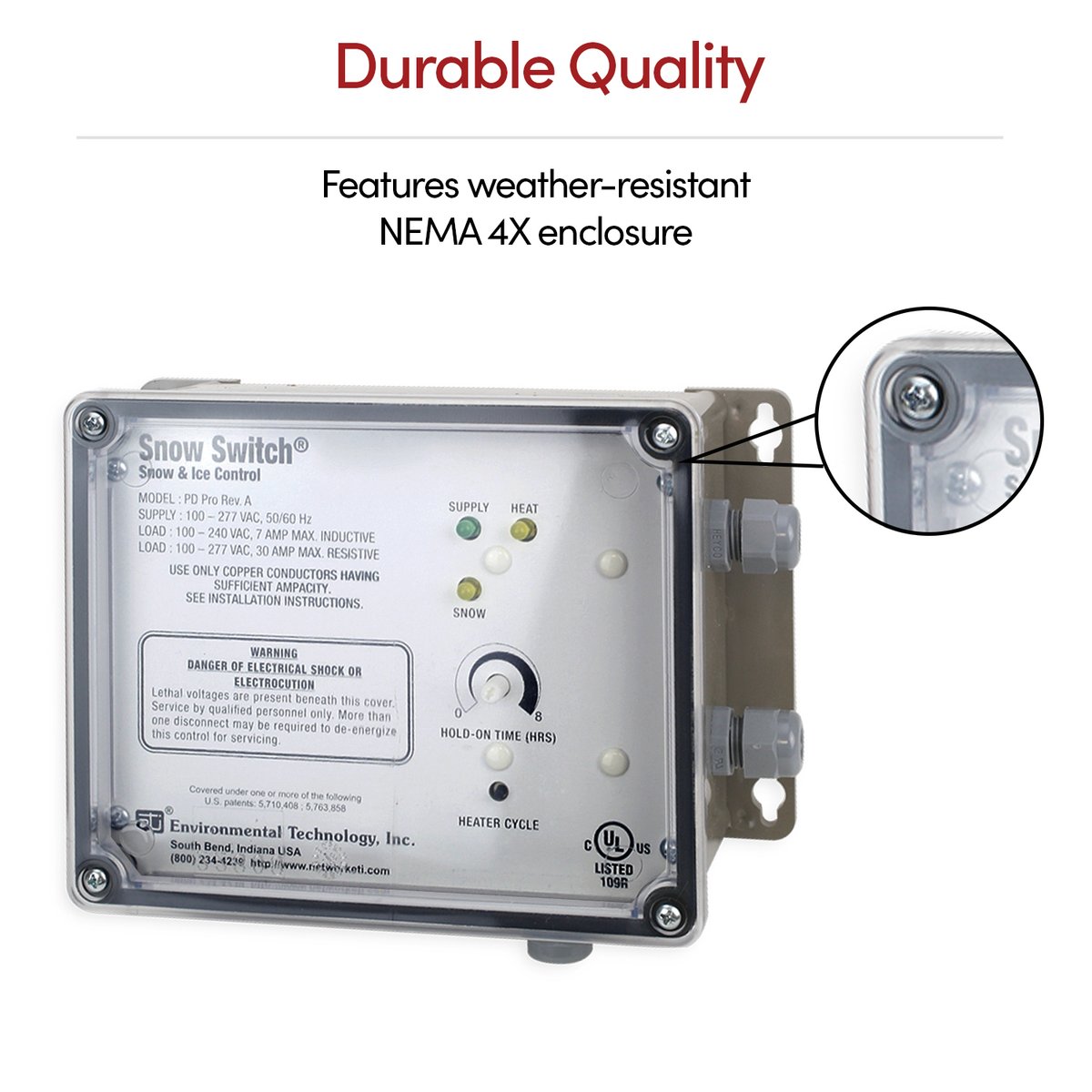

- Features weather-resistant NEMA 4X enclosure
- Supports up to 2 sensors (aerial, gutter, or pavement)
- Automatic and manual override operator controls
- 2-year warranty
Advanced Snow & Ice Melt Control Description

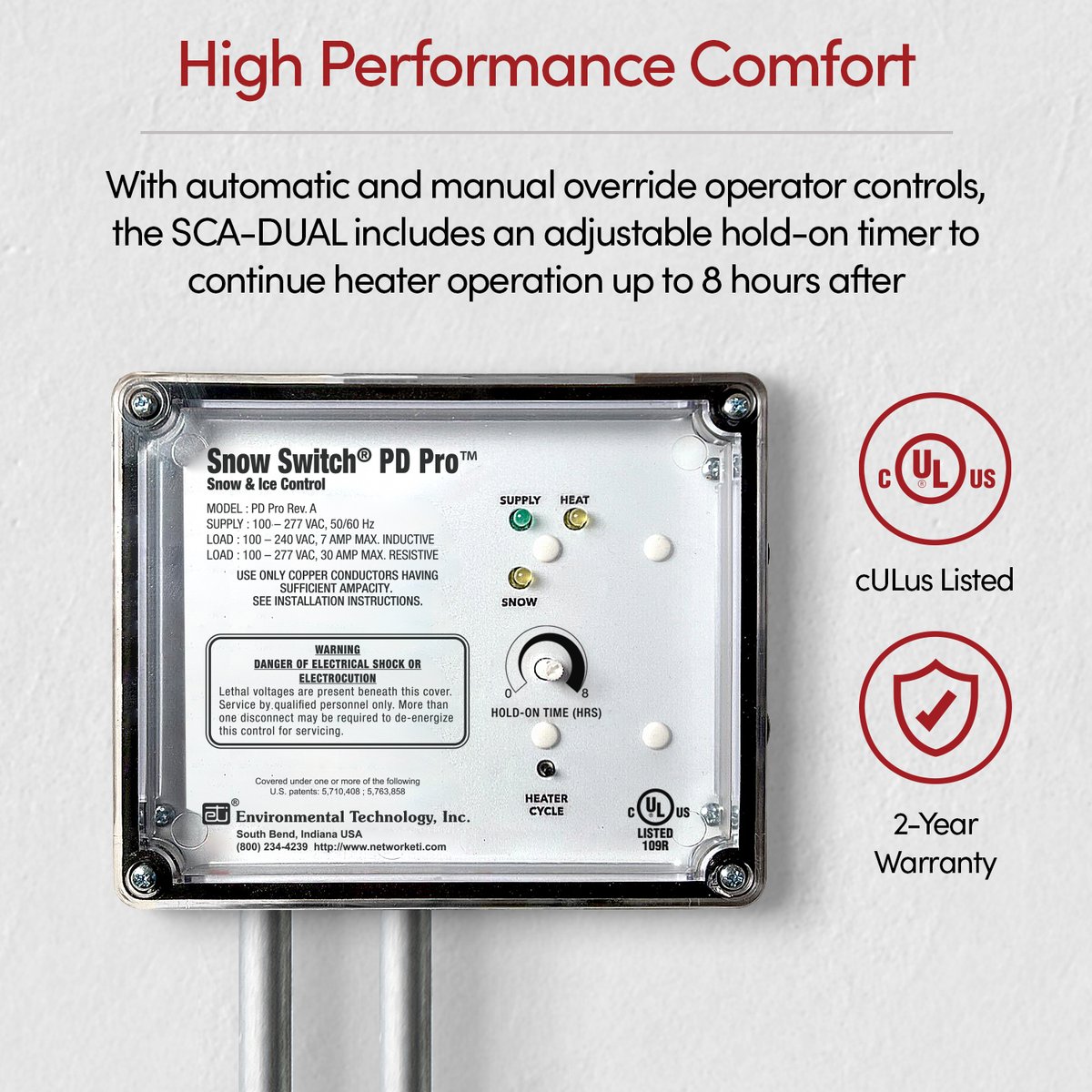

The SCA-DUAL provides for advanced control of snow melting and roof and gutter deicing systems to minimize operating costs. It operates electrically- and mechanically-held contactors for pilot duty applications. With automatic and manual override operator controls, the SCA-DUAL includes an adjustable hold-on timer to continue heater operation up to 8 hours after snow and ice accumulation stop to ensure complete melting. Featuring a weather-resistant NEMA 4X enclosure, this unit handles resistive loads up to 30 amps and operates at 100 - 277 Vac and 50/60 Hz. The SCA-DUAL is cULus listed. Additionally, it has a maximum 2 sensor capability and can be used with aerial, gutter, or pavement sensors.
|Adjust After-Run Time||true|
|Air Temp Sensor||true|
Warranty / Certifications
|Area of Use||Non-hazardous locations|
|Ingress Protection (IPxx) Rating||IP66|
|Compatible Sensors and Accessories||RCO, AIR-SS, GTR-SS, SC-SS-PAV-6E-KIT|
|Control Options||Automatic with manual override|
|Max Number of Sensors||2|
|Maximum Current||30 A|
|Mounting Method||Wall Mounted|
|Voltage||100 - 277 VAC|
|Depth||4.375 in / 112 mm|
|Height||5.5 in / 140 mm|
|Width||8.125 in / 207 mm|
Documents & Manuals
- Sensor Placement for Snow and Ice Melt Applications (English)
- Snow Melting RCO Specifications (English)
- SCA-DUAL Controller Wiring Diagram (English)
- SCA-DUAL Controller With Relay Wiring Diagram (English)
- Snow Melt 120–277V SCA-DUAL with Relay Wiring Diagram (English)
- Advanced SCA-DUAL Roof & Gutter Control Sell/Specs Sheet (English)
- Advanced SCA-DUAL Snow Melt Control Sell/Specs Sheet (English)
- Snow Melt Controller Comparison Sheet USA (English)
Customer Questions & Answers
Advanced Snow & Ice Melt Control has 26 Questions and Answers.
Is it okay to cut the heating cable if it is too long for the application for which it was designed?
Never cut the heating cable. A heating cable will not work if it has been cut. If the heating cable is too long, call WarmlyYours to consult with a technician who will guide you in utilizing the additional length of cable.
The material costs are similar. However, electric systems are easier to install, with fewer components and significantly lower maintenance costs. Electric systems will run for a shorter period of time to give the same level of performance but with much higher energy efficiency (typically 95%-98% efficient). Controls and sensors required for the two types of systems are very similar. Electric systems do not usually require slab insulation and do not create the concerns typically associated with hydronic systems. These concerns include, but are not limited to, return temperatures, flue gas venting, waterway shrinkage and property damage caused by leaking pipes or tubes.
Yes. The manufacturer's splice that connects the heating element to the cold lead should be entirely embedded in a noncombustible material (like asphalt, concrete, or mortar) within the outdoor surface that is being heated.
Never cross, overlap, or allow the heating cables to touch each other. Doing so will quickly cause a circuit failure due to excessive heat build up. Always follow the product instructions and/or design layout plan to ensure the cable is installed with the correct spacing required for proper operation.
The electrician may shorten the cold lead wires during the installation. Any lead wire extensions/splices must be made in a junction box in accordance with the installation instructions, and must comply with all national and local electrical codes. Never cut the heating cable.
View all 26 Questions and Answers
