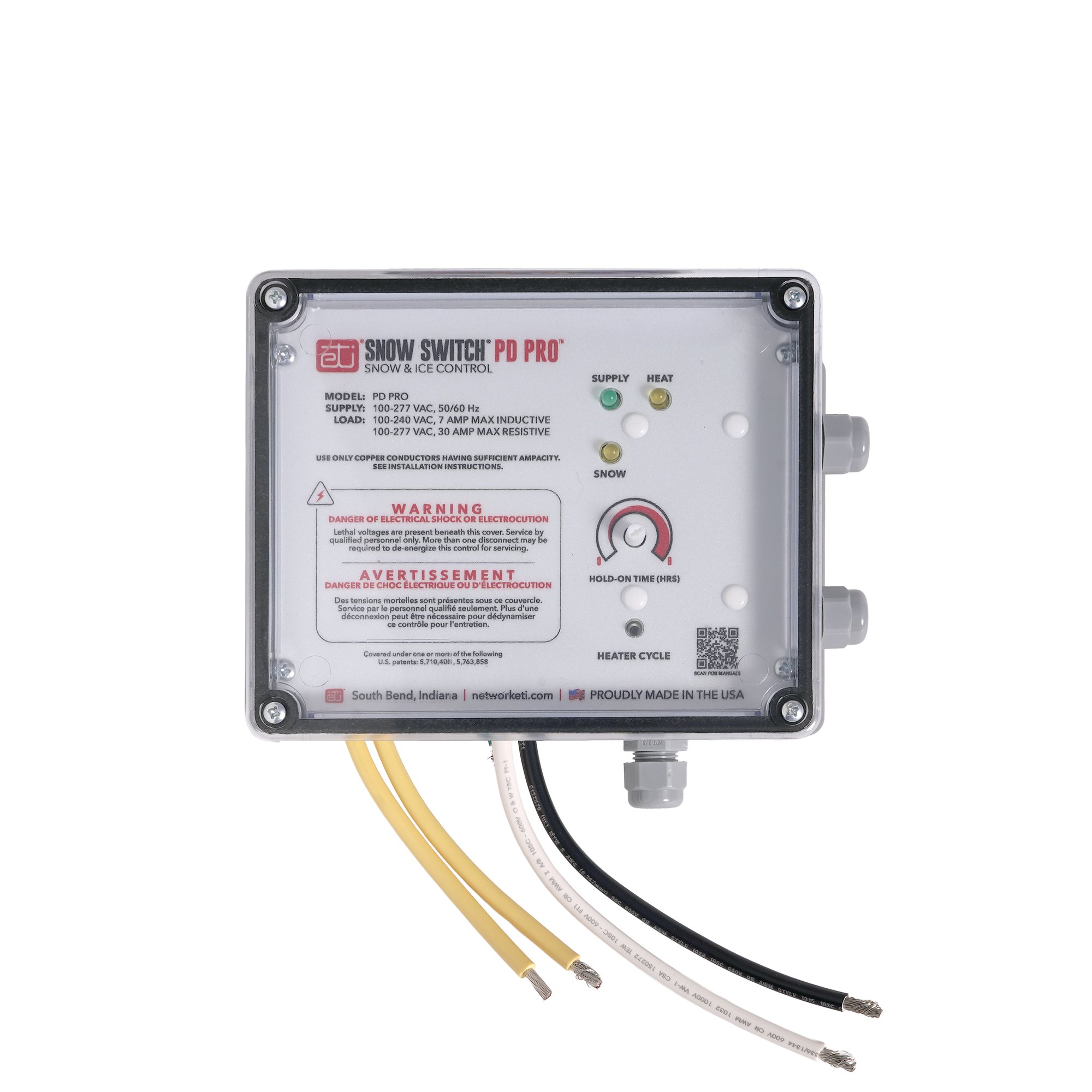

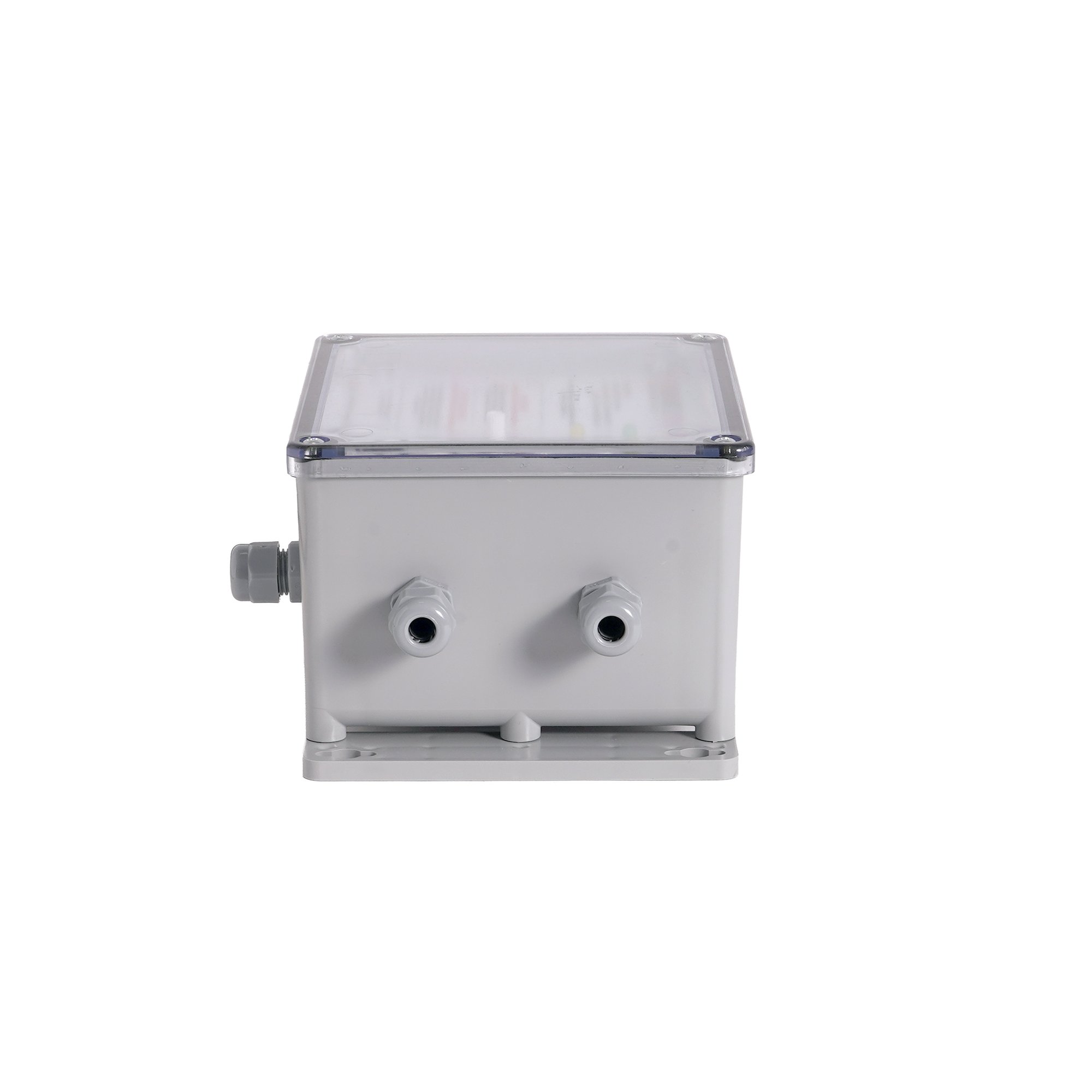

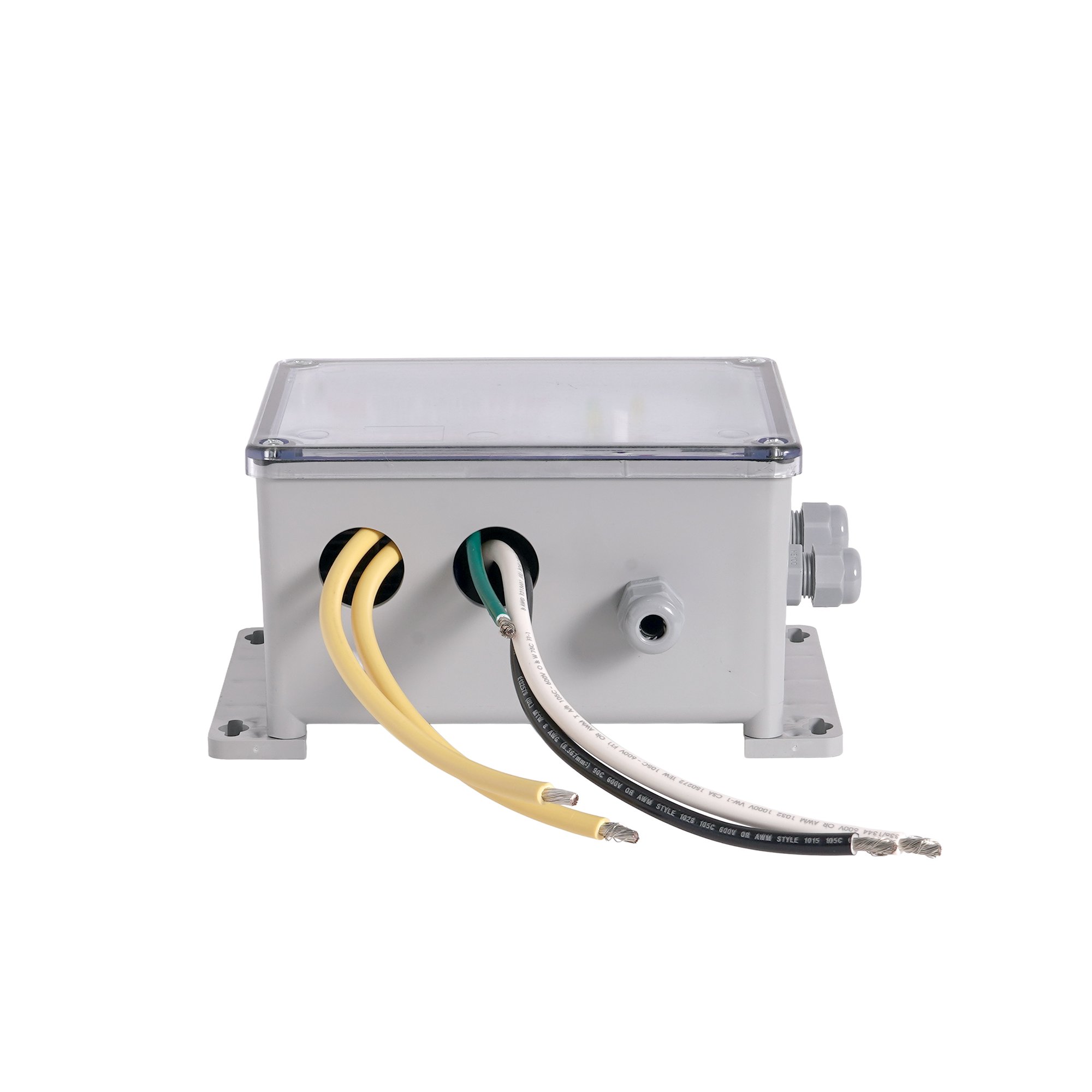

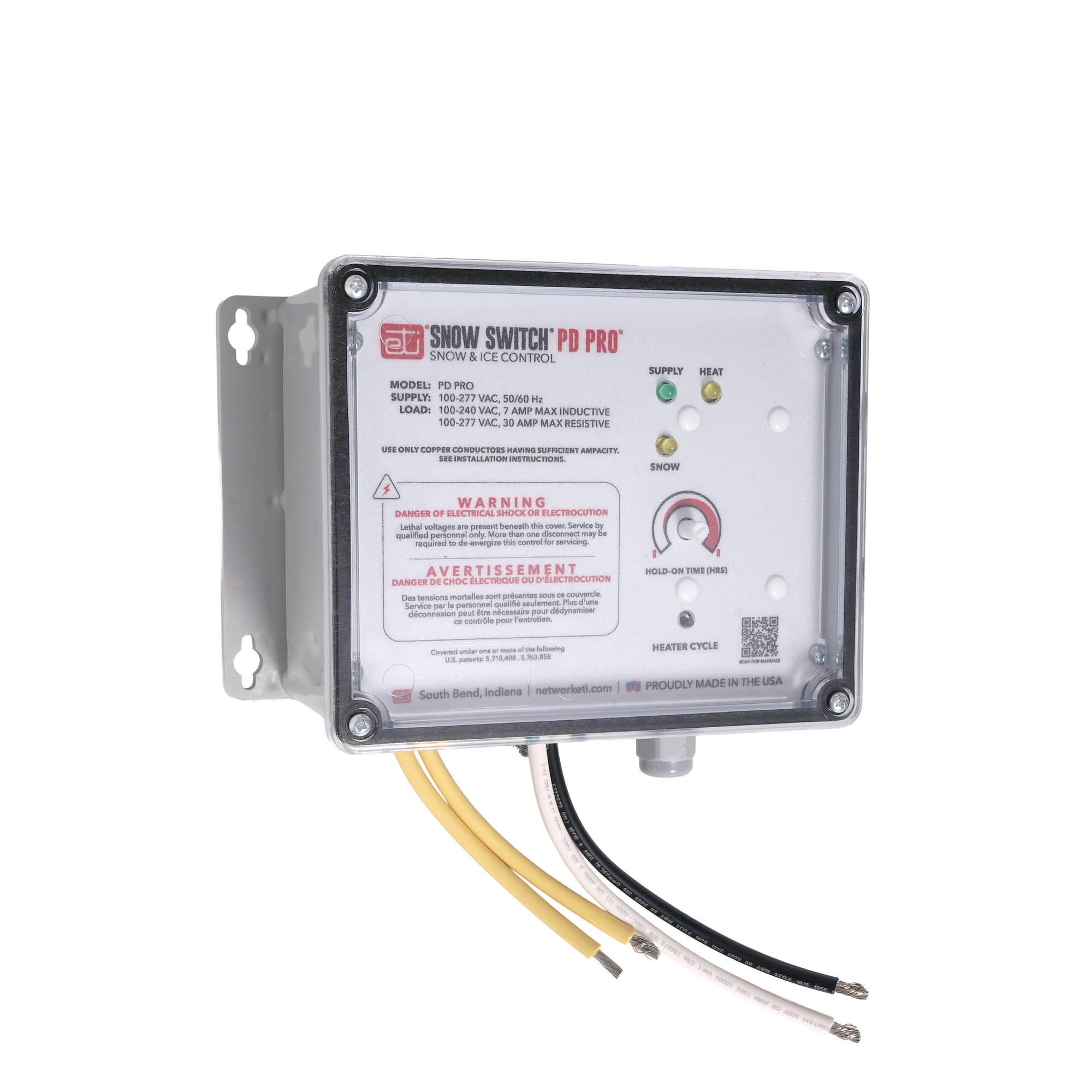

Advanced Snow and Ice Melt Control - 100-277VAC

$969
  • Voltage: 100 - 277 VAC; 50/60 hz, 30 Amps

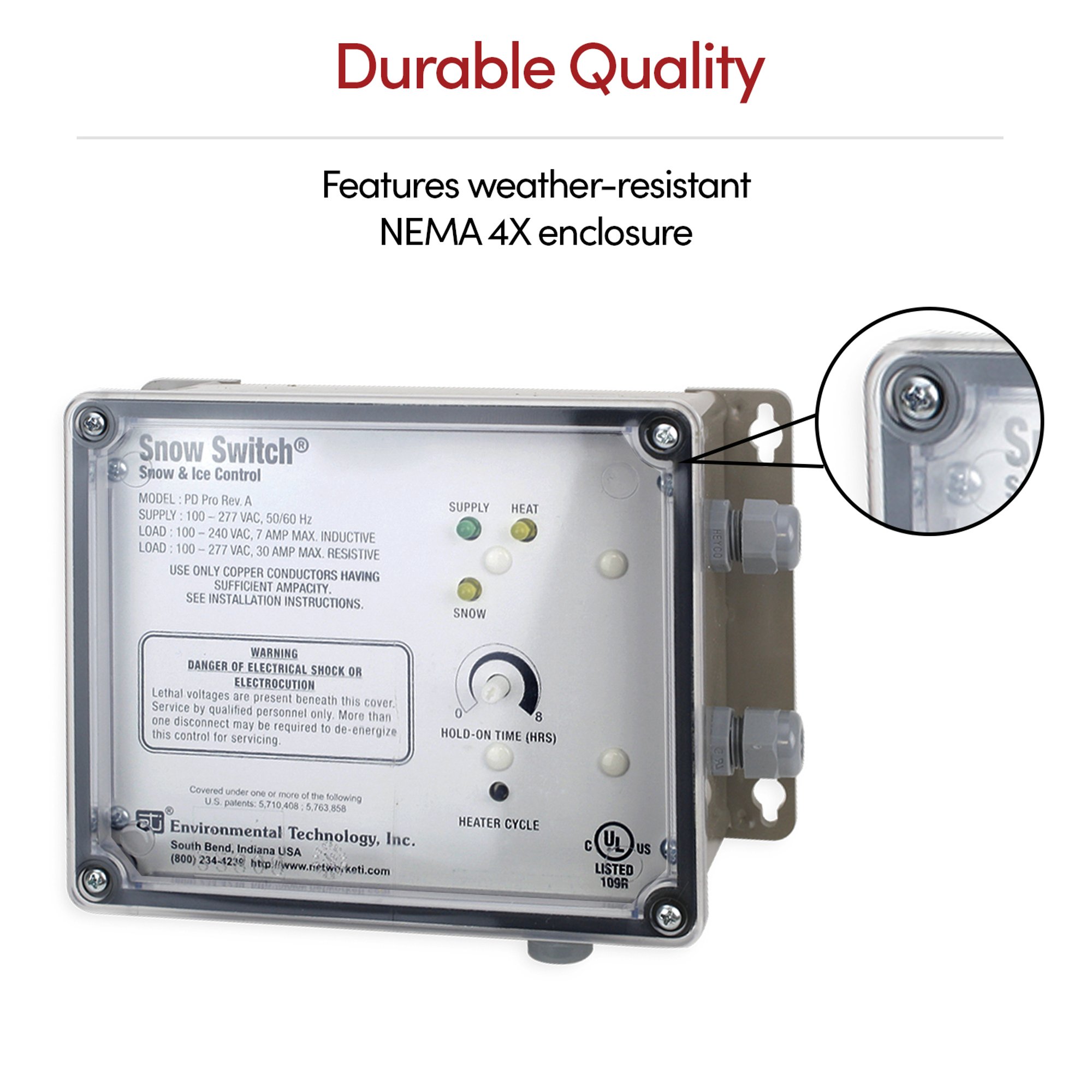

  • Features weather-resistant NEMA 4X enclosure
  • Supports up to 2 sensors (aerial, gutter, or pavement)
  • Automatic and manual override operator controls
  • 2-year warranty
Need help? Call our experts at (800) 875-5285
Support Page
Jump to

Advanced Snow & Ice Melt Control Description

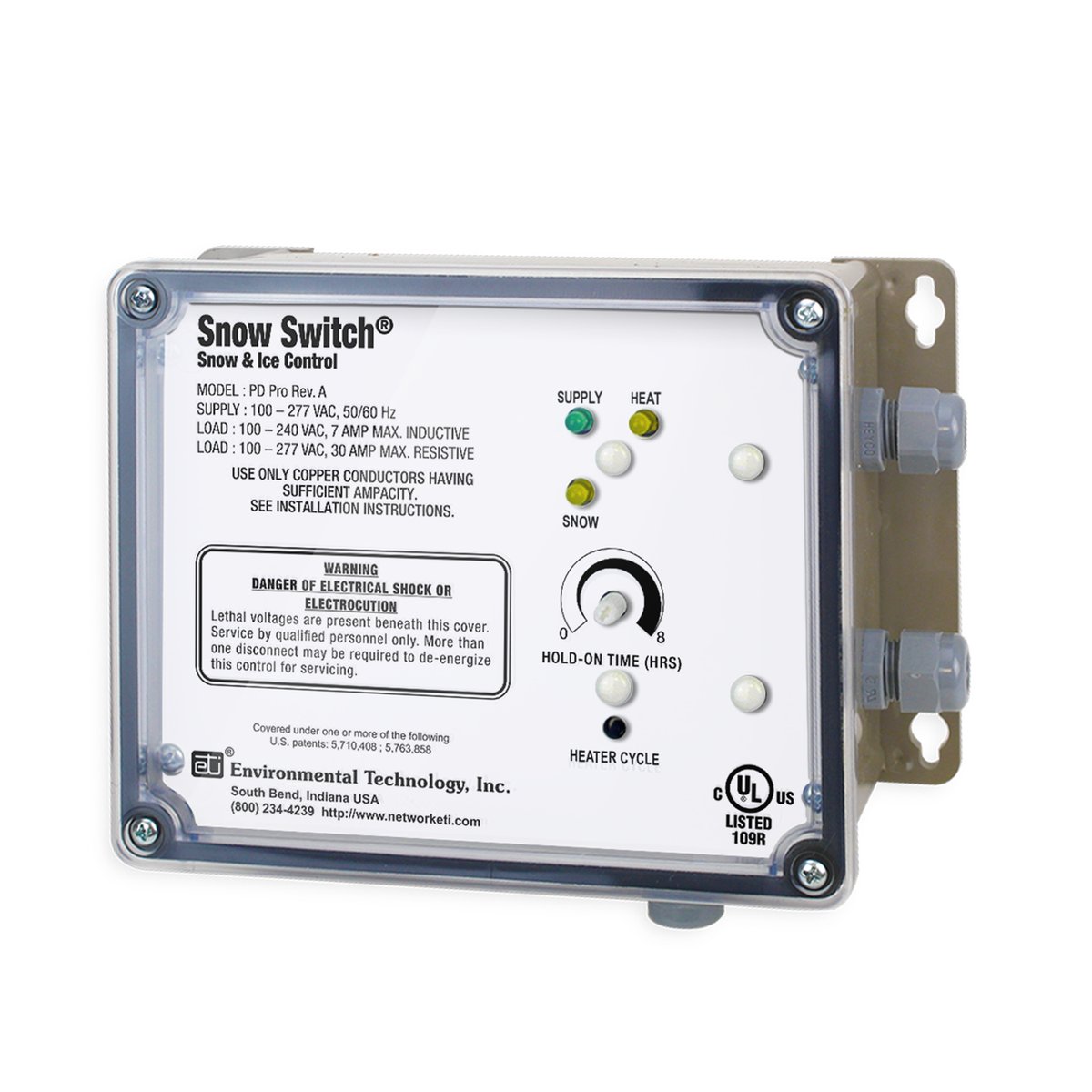

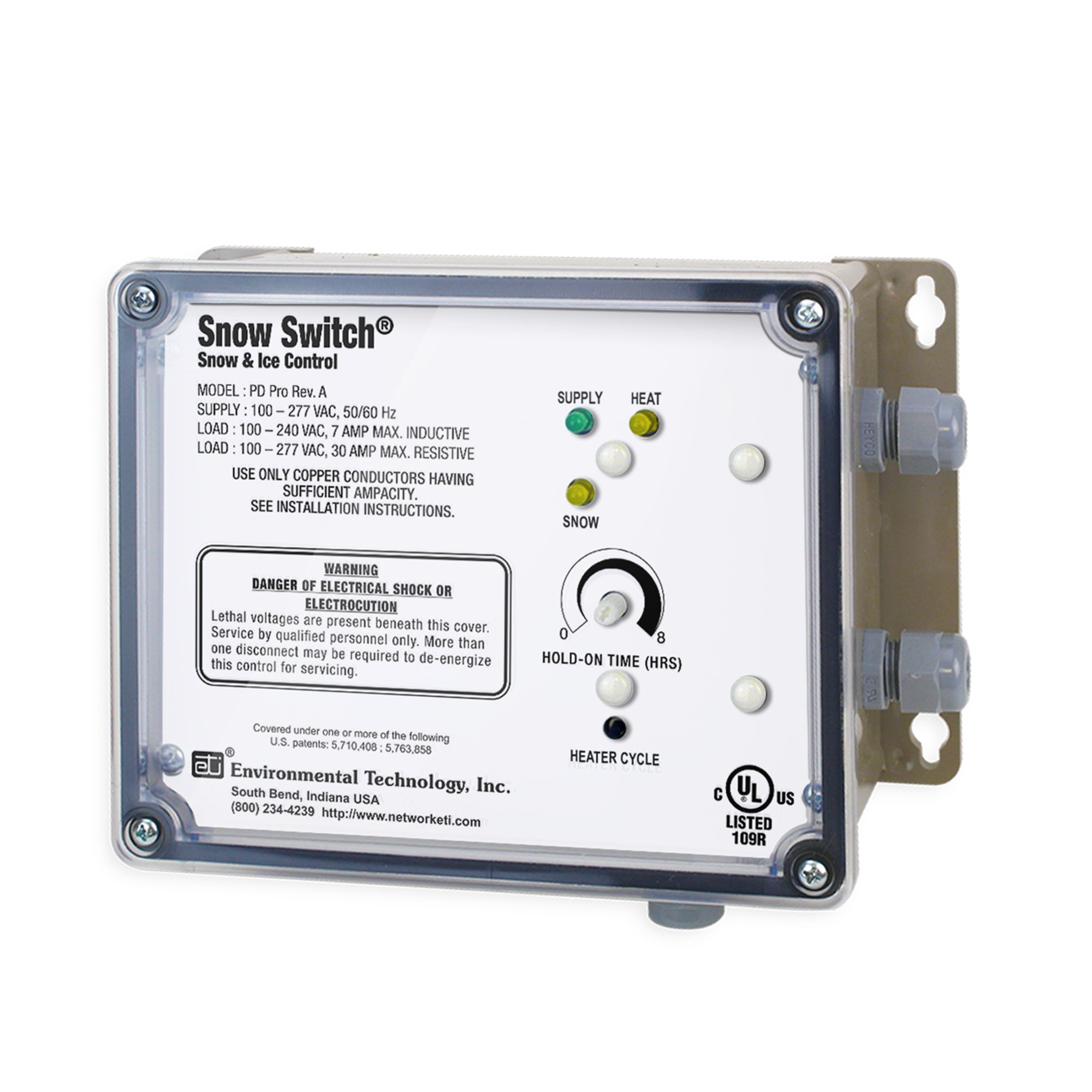

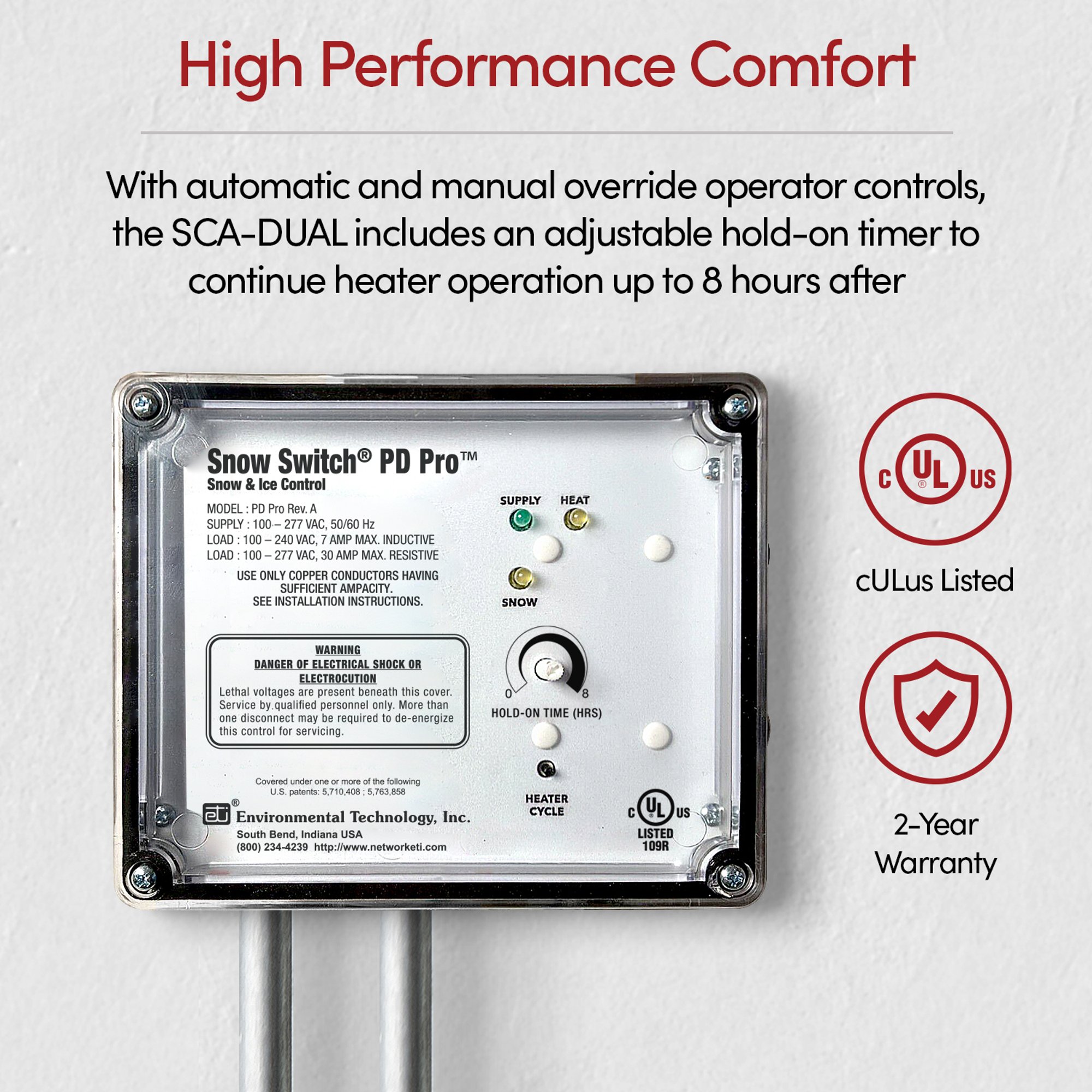

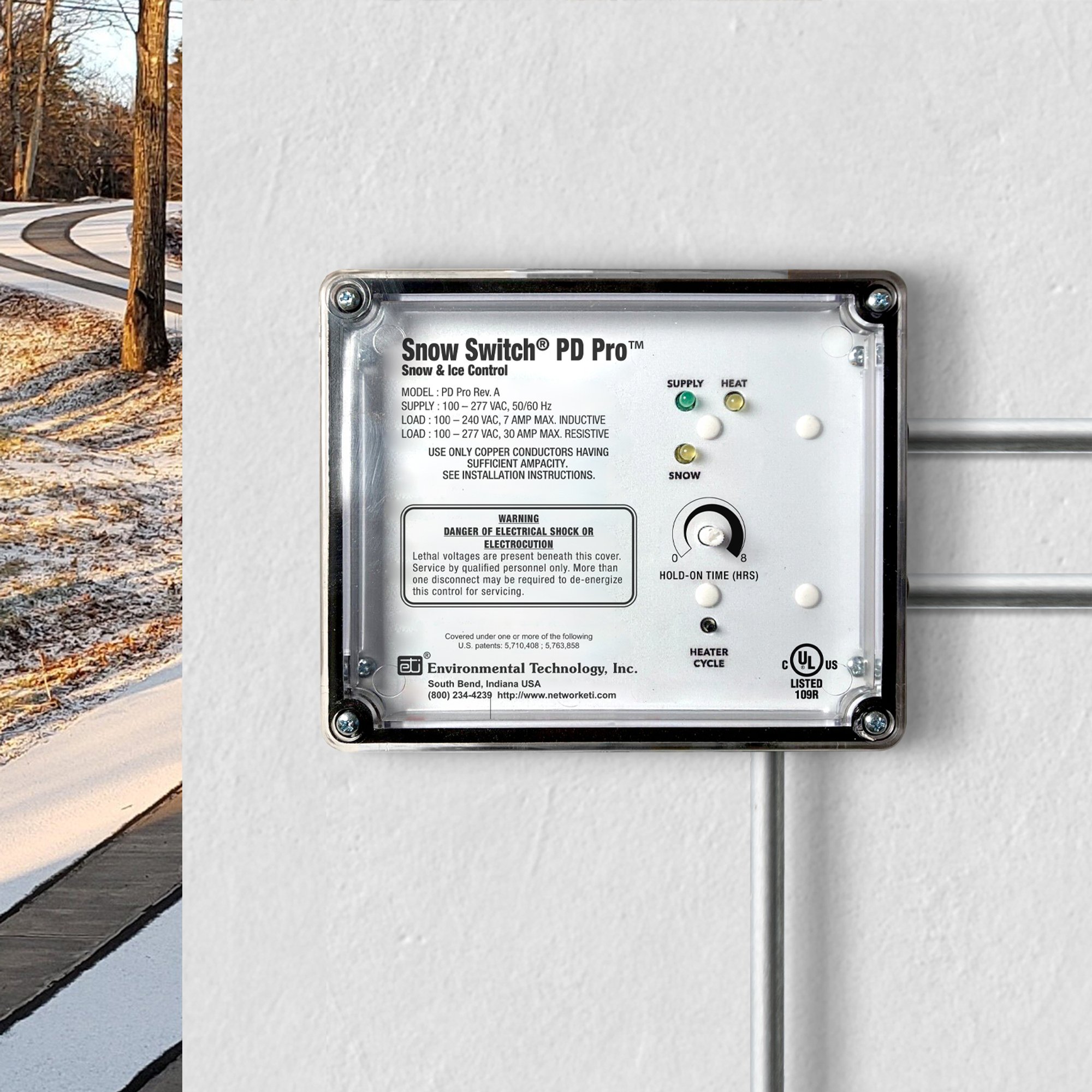

The SCA-DUAL provides for advanced control of snow melting and roof and gutter deicing systems to minimize operating costs. It operates electrically- and mechanically-held contactors for pilot duty applications. With automatic and manual override operator controls, the SCA-DUAL includes an adjustable hold-on timer to continue heater operation up to 8 hours after snow and ice accumulation stop to ensure complete melting. Featuring a weather-resistant NEMA 4X enclosure, this unit handles resistive loads up to 30 amps and operates at 100 - 277 Vac and 50/60 Hz. The SCA-DUAL is cULus listed. Additionally, it has a maximum 2 sensor capability and can be used with aerial, gutter, or pavement sensors.

Specifications

Warranty / Certifications

Approvals cULus listed
Area of Use Non-hazardous locations
Ingress Protection (IPxx) Rating IP66
Warranty 2 years
Waterproofing NEMA 4X

Installation

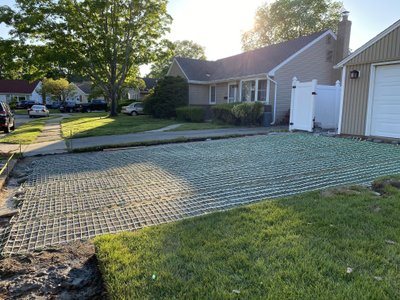

Best Use Most Popular Control For Paver Or Concrete Projects

Electrical

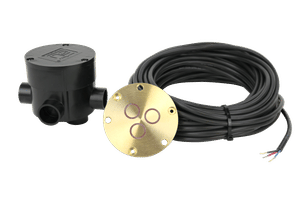

Compatible Sensors and Accessories RCO, AIR-SS, AIR-SS-2, GTR-SS, SC-SS-PAV-6E-KIT
Connection Method Hardwired
Control Options Automatic with manual override
Max Number of Sensors 2
Maximum Current 30 A

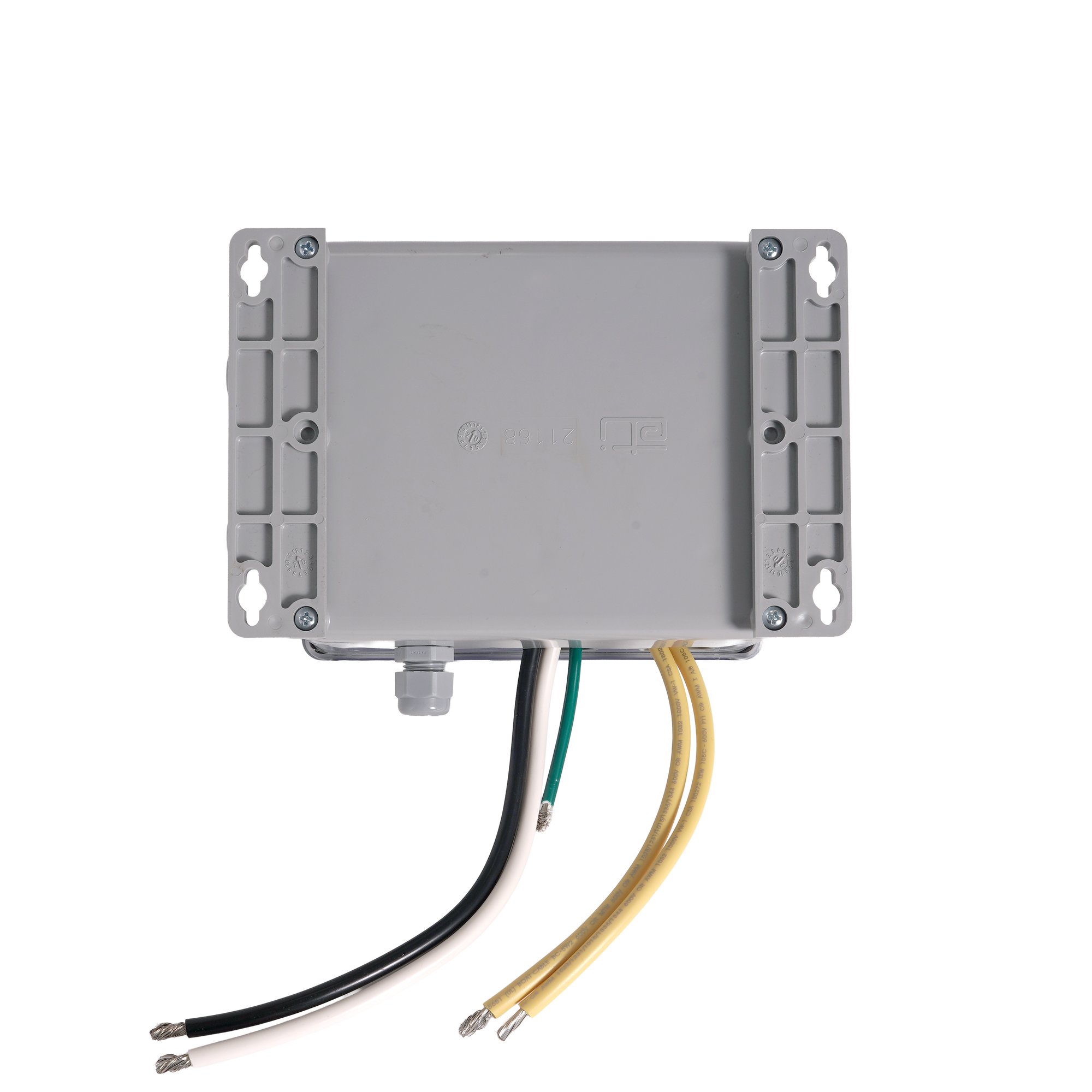

Mounting Method Wall Mounted
Voltage 100 - 277 VAC

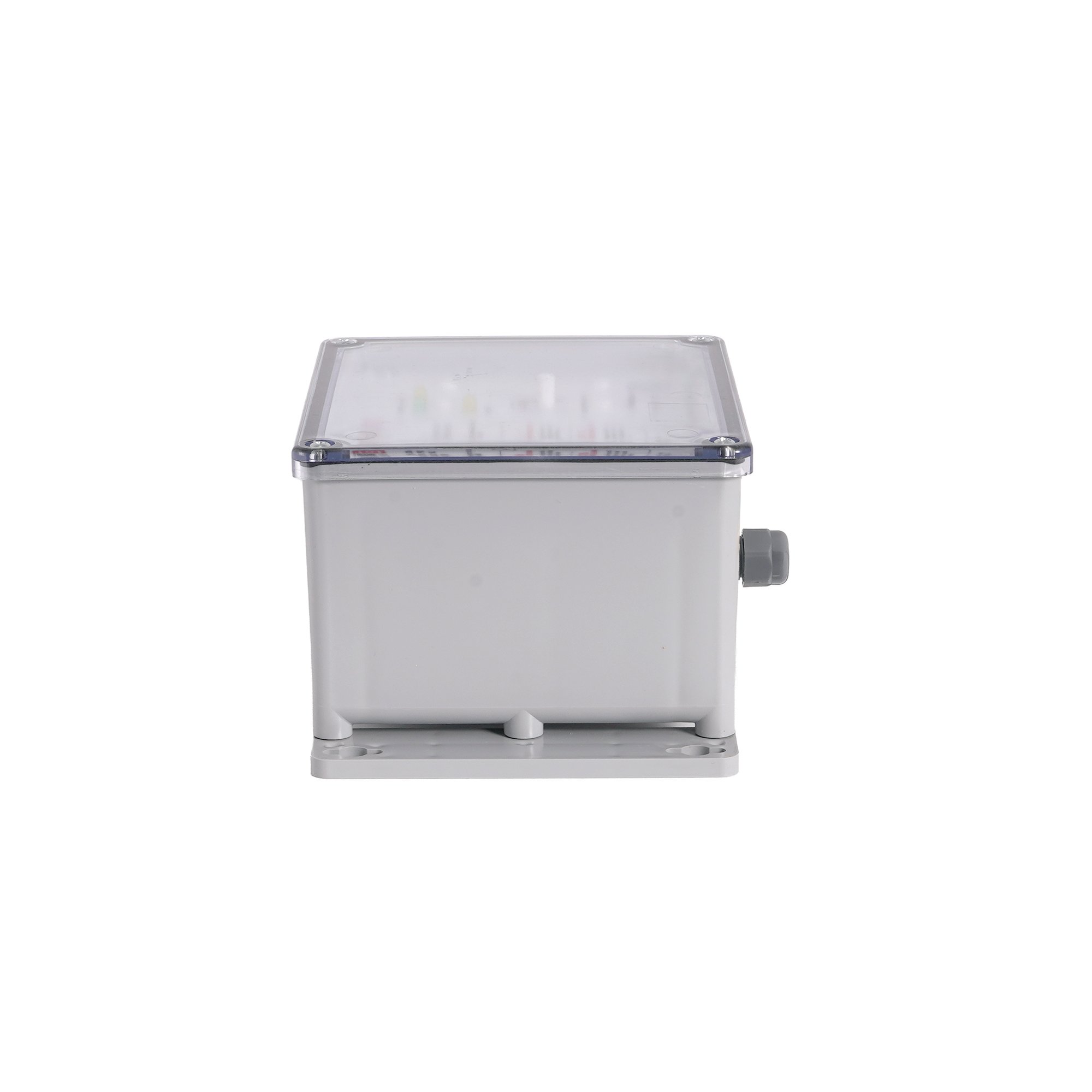

Product Dimensions

Depth 4⅜″
Height 5½″
Weight 2.9 lbs
Width 8⅛″

Identifiers

SKU SCA-DUAL
UPC (GTIN-12) 881308034412

Frequently Asked Questions

Showing all 5 questions

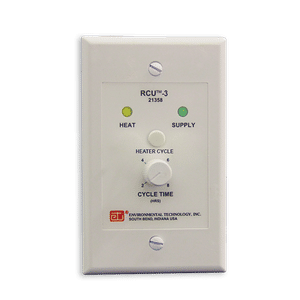

It can go outdoors provided weatherproof fittings are used.  The optional RCO switch should be considered for remote operation from an indoor location.

1 person found this helpful Was this helpful? Yes No

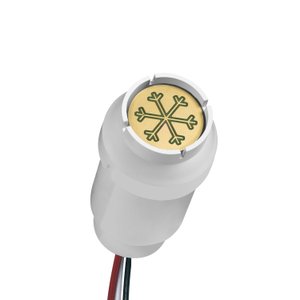

The AIR-SS-2 can be mounted at a distance up to 500 feet away from the controller using 22-gauge wires and up to 1000 feet using 18-gauge wires.

Was this helpful? Yes No

Our systems can handle low temperatures, but many controls come equipped with a Low-Temperature Lockout Feature. This feature prevents the system from running in very low temperatures. At very low temperatures it can become difficult for the system to effectively melt the snow. It is however possible to turn off this feature should you need the system to keep running during such low temperatures.

14 people found this helpful Was this helpful? Yes No

All of our automatic controllers have a Hold-on time feature after the initial warming up of the snow melt system. This feature ensures that all the snow is melted from the surface, and also that the system continues to operate and evaporate the surface water without it refreezing.

9 people found this helpful Was this helpful? Yes No

When the design requirement's amp draw exceeds the selected controller's capacity.

5 people found this helpful Was this helpful? Yes No
