TempZone Flex Roll Kit 1.5 x 38 ft (57 sqft) with nTrust 2.0 Touch Nonprogrammable Thermostat, 120V, 7.13A




Request a Free Product Sample
Support Page

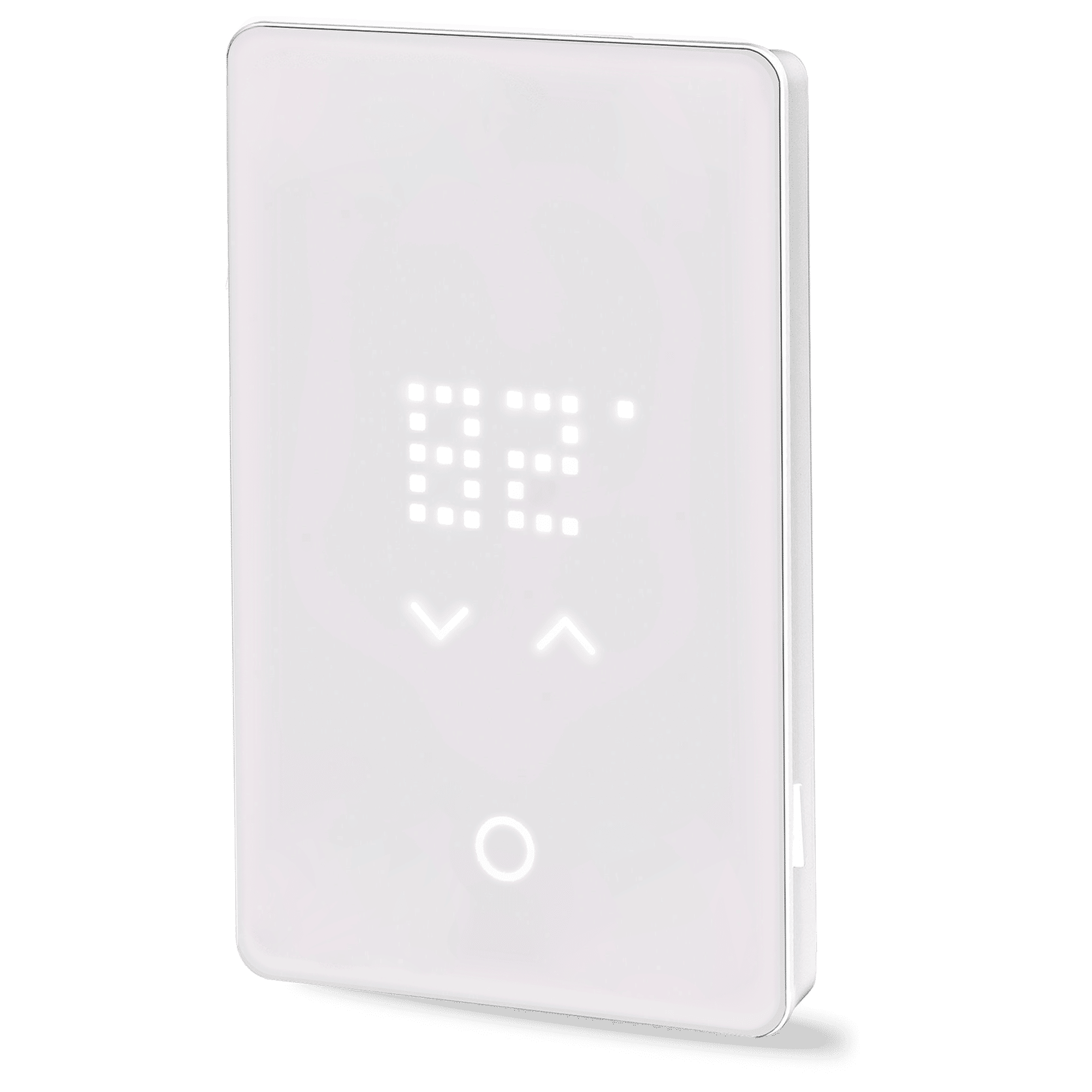

TempZone Flex Roll Kits with nTrust 2.0 LED Touch Thermostat Description

Specifications

Electrical (TRT120-1.5x38)

Amps 7.13 A
Cold Lead Wire Gauge 17 AWG
Floor Load 0.86 kW
Ohms 16.84 Ω
Ohms Per Ft 0.076 Ohm/ft
Thermal Power 0.86 kW
VOP 64
Voltage 120 V
Watts 855 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications (TRT120-1.5x38)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Warranty / Certifications (UTN5-4999)

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Warranty Limited 3-year warranty and lifetime technical support

Performance (TRT120-1.5x38)

BTU Per Hour 2917 Btu

Electrical (UTN5-4999)

Battery 5 year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Supply 120 VAC, 208 VAC, 240 VAC (50/60Hz)

Product Dimensions (TRT120-1.5x38)

Cold Lead Length 15′
Coverage 57 ft²
Heating Cable Length 222.14′
Heating Element Thickness 1/8″
Length 38′
Weight 6.2 lbs
Width 1′ 6″

Appearance (TRT120-1.5x38)

Color Green

Appearance (UTN5-4999)

Color White Acrylic
Display LED Light Through

Product Dimensions (UTN5-4999)

Depth 1.73″
Installed Depth 0.46″
Length 4.98″
Weight 0.6 lbs
Width 3.09″

Thermostat (UTN5-4999)

Floor Sensor Compatibility 10k ohms or 12k ohms
Includes Floor Sensor 10k ohms, 15′ lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F

Installation (TRT120-1.5x38)

Floor Types Tile, Marble, Stone, Vinyl, LVT, LVP, Wood, Bamboo, Carpet, and more

Logistics (TRT120-1.5x38)

Package Contents (1) TempZone Flex Roll 120V 1.5′ x 38′ 57 sq ft 7.2A (TRT120-1.5x38); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers (TRT120-1.5x38)

SKU TRT120-1.5x38
UPC (GTIN-12) 881308021399

Identifiers (UTN5-4999)

SKU UTN5-4999
UPC (GTIN-12) 881308080426
