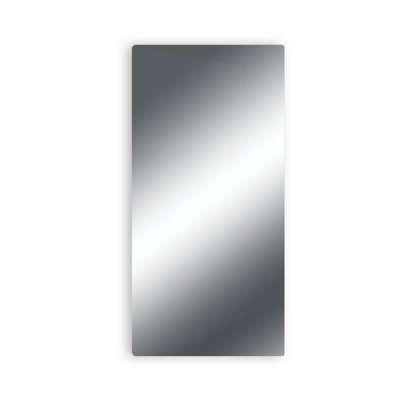

WarmlyYours Lava Glass Mirror Kit: includes 1000W radiant panel, thermostat and two lava bars flat (dimensions 63″ X 25″), 120V


Part Number: IP-1000-LV-MIR-KIT
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (7)

publication
Publications and Manuals (8)

specifications
Specifications (17)

Videos (3)

Articles (8)

Related Items (2)

Create a new Support Request

Common Support Questions


If you have a room with "average" insulation levels, take the square footage and multiply it by 7 or 8 watts per square foot. That will provide a good estimate of the watts needed to heat that space.

Need more help? View support options

Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the radiant panel should be aimed onto the area with more use, since that will be the surface that will warm up first.

Need more help? View support options

The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.

Need more help? View support options

We recommend an open 1.5" (3.5cm) space around the edge of the LAVA for air circulation and easier installation. UL requires that the On/Off switch must be operable and visible, and no flammable materials may be used around the LAVA.

Need more help? View support options

Please abide by local electrical code guidelines. Lava may not be installed in "wet locations" such as showers or saunas. The top, bottom, and sides must not be closer than 12 inches from any other object or surface in order to effectively radiate heat. The Lava panels may not be placed behind doors. We do not recommend installing Lava units on ceilings.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Amps 8.33 A
Connection Method Hardwired
Ohms 14.4 Ohm
Voltage 120 VAC
Watts 1000 W

Performance

BTU Per Hour 3412
Maximum Surface Temperature 203 F°

Appearance

Finish Mirror
Version Lava® Mirror - 63" X 25"

Product Dimensions

Installed Depth 2.5 in
Length 5′3″
Size (Overall) 63" x 25" (1000W, 8.3A)
Weight 80.4 lbs
Width 2′1″

Identifiers

Model Mirror
SKU IP-1000-LV-MIR-KIT
UPC (GTIN-12) 881308029883
