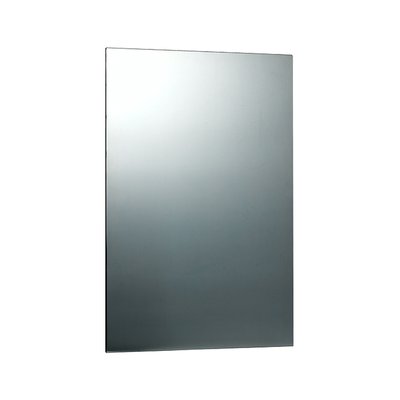

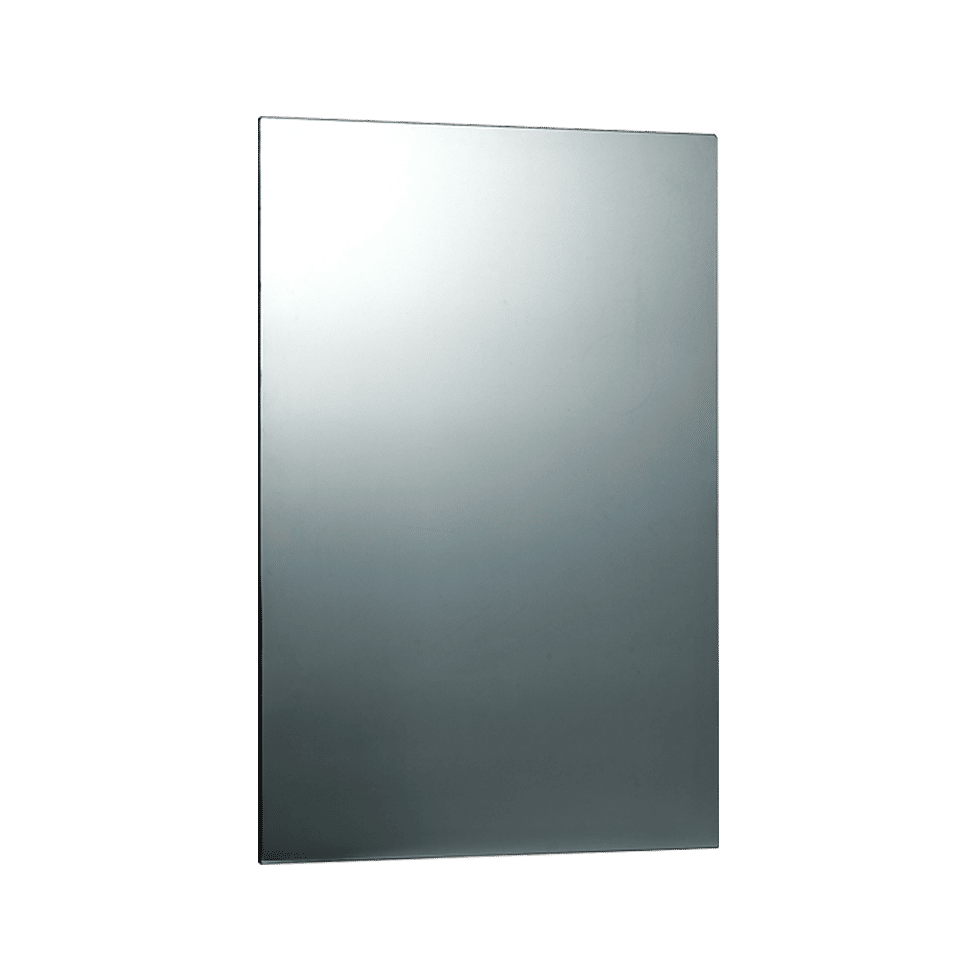

Ember Mirror Radiant Panel - 600W - 35ʺ x 24ʺ - Hardwired
Part Number: IP-EM-GLS-MIR-0600-HW
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (6)
Publications and Manuals (4)
Specifications (21)
Videos (4)
Articles (5)
Related Items (7)
Similar Items (2)
Create a new Support Request
Common Support Questions
Radiant panels using infrared heating can get very hot on the surface (up to 248° F). For safety, it is recommended that your radiant panel be mounted out of the reach of children.
Need more help? View support options
We do not have a Radiant Panels Running Cost Calculator. However, this can be determined easily by taking the panel’s wattage, dividing it by 1000, and then multiplying the result by the local kW/hr cost – then take this hourly cost and multiple by 730 hours to get a monthly estimate.
Need more help? View support options
We do not recommend controlling Ember radiant panels with dimmers.
Need more help? View support options
Publications and Manuals
Specifications
Electrical
| Amps | 5 A |
| Connection Method | Hardwired |
| Cord Length | 6′ |
| Ohms | 24 Ω |
| On/Off Switch | No |
| Voltage | 120 V |
| Watts | 600 W |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| Warranty | 5 years |
Performance
| BTU Per Hour | 2047 Btu |
| Surface Safety Limit | 248 °F |
Logistics
| Country of Origin (COO) | China |
Product Dimensions
| Depth | 1.5″ |
| Length | 35.4″ |
| Width | 23.6″ |
Appearance
| Finish | Glass Mirror |
| Model | Ember Glass Mirror - 35″ x 24″ |
Installation
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-GLS-MIR-0600-HW |
| UPC (GTIN-12) | 881308058623 |
