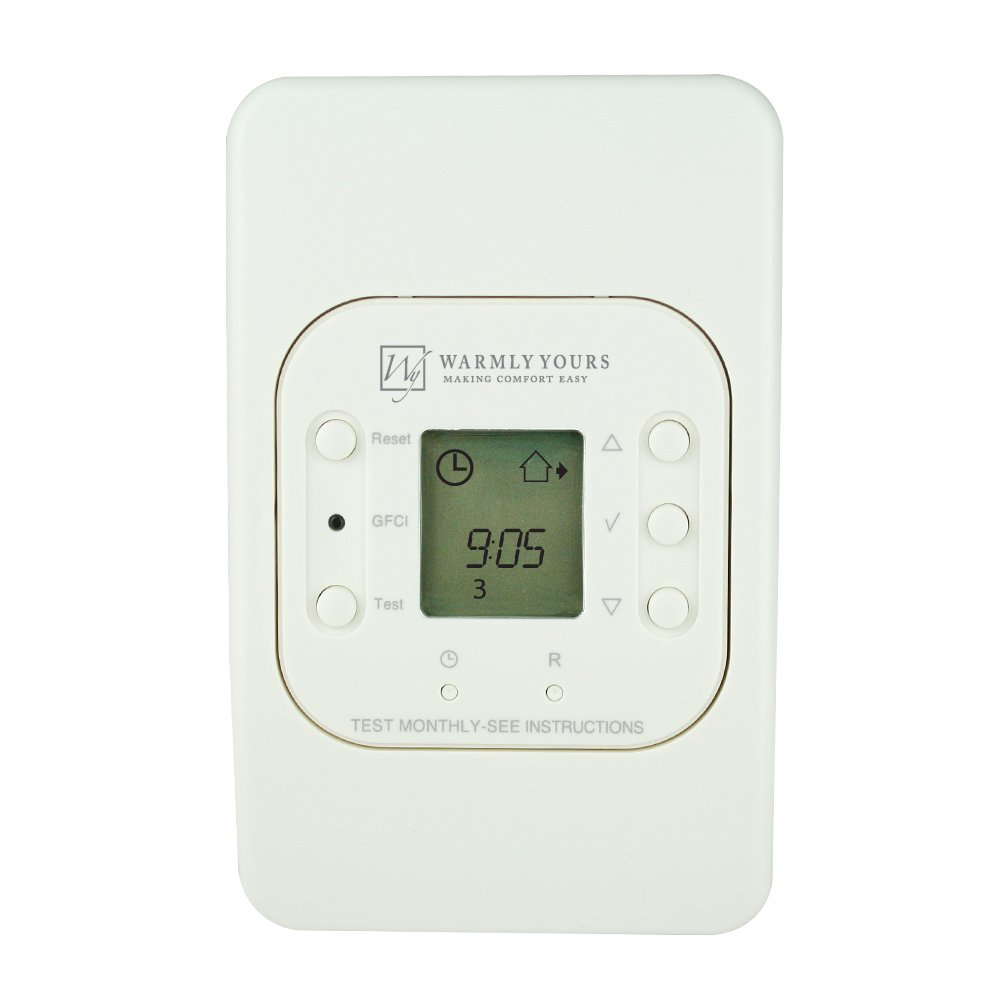

Thermostat EnergyStat 120V/240V OJ-DUAL
This support page provides publications, manuals, specifications, support articles, and common support questions
Common Support Questions
Breaker and wire sizes are selected based on the total amperage of the heating system connected to a single thermostat. This information is on the heating product's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.
Need more help? View support options
12k ohms floor sensor only
Need more help? View support options
Solution:
The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.
Need more help? View support options
All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".
Please see this video on how to install a WarmlyYours nSpiration Series thermostat: https://www.warmlyyours.com/video-media/wire-nspiration-thermostat-to-electric-floor-heating-roll
Need more help? View support options
Publications and Manuals
Operation Manuals

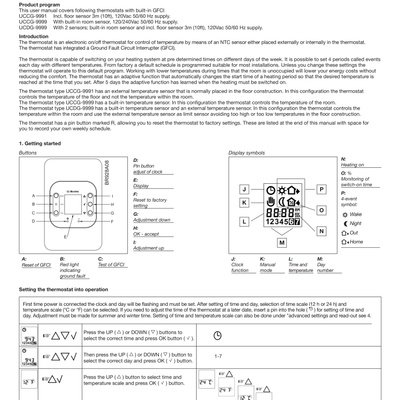

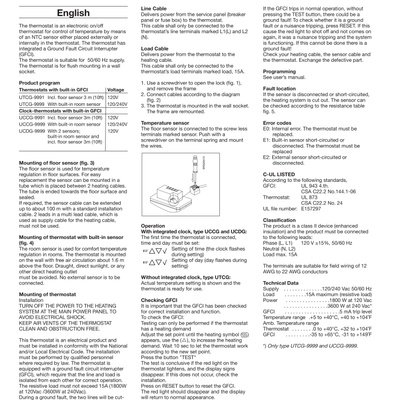

EnergyStat™ Installation Manual (Legacy) (English)EnergyStat™ Instructions (Legacy) (English)

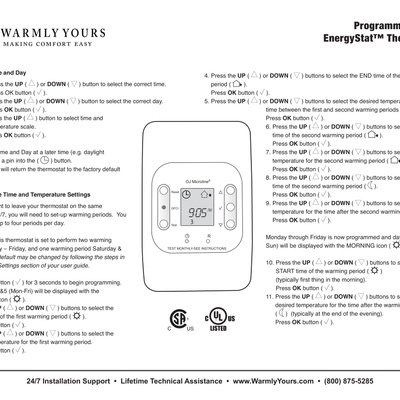

EnergyStat™ Quick Programming Guide (Legacy) (English)
Wiring Diagrams

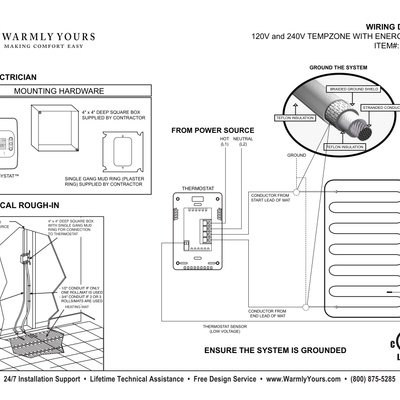

EnergyStat™ (OJ-DUAL) Wiring Diagram with TempZone™ Single Conductor 120v / 240v (English)Specifications
Electrical
| Connection Method | Hardwired |
| Floor Sensor Compatibility | 12k ohms |
| Voltage | 120 VAC |
Logistics
| Country of Origin (COO) | Denmark |
Product Dimensions
| Depth | 2in |
| Installed Depth | 0.75in |
| Length | 0.1″ |
| Width | 0.1″ |
Identifiers
| SKU | OJ-DUAL |
| UPC (GTIN-12) | 881308010645 |
Warranty / Certifications
| Warranty | Limited 3-year warranty and lifetime technical support |
