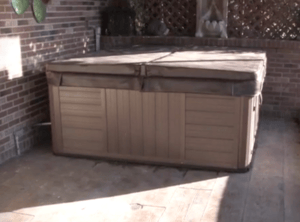

When the Billen family in Kildeer, Illinois decided to add a hot tub to their backyard, they saw an opportunity to do something special with the surrounding stamped concrete patio. Working with Tom Fitzgerald of Able Concrete Correction Inc. and WarmlyYours Lead Technical Support Manager Scott Rosenbaum, they installed a WarmlyYours Snow Melting Mat system beneath the decorative surface — turning a beautiful patio into a year-round outdoor living space.
The Project

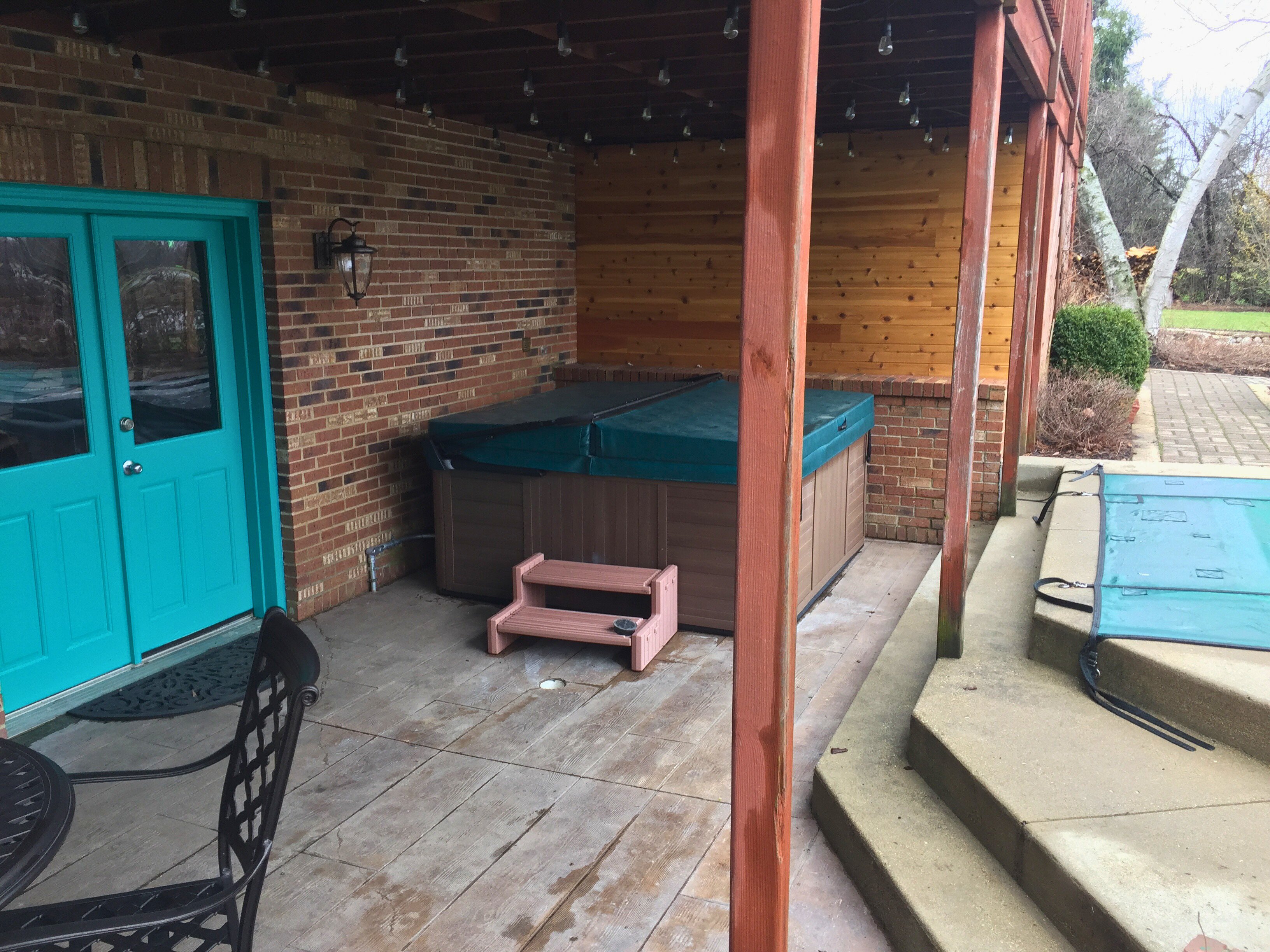

The patio features a 12-inch wide wood grain stamp from Butterfield Systems, giving it the look of natural wood planking. Beneath the surface, WarmlyYours snow melting mats keep the area clear of snow and ice throughout the Illinois winter — so the hot tub and patio remain accessible and safe no matter what the weather brings.
Project Showcase
See the full technical breakdown, including product lists and installation photos, for this Kildeer project.
The installation was completed in close coordination between the concrete contractor and WarmlyYours' technical team, ensuring the mats were properly positioned and the electrical connections were planned correctly before the concrete was poured.
Project Quick Facts
- Project Size: 259 sq. ft. of heated stamped concrete.
- System Used: Snow Melt PowerMat (240V) for full coverage.
- Operating Cost: Approximately $1.91 per hour during snow events.
- Control Type: Value Snow Melt Control with automatic moisture/temp sensors.
Why Choose WarmlyYours for Your Outdoor Project?
When investing in a permanent installation like a heated concrete patio, reliability is paramount. WarmlyYours provides comprehensive support from design to installation:

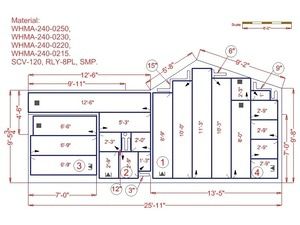

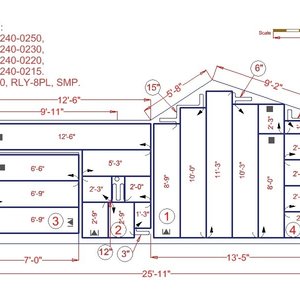

- Free SmartPlan™: A custom installation plan tailored to your specific project dimensions.
- 24/7 Technical Support: Expert guidance available whenever your contractor is on-site.
- Premium Components: Industry-leading mats and cables designed for the harshest environments.
Radiant Heat Benefits Beyond Snow Melting
- Extended Season: Use your patio well into fall and early spring by maintaining a warm surface.
- Surface Protection: Eliminates freeze-thaw damage and the need for corrosive de-icing chemicals.
- Increased Home Value: Heated outdoor spaces are a premium, high-demand feature for modern homebuyers.
- Energy Efficiency: Smart automatic controls ensure the system only runs when precipitation is detected.
Frequently Asked Questions
How long does it take to install a snow melting system?
Installation typically takes 3–5 days for pavers or 1–2 weeks for asphalt. Concrete projects usually require 2–4 weeks, including formwork, cable placement, and curing time. The exact timeline depends on project size, weather conditions, and whether you are installing in a new pour or a retrofit application.
Could this be installed on top of existing concrete?
Yes. After the snow melting cable is installed, ensure that a minimum of 1.5" (Max 3") of non-combustible medium (concrete, mortar, stone) is placed on top.
What type of concrete finish works best with snow melting?
Snow melting systems work with all standard concrete finishes: broom-finished, stamped, stained, polished, brushed, and exposed aggregate. The heating cables are embedded below the surface and are unaffected by the finish applied on top.
Stamped and decorative concrete are especially popular with snow melting because the system eliminates the need for salt or chemical deicers—which would damage decorative finishes over time.
Ready to Start Your Project?
For a full breakdown of how operating costs compare across regions, see our monthly cost guide.
To get started on your own custom snow melting project, use our Instant Quote tool or speak with one of our radiant heating experts today.
