Ember 800/600 Mirror Angle

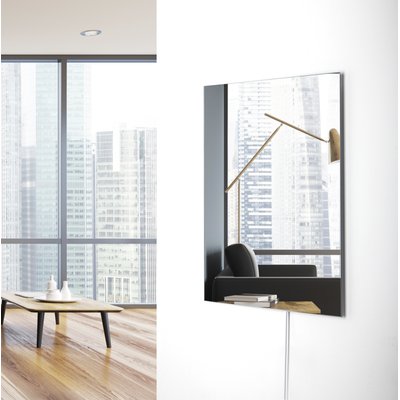

Ember Mirror Radiant Panel Heater - 600W - 35ʺ x 24ʺ - Dual Connection


Part Number: IP-EM-GLS-MIR-0600
This support page provides publications, manuals, specifications, videos, support articles, and common support questions

Common Support Questions


Radiant panels using infrared heating can get very hot on the surface (up to 248° F). For safety, it is recommended that your radiant panel be mounted out of the reach of children.

8 people found this helpful.  Did you find this helpful? Yes No

We do not have a Radiant Panels Running Cost Calculator.  However, this can be determined easily by taking the panel’s wattage, dividing it by 1000, and then multiplying the result by the local kW/hr cost – then take this hourly cost and multiple by 730 hours to get a monthly estimate.

7 people found this helpful.  Did you find this helpful? Yes No

There is no on/off button. If you're using your dual connection Ember radiant panel in the plug-in configuration, it can be unplugged when not in use or paired with compatible plug-in control devices like a timer. If you've elected to convert your dual connection radiant panel to a hardwired connection, the radiant panel should be wired to a hardwired control option like a switch, a hardwired timer, or a hardwired thermostat.

6 people found this helpful.  Did you find this helpful? Yes No

Yes.

4 people found this helpful.  Did you find this helpful? Yes No

No, the Ember radiant panels are not designed to be controlled with a dimmer.

4 people found this helpful.  Did you find this helpful? Yes No

Yes.

3 people found this helpful.  Did you find this helpful? Yes No

Verify 120V power at the connection of the panel to the circuit at the junction box in the wall (for hardwired connections), or at the outlet (for plug-in connections). Each Ember heater has a built-in safety switch that turns off the heating element automatically if it overheats. By unplugging or disconnecting the unit and waiting for about 10 to 15 minutes, the safety switch will reset automatically and the unit will be operational again.

If you experience additional issues, please give us a call at 1-800-875-5285.

2 people found this helpful.  Did you find this helpful? Yes No

Publications and Manuals



Specifications


Electrical

Amps 5 A
Connection Method Plug-in or Hardwired
Cord Length 6′
Ohms 24 Ω
On/Off Switch No
Plug-Type NEMA 5-15 (Type B)
Thermal Power 0.6 kW
Voltage 120 V
Watts 600 W

Warranty / Certifications

Approvals cTUVus certified
Ingress Protection (IPxx) Rating IP65
RoHS Compliance 2002/95/EC (RoHS 1)
Warranty 5 years

Performance

Average Surface Temperature 194 °F
BTU Per Hour 2047 Btu
Heating Coverage 85 ft²
Surface Safety Limit 248 °F

Product Dimensions

Depth 1.375″
Depth with Towel Bar Accessory 4.5″
Height 35.4″
Length 35.4″
Weight 30.8 lbs
Width 23.6″

Appearance

Finish Glass Mirror
Model Ember Mirror - 35″ x 24″
Size 35″ x 24″ - 600W

Installation

Mounting Locations Wall
Mounting Orientation Horizontal or Vertical

Identifiers

SKU IP-EM-GLS-MIR-0600
UPC (GTIN-12) 881308039196
