TempZone™ Flex Roll 120V 1.5′ x 38′, 57 sq.ft., 7.2A


TempZone™ Flex Roll 120V 1.5′ x 38′, 57 sq.ft., 7.2A
Get an Instant Quote
Request a Free Product Sample
Support Page
Also Available on Amazon
  • 25 Year Warranty
  • 15 Watts Per Sq. Ft
  • 1/8'' Super thin rolls or mats to fit any room shape

TempZone™ Flex Rolls Description

Take the chill off your tile, stone or marble floors. At 15 watts per square foot, TempZone™ Flex Rolls add warmth and luxurious comfort to any room in your house. Safe and easy-to-install, the 120 V TempZone™ Flex Rolls feature a low-profile, 1/8" cable affixed to a mesh fabric backing in a serpentine pattern to evenly distribute heat over the entire floor.

Each cut-and-turn roll is 1′ 6″ x 38′, providing of coverage, and they are fully backed by our unbeatable 25-year No Nonsense Warranty.

Specifications

Electrical

Amps 7.13 A
Cable Length 222.14′
Floor Load 0.9
Ohms 16.84 Ω
Ohms Per Ft 0.076 Ohm/ft
VOP 64
Voltage 120 V
Watts 855 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 2917 Btu

Product Dimensions

Cold Lead Length 15′
Coverage 57 ft²
Heating Element Thickness 0.125″
Length 38′
Width 1′ 6″

Logistics

Country of Origin (COO) India

Installation

Floor Types Commonly installed beneath tile and stone

Identifiers

SKU TRT120-1.5x38
UPC (GTIN-12) 881308021399

Customer Questions & Answers

TempZone™ Flex Rolls has 83 Questions and Answers.

Don't see the answer you're looking for? Post your question

How do I work with my electrician to install WarmlyYours electric floor heating?

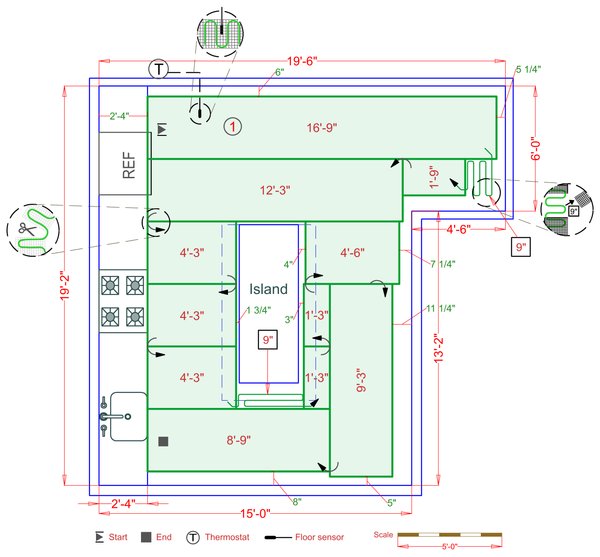

While WarmlyYours electric radiant floor heating systems are typically installed by your floor covering contractor, a licensed electrician is recommended for the final thermostat hook-up. With every quote, we provide an Installation Plan layout, together with an electrical plan that has all the info required for the electrician.

32 people found this helpful.  Did you find this helpful? Yes No

Is electric floor heating safe and what about EMF?

Our electric radiant floor heating systems have withstood rigorous safety testing and earned the UL listing. They produce much less EMF than common household appliances like your TV or vacuum cleaner. The EPRI (Electric Power Research Institute) tests all electrical devices and publishes the data. Many common household appliances are tested at a distance of 6 inches. The test results indicate that on average, the EMF emitted for the following appliances, measured in Milligauss (mG) units, is:

Vacuum Cleaner: 300 mG

Microwave: 200 mG

Portable Heater: 100 mG

Dishwasher: 20 mG

Washing Machine: 20 mG

WarmlyYours TempZone™ (Twin): 1.8 mG

23 people found this helpful.  Did you find this helpful? Yes No

How can I determine what I need for my floor heating project and how can I find out what my floor heating system will cost?

You can use the Instant Quote Tool, which gives you many options for your floor heating coverage. Use this interactive tool to design your room online and receive an instant quotation with product recommendations, rough-in and installation kits, cost of your control, etc. Planning your floor heating project is made easy when using our Instant Quote Tool.

Send us your floor plan or fax it to (800) 408-1100 and we will send you a quote, product recommendation and a free custom installation plan for your project.

22 people found this helpful.  Did you find this helpful? Yes No

What type of flooring can I install along with an electric floor heating system?

WarmlyYours’ TempZone™ product is most commonly installed under tile, stone, and marble flooring, but can also be installed under many other popular floor covering options such as hardwood, vinyl and linoleum. We also have our Environ system, which is an electric floor heating product as well and is specially designed for installation under carpet (in the U.S. only), laminate and floating wood. WarmlyYours can accommodate any flooring type with either of the electric radiant floor heating products that we offer. If your flooring type isn't listed here, just give us a call at (800) 875-5285 and we will be happy to discuss it with you.

21 people found this helpful.  Did you find this helpful? Yes No

What voltage does WarmlyYours floor heating systems utilize?

The floor heating systems are offered in both 120 volt and 240 volt for the North American market. A 208 volt breaker panel can also accommodate our 240 volt floor heating system. It is important to note that the energy consumption will be the same: a 240 volt system will not cost more to operate than a 120 volt system. You are billed in kilowatts, and the 120 volt and 240 volt systems use the same amount of kilowatts. WarmlyYours often specifies a 120 volt system in smaller projects while a 240 volt system is typically recommended for larger projects (120 square feet of electric floor heating coverage or more). The benefit of switching to a 240 volt system is the reduction in amperage. Our programmable thermostat can control a radiant floor system up to 15 amps. The 120 volt system will reach 15 amps at 120 square feet of electric floor heating coverage. However, the 240 volt system will reach 15 amps at 240 square feet of electric floor heating coverage, allowing a much larger system to be connected to the thermostat. For installations over 240 square feet, a relay contactor or power modules are needed.

15 people found this helpful.  Did you find this helpful? Yes No

View all 83 Questions and Answers

Customer Reviews

TempZone™ Flex Rolls achieved an average rating of 4.9 stars with 345 reviews by our customers.

Have you used this product before? Leave a review

Excellent support with planning, purchasing and technical help throughout the project.

Jack M., Mahwah, NJ on 10/18/2023

I called to get information and spoke to Jennifer. After reviewing all the information on your company I sent a drawing , with the help of your on line tools , planners and Jennifer all the components were shipped by the end of the next day.. All went as planned. And promised. Jennifer really knows your product and is an asset to your organization. It’s refreshing to know that companies such as yours still exist. We had delays in construction , the system has been installed now for a few weeks, for well and we are ver pleased with the performance.

great value, awesome for DIY and worked perfectly

Michael S., Saint Joseph, MN on 07/10/2023

great value, awesome for DIY and worked perfectly

supper friendly and very helpful

Michael S., Saint Joseph, MN on 07/10/2023

ordering was great answered all the questions I had and asked questions to make sure i had everything i needed i felt very taken care of

Great experience and great product

Ulrich S., Steamboat Springs, CO on 06/15/2023

Our new bathroom floor is warm and comfortable. The installation went smoothly and the instructions were spot on.

Best product

Terry B., San Diego, CA on 06/11/2023

Been using WarmlyYours for many years Great service and support would never change

Works good, easy application

Joe C., Richmond Hill, ON on 05/24/2023

Works good, easy application

Awesome customer service

Larry H., Scarborough, ON on 04/28/2023

It is great when you have a company that will stand behind their products. They will take time to make sure that you are 100% happy with your purchase

You have been most helpful

Anonymous, Brookings, OR on 04/16/2023

We have received prompt service and and excellent buys. This particular order has not been installed, but we have bought from you many times and received shipments promptly, and the products were as described and worked well.

Daniels first home

Kory N., Portland, OR on 04/09/2023

When buying you first home, cost is always a concern. Daniel was worried about the added cost of a heated floor because it seemed the realm of the wealthy. After explaining of how economical the equipment really is compared to the impact on resale value he was convinced to give it a try. He absolutely loves his floor and talks about it constantly. He now claims he will never do a bathroom floor without it.

Cozy Toes!

Anonymous, Albuquerque, NM on 03/06/2023

I enjoy heated floors so much. This is perfect in my small bathroom. Makes for warm feet in the middle of the night, early morning.

View all customer reviews
