TempZone™ Flex Roll 240V 1.5′ x 14′, 21 sq.ft., 1.4A

4.94
Based on 373 reviews



Get an Instant Quote
Request a Free Product Sample
Support Page

Features

  • 25 Year Warranty

  • 15 Watts Per Sq. Ft

  • 1/8'' Super thin rolls or mats to fit any room shape

TempZone™ Flex Rolls Description

Ideal for installation under tile, stone, marble, and nailed hardwood floors, TempZone™ Flex Rolls add radiant warmth and comfort to any room. These easy-to-install rolls are C-UL-US Listed and produce 15 watts per square foot, making them the hottest product on the market. The TempZone™ Flex Rolls feature a low-profile, 1/8", heating cable affixed to a mesh fabric backing in a serpentine pattern to evenly distribute heat over the entire floor.

Each cut-and-turn roll is 1.5 x 14 ft., providing 21 ft² of coverage. The 240 V TempZone™ Flex Rolls are backed by our unbeatable 25-year No Nonsense Warranty.

Specifications

Electrical

Amps 1.31 A
Cold Lead Wire Gauge 17 AWG
Floor Load 0.32 kW
Ohms 182.86 Ω
Ohms Per Ft 2.252 Ohm/ft
Thermal Power 0.32 kW
Voltage 240 V
Watts 315 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 1075 Btu

Product Dimensions

Cold Lead Length 15′
Coverage 21 ft²
Heating Cable Length 81.2′
Heating Element Thickness 1/8″
Length 14′
Weight 3 lbs
Width 1′ 6″

Appearance

Color Green

Installation

Floor Types Commonly installed beneath tile and stone

Logistics

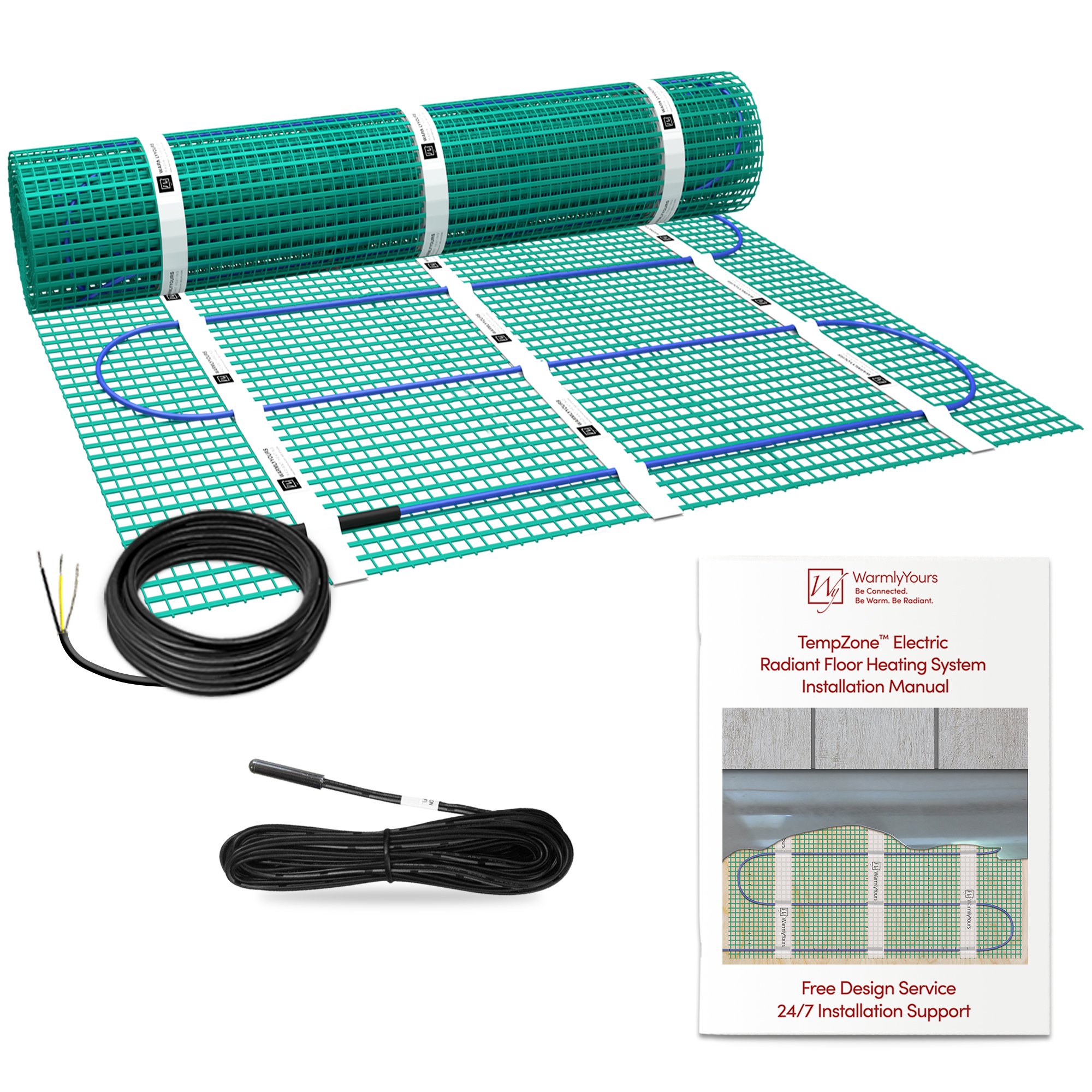

Package Contents (1) TempZone Flex Roll 240V 1.5′ x 14′ 21 sq ft 1.4A (TRT240-1.5x14); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)
UNSPSC Code 40101830

Identifiers

SKU TRT240-1.5x14
UPC (GTIN-12) 881308021443

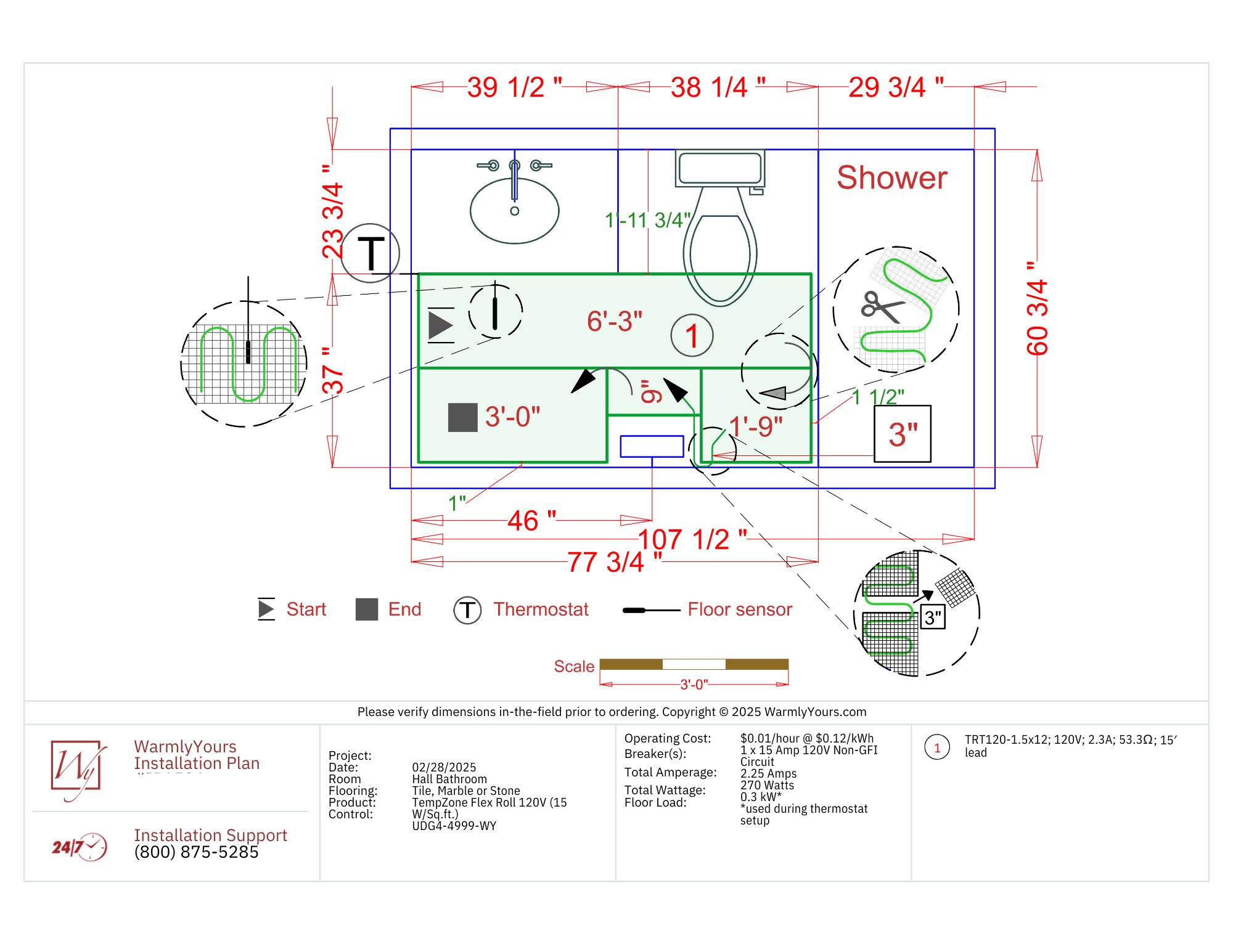

Installation Plans
