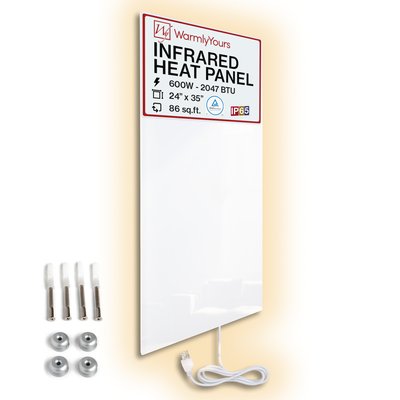

Ember Glass Radiant Panel Heater - White - 600W - 35ʺ x 24ʺ - Dual Connection
Part Number: IP-EM-GLS-WHT-0600
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Common Support Questions (2)
Publications and Manuals (4)
Specifications (24)
Videos (5)
Articles (6)
Related Items (4)
Similar Items (4)
Create a new Support Request
Shop Now
Common Support Questions
Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.
Need more help? View support options
The power box, where the cord starts, is located at the lower-middle part of the panel (for vertical mount) or left-middle (for horizontal mount). See additional images in the product's image gallery.
Need more help? View support options
Publications and Manuals
Installation
Ember Mounting Instructions (English)Ember Radiant Panel Installation Manual (English)
Specifications
Electrical
| Amps | 5 A |
| Connection Method | Plug-in or Hardwired |
| Cord Length | 9.5 ft |
| Ohms | 24 Ohm |
| On/Off Switch | No |
| Voltage | 120 VAC |
| Watts | 600 W |
Warranty / Certifications
| Approvals | cTUVus certified |
| Ingress Protection (IPxx) Rating | IP65 |
| RoHS Compliance | 2002/95/EC (RoHS 1) |
| Warranty | 5 years |
Performance
| BTU Per Hour | 2047 |
| Maximum Surface Temperature | 212 F° |
Appearance
| Finish | Glass White |
| Model | Ember Glass White - 35″ x 24″ |
| Size | 35″ x 24″ - 600W |
Product Dimensions
| Installed Depth | 1.5 in |
| Length | 35.4 in |
| Weight | 30.9 lbs |
| Width | 23.6 in |
Installation
| Mounting Locations | Wall |
| Mounting Orientation | Horizontal or Vertical |
Identifiers
| SKU | IP-EM-GLS-WHT-0600 |
| UPC (GTIN-12) | 881308039172 |
Videos
Product Line Videos
Articles
Ember towel warmer mounting points
Ember TUV Listing, dimensions, weights, ohms, excess cord storage, operating maximum temperature.
LAVA or Ember Won't Heat
Radiant Panel Sizing

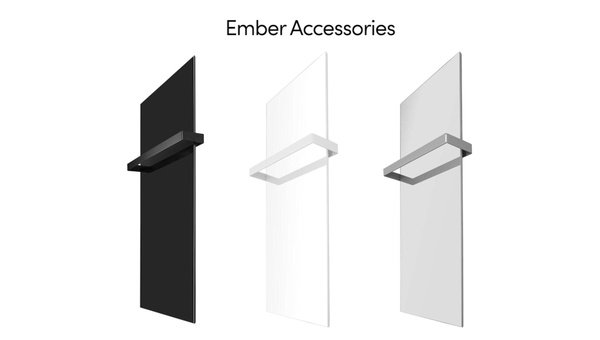

Radiant Panel Towel Bar Accessory
The basics of infrared heating
Ember TUV Listing, dimensions, weights, ohms, excess cord storage, operating maximum temperature.
LAVA or Ember Won't Heat
Radiant Panel Sizing
Radiant Panel Towel Bar Accessory
The basics of infrared heating
