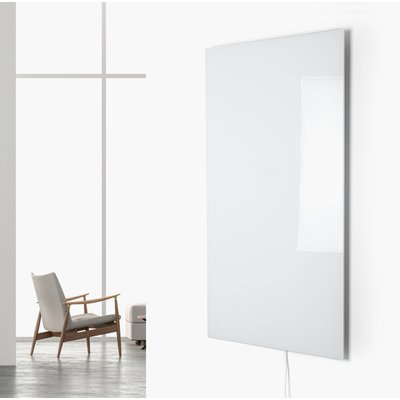

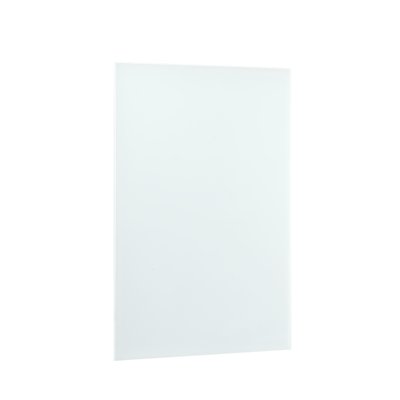

Ember Glass Infrared Heating Panel - White - 800W - 47″ x 24″ - Dual Connection

Ember Glass Infrared Heating Panel - White - 800W - 47″ x 24″ - Dual Connection

Part Number: IP-EM-GLS-WHT-0800
This support page provides publications, manuals, specifications, videos, support articles, and common support questions
Need help? Call our experts at (800) 875-5285
Create a new Support Request
Shop Now
Jump to

Support Questions

Showing 10 of 18 questions

Only the Ember Flex infrared heating panels can be mounted from the ceiling and they come with all of the necessary hardware to accomplish this.

None of the infrared heating panel heaters from the Ember Glass or Ember Mirror lines can be mounted from the ceiling.

22 people found this helpful Was this helpful? Yes No

If you have a room with "average" insulation levels, take the square footage and multiply it by 7 or 8 watts per square foot. That will provide a good estimate of the watts needed to heat that space.

10 people found this helpful Was this helpful? Yes No

Yes. A running panel’s surface averages about 194°F (90°C), and some Ember models reach 257°F (125°C). A quick touch is hot enough to make you pull away, but longer contact can burn, so keep it out of reach of children, pets and anyone who can’t move away quickly. In rooms children use, mount it at least 4 feet up.

8 people found this helpful Was this helpful? Yes No

Radiant heat travels through air, and typically heats up objects closer to the panel first and then the rest of the room later. Infrared heating from the panel can be easily detected from about 3-4 feet. Ideally, the infrared heating panel should be aimed onto the area with more use, since that will be the surface that will warm up first.

8 people found this helpful Was this helpful? Yes No

We do not have a Infrared Heating Panels Running Cost Calculator.  However, this can be determined easily by taking the panel’s wattage, dividing it by 1000, and then multiplying the result by the local kW/hr cost – then take this hourly cost and multiple by 730 hours to get a monthly estimate.

7 people found this helpful Was this helpful? Yes No

There is no on/off button. If you’re using your dual connection Ember infrared heating panel in the plug-in configuration, it can be unplugged when not in use or paired with compatible plug-in control devices like a timer. If you’ve elected to convert your dual connection infrared heating panel to a hardwired connection, the infrared heating panel should be wired to a hardwired control option like a switch, a hardwired timer, or a hardwired thermostat.

6 people found this helpful Was this helpful? Yes No

The power box, where the cord starts, is located at the lower-middle part of the panel (for vertical mount) or left-middle (for horizontal mount). See additional images in the product's image gallery.

5 people found this helpful Was this helpful? Yes No

Yes, they are cTUVus Listed.

5 people found this helpful Was this helpful? Yes No

Yes.

4 people found this helpful Was this helpful? Yes No

No, the Ember infrared heating panels are not designed to be controlled with a dimmer.

4 people found this helpful Was this helpful? Yes No

The heat conductor is carbon fiber pressed in an epoxy ceramic resin.

4 people found this helpful Was this helpful? Yes No

Yes.

3 people found this helpful Was this helpful? Yes No

The startup heating time for this infrared heating system is approximately 5 to 10 minutes. However, your room will not feel warmer immediately because the cold objects in the room (furniture, walls, ceilings, floors, etc.) need to warm up first. Once these surfaces are heated via infrared heating, the warmth will spread throughout the room.

2 people found this helpful Was this helpful? Yes No

Verify 120V power at the connection of the panel to the circuit at the junction box in the wall (for hardwired connections), or at the outlet (for plug-in connections). Each Ember heater has a built-in safety switch that turns off the heating element automatically if it overheats. By unplugging or disconnecting the unit and waiting for about 10 to 15 minutes, the safety switch will reset automatically and the unit will be operational again.

If you experience additional issues, please give us a call at 1-800-875-5285.

2 people found this helpful Was this helpful? Yes No

You can connect your plug-in infrared heating panels to a line voltage automated or a manual switch, timer, plug-in thermostat, or wifi switch. You can also use one of the controls found on our web page; https://www.warmlyyours.com/en-US/radiant-panels/controls

Was this helpful? Yes No

Mount the panel with its bottom edge at least 2 feet above the floor, or at least 4 feet up in rooms children use, where nothing blocks its line of sight to where you sit. Keep at least 10 inches clear in front. Don’t mount it in front of or right below an outlet, or where someone in the tub or shower could touch it.

Was this helpful? Yes No

EMBER panels send out infrared radiation only on the front side. Make sure that there is a minimum distance of 10 inches between the front of the panel and any objects.

Was this helpful? Yes No

The Ember panels supply Far IR Rays. The best and most efficient spectrum for heating is the C Spectrum (Far IR rays, 6 to 10 microns). EMBER panels produce 99.82% of its output in the C-range and more than 90% of it in the optimum spectrum of it (6 to 10 microns).

Was this helpful? Yes No

Specifications

Electrical

Amps 6.7 A
Connection Method Plug-in or Hardwired
Cord Length 6′
Ohms 17.91 Ω
On/Off Switch No
Plug-Type NEMA 5-15 (Type B)
Thermal Power 0.8 kW
Voltage 120 V
Watts 800 W

Warranty / Certifications

Approvals cTUVus certified
Ingress Protection (IPxx) Rating IP65
RoHS Compliance 2002/95/EC (RoHS 1)
Warranty 5 years

Performance

Average Surface Temperature 194 °F
BTU Per Hour 2730 Btu
Heating Coverage 114 ft²
Surface Safety Limit 248 °F

Product Dimensions

Depth 1⅜″
Depth with Towel Bar Accessory 4.5″
Height 47.2″
Length 47.2″
Weight 40.7 lbs
Width 23.6″

Appearance

Finish Glass White
Model Ember Glass White - 47″ x 24″
Size 47″ x 24″ - 800W

Installation

Mounting Locations Wall
Mounting Orientation Horizontal or Vertical

Identifiers

SKU IP-EM-GLS-WHT-0800
UPC (GTIN-12) 881308039189
