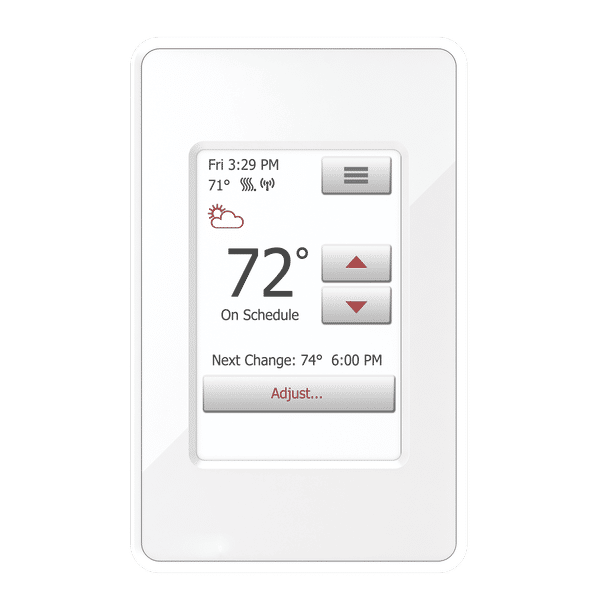

nSpire Touch WiFi (UWG4)

nSpire Touch WiFi (UWG4)

The nSpire WiFi thermostat offers all the things you expect from a smart touchscreen thermostat – voice control (works with Hey Google and compatible with Amazon Alexa, adaptive control and intuitive operation.
This support page provides publications, manuals, videos, support articles, and common support questions for the nSpire Touch WiFi product line.

Create a new Support Request
Jump to

Support Questions

Showing 10 of 41 questions

The breaker and wire sizes are selected based on the total amperage of the WarmlyYours heating system connected to a single thermostat. This information is on the WarmlyYours heating system's installation plan, electrical plan, or UL label. Based on guidelines from the National Electrical Code: loads up to 16 Amps may utilize 12 gauge wire with a 20-Amp breaker, and loads up to 12 Amps - 14 gauge wire with a 15-Amp breaker. Local code and/or other factors may change these guidelines.

6 people found this helpful Was this helpful? Yes No

One thermostat can control multiple heating mats/cables as long as all the heating elements are using less than 15 amps:

TempZone™ will cover aprx. 120 sq. ft. for 120V systems and 240 sq. ft. for 240V systems on one thermostat.

Environ™ will cover aprx. 150 sq. ft. for 120V systems and 300 sq. ft. for 240V systems on one thermostat.

Slab Heat will cover aprx. 90 sq. ft. for 120V systems and 180 sq. ft. for 240V systems on one thermostat.

5 people found this helpful Was this helpful? Yes No

In theory, it is possible, if no other options are available. We do not recommend it, but If the thermostat is controlling the floor temperature with a floor sensor, then it can go on an exterior wall. It is important that the floor sensor gets located in an area of the floor not hit by sunshine.

If the thermostat will be controlling the air temperature with the built-in ambient sensor, then it should go on an interior wall.

3 people found this helpful Was this helpful? Yes No

A GFCI/GFEP (Ground Fault Circuit Interrupter / Ground Fault Equipment Protection) works differently than a circuit breaker by specifically detecting a small imbalance in electrical current between the hot and neutral wires, which indicates a potential ground fault (like a person touching a live wire), and instantly shutting off the power to prevent shock, while a circuit breaker only trips when there's a significant overload in current flow on the circuit, like a short circuit or too many appliances plugged in.

3 people found this helpful Was this helpful? Yes No

The default is 10k. If this is a new installation, that is the answer. In the very rare occasion that this is replacing an older Energy stat (eg. square OJ Microline from before 2010 with red and green sensor wires), choose 12k. If this is a replacement for the other 99% of the thermostats WarmlyYours sold (Honeywell TH115 and TH111 thermostats), 10k is the value.

Always start with the default 10kΩ and change later if needed.

3 people found this helpful Was this helpful? Yes No

Pressing and holding (2-3 sec) physical power/reset button will turn the unit completely OFF. Same process turns the unit back on.

(nHance and nJoin units will have the button on the front faceplate, nSpire Touch WiFi, nSpire Touch and nTrust will have the button on the right side of the faceplate.)

2 people found this helpful Was this helpful? Yes No

The ground wire in the floor mat must be connected directly to the ground wire of the supply or to the house ground wire.

2 people found this helpful Was this helpful? Yes No

Relays can fail due to excessive current or voltage. When a relay is exposed to too much current, the contacts can burn out. High voltage can also damage the coil. Other reasons include mechanical wear and tear, dust or dirt buildup, and moisture. These factors can cause the relay to malfunction or stop working entirely. Regular maintenance and using the relay within its specified limits can help prevent failures.

2 people found this helpful Was this helpful? Yes No

Yes, the sensor wires may be trimmed.  Most local code requirements call for 6“-7“ of extra wire from the gang box.

1 person found this helpful Was this helpful? Yes No

Check the connections between the thermostat and power module. If the power module is connected incorrectly to the thermostat, the power module won't switch off.

USG Power Module Connection Diagram


1 person found this helpful Was this helpful? Yes No

82°F - 85°F is the most common comfortable warm temperature of the floor.

1 person found this helpful Was this helpful? Yes No

Our thermostats are indoor rated. So long as they are kept within normal indoor humidity levels, they will continue to operate optimally. These thermostats are not rated to be installed in wet areas, steam rooms, or rooms with abnormal humidity levels or poor ventilation.

Was this helpful? Yes No

Please follow the interactive guide below:

Was this helpful? Yes No

The flashing digits indicate that the actual (measured) floor temperature exceeds the thermostat temperature limit.

The temperature limit is set for either tile (104°F/40°C) or laminate (82°F/28°C) when the thermostat is first set up or re-configured.

For example: When the floor type (protection) is set to laminate, the limit defaults to 82°F/28°C. If the floor temperature goes above this - whether due to radiant floor heating or external heating sources, then the digits will flash and the heating is switched off.

Turning the temperature up or down will not affect the flashing digits. And leaving the thermostat alone with flashing digits does not harm the system.

Tip: To turn off the heated floor (ex. for months when it is not needed), on the outer edge of the thermostat, depress the lower right side button for 3-5 seconds. This will also turn it back on.

Was this helpful? Yes No

Yes, the Touch and Wifi units will keep the time, there is a back up battery that will last quite a long time.  No need for resetting the clock in event of power outage.

Was this helpful? Yes No

All thermostats are mandated at 42" height for handicap accessibility, most private residences are mounted at 52-60".

Please see this video on how to install a WarmlyYours nSpiration Series thermostat.

Was this helpful? Yes No

Yes, this model is dual-voltage and compatible with both 120V and 240V systems. However, ensure your supply voltage matches the voltage requirement of your specific floor heating element (e.g., do not connect 240V power to a 120V heating mat).

For a visual guide on these thermostats, you might find this video helpful:
... OJ Microline UWG4 and UDG4 Touch thermostats overview ...

This video details the features and installation concepts for the UWG4/AWG4 series, confirming its dual-voltage capabilities.

Was this helpful? Yes No

Yes, the floor sensor wire can be extended up to 300 feet with 18 AWG wire.

Was this helpful? Yes No

Yes the adaptive function is reset during a factory reset.

Was this helpful? Yes No

Turn the power (circuit breaker typically) to the thermostat off for 5 minutes and then back on to reset the thermostat.

If there is power to the thermostat and it still doesn't appear to work, then the next step toward a solution is to take Ohm measurements of the floor heating system.

This is done with a digital multi-meter that can select a low 200 Ohm (Ω) scale. To conduct this test, turn off the circuit breaker. Remove the thermostat completely from the wall and disconnect the wires connected to the LOAD connections at the back of the thermostat. Disconnect the ground wires from the house ground, and do the test shown on the links below. If you are uncomfortable doing this test, contact a qualified electrician.

Please follow one of these guides based on the type of heating system installed:

TempZone Single Conductor

TempZone Twin Conductor

For a quick overview of the testing process:

Here is a video showing how the test is done

Here is a video showing how to locate and identify the floor heating wires

If the system still does not function, contact +1 (800) 875-5285 WarmlyYours Technical Support and provide the Ohm measurements for further assistance.

Was this helpful? Yes No

- If we aren’t using it for floor, how do we handle the Load Measurement. Do we set that to on or off?

If you do not desire the reporting feature, turn it off.

- For set the floor load, what do we put there?

If you desire the reporting feature, enter the result of your panel’s wattage divided by 1000. For example, the Ember Flex Infrared Heating Panel Heater - 700W parameter would be set to .7

- Set floor protection - what do we put in there, “disabled”?

Yes, since the infrared heating panel is not reliant on an external floor sensor it should be disabled.

- For the Ember Flex panels, do they actually heat up and cool down based on the set point/target temperature? We’ve been running them on timer plugs and they seem to either be all on or all off.

You are correct, they operate as an on/off operation. The panels in this configuration will run until the ambient set temperature is achieved.

Was this helpful? Yes No

Menu > Installer Settings > Sensor Application > Select Floor > Press checkmark to save.

See video here: https://www.warmlyyours.com/en-US/videos/switching-modes

Was this helpful? Yes No

See the nSpire Touch WiFi setup guide for full instructions. To find the OJ Microline UWG4 app, search for “UWG4” in the App Store or Google Play.

Was this helpful? Yes No

Connecting to Amazon Alexa

Once a WiFi connection has been successfully setup and the OJ Microline UWG4 App associated with the thermostat, it can be connected to an Amazon Alexa home system.

  1. Open the Amazon Alexa App
  2. Click “+”
  3. Click “Device” from the "Add" screen
  4. Find and select “Thermostat" under “All Devices”
  5. Choose “Other” under "What Brand is Your Thermostat?"
  6. Select "WiFi" (it may search local WiFi for a short period)
  7. In the 3 options that follow, at bullet #3 select the "Smart Home Skills" link
  8. In Search field, type "UWG4"
  9. Select "UWG4 Thermostat" (If you get choices, Select UWG4)
  10. Select “Enable" to use
  11. Login withg your OJ Microline userid and password
  12. Select "Allow"
  13. It will then work to discover the Alex devices and enable the selection of the desired OJ Microline thermostat when complete

Your thermostat is now connected to the Amazon Alexa system!

Connecting to Google Assistant

Before setting up voice control for the thermostat, you need a Google account that has been connected to the Google Home App.

  1. Open the Google Hoome App on your smartphone or tablet
  2. At the top left, tap "Add" (+) - "Set up Device" - "Works with Google"
  3. Select the manufacturer of the device from the list. Search "UWG4" and select "UWG4 Smart Thermostat"
  4. Follow the in-app steps to complete setup:
  • Sign into the UWG4 app with your logion information
  • Read and accept the grants page
  • The thermostat should now appear as available to be linked to Google Home.
  • Choose the thermostatand click "Next" in the bottom right corner
  • Select a location for your thermostat and cleck "Next"

Your thermostat is now set up and you can try different voice commands using the thermostat name that you chose in the Google Home app.

Was this helpful? Yes No

To unlock WarmlyYours nSpire Touch Programmable Thermostat from child lock mode: Connect the dots on the touch screen to make the letter "L".

Was this helpful? Yes No
Was this helpful? Yes No

Forego the app because the password cannot reset there, and go to a web browser and to the website mythermostat.info   Once there, click 'Forgot password'.

Was this helpful? Yes No

Login to mythermostat.info from a web browser to confirm account activation.  A password reset may be required and the web browser login is the only menu that allows this.  Assure the ONLINE, CONFIRMED, and LINKED statuses are all YES; activation succeeded.  You may now proceed to use the mobile device OJ Microline UWG4 app.  If activation did not succeed, contact WarmlyYours Technical support at (800) 875-5285 during normal business hours for assistance.

Was this helpful? Yes No

This indicates a fault, current to ground. The thermostat has cut off the power for your safety. Please contact your local electrician or WarmlyYours Technical Support.

Was this helpful? Yes No
Was this helpful? Yes No
Was this helpful? Yes No
Was this helpful? Yes No

Error code “E2” means the floor sensor is defective, damaged or not connected. Check the connections, and replace the sensor if needed. Test the sensor with a digital multimeter on the 20k scale. Because the sensor is a thermistor, its resistance changes with temperature: it typically reads about 8kΩ–15kΩ at normal room temperature, lower when warm and higher when cold. A reading of 0 ohms or OL (open line) indicates a failed sensor. Only one floor sensor can be connected to a thermostat.

Was this helpful? Yes No

If the radiant heating system is a WarmlyYours purchased radiant heating system, the Distributor ID is 10266

Otherwise, use Distributor ID 99887

Was this helpful? Yes No

That is the sound the thermostat makes when the relay is either opened or closed to turn on or off the power to the floor heating elements. See this article for further information.

Was this helpful? Yes No

WarmlyYours controllers incorporate built-in Class A GFCI protection for all new floor heating systems.  Class A GFCI provides personnel protection and trips when ground fault current exceeds 5 mA (milliamps).  Class B GFCI protection is pretty much obsolete, but older systems may still require it.  WarmlyYours controllers with built-in Class B GFCI provide equipment and circuit protection and operates when a fault to ground exceeds 15 mA.

Was this helpful? Yes No

For systems below 12 Amps, a 15 Amp, Non-GFI breaker is fine. For systems 12 to 16 Amps, a 20 Amp, non-GFI breaker is needed. Breaker sizes are noted on the installation plan that ships with many orders.

Was this helpful? Yes No

GFCI can fail for various reasons, such as wear and tear, moisture, corrosion, power surges, faulty wiring, or improper installation. Some of these causes can be prevented by regular inspection and maintenance, while others may require professional assistance. It is important to note that GFCI devices (ex. thermostat, breakers, outlets) should be tested regularly as these do wear out over time.

Was this helpful? Yes No

A floor sensor measures floor temperature so a compatible thermostat can regulate comfort and enforce the flooring manufacturer’s temperature limit. Some thermostats, including nTrust 2.0, offer a regulator mode without a sensor, but that mode does not measure floor temperature. Use sensor-based temperature control whenever required by the flooring or heating-system instructions.

Was this helpful? Yes No

Follow the on-screen instruction to reset the GFI by pressing the lower right side button.

If the unit continues to trip please contact Tech Support at +1 (800) 875-5285

Was this helpful? Yes No
