TempZone Flex Roll Kit 1.5 x 60 ft (90 sq.ft.) with nSpire Touch Programmable Thermostat (White), 120V, 11.22A


Part Number: TRT120-KIT-OT-1.5x60
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (1)

publication
Publications and Manuals (52)

specifications
Specifications (50)

Videos (23)

Articles (8)

Related Items (3)

Similar Items (85)

Create a new Support Request

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Amps 11.22 A
Battery 5-year battery backup of clock and calendar
Connection 4 wires, double pole
Connection Method Hardwired
Floor Load 1.35 kW
Ground Fault Protection GFCI, Class A, 5 mA
Ground Fault Protection (GFCI) Class A, 5 mA
Maximum Current 15 A
Maximum Load (Resistive Only) 1800 W - 120 V, 15 A / 3600 W - 240 V, 15 A
Maximum Load (Resistive Only) 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Ohms 10.7 Ω
Ohms Per Ft 0.03 Ohm/ft
Supply 120 VAC - 50/60Hz, 240 VAC - 50/60Hz
Thermal Power 1.35 kW
VOP 61
Voltage 120 V
Watts 1346 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cULus listed
Ingress Protection (IPxx) Rating IP20
Proposition 65 Compliant Yes
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 4593 Btu

Product Dimensions

Cold Lead Length 15′
Coverage 90 ft²
Depth 2″
Heating Cable Length 360′
Heating Element Thickness 1/8″
Installed Depth 0.75″
Length 60′
Weight 12.65 lbs
Width 1′ 6″

Appearance

Color White

Logistics

Country of Origin (COO) India

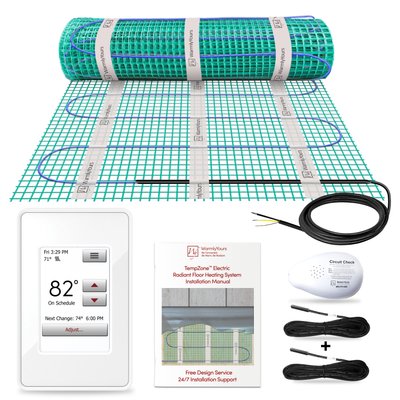

Package Contents 1x TempZone Flex Roll 120V 1.5′ x 60′ 90 sq ft 11.3A (TRT120-1.5x60); 1x nSpire Touch Programmable Thermostat White (UDG4-4999-WY); 1x Circuit Check (SS-01); 2x Floor Sensors

Controls

Display Backlit Display
Display Size 2″ W x 3″ H (3.5″ Diagonal)
Languages English, French, Spanish

Thermostat

Floor Sensor Compatibility 10k ohms, 12k ohms and custom
Included Floor Sensor 10k ohms, 15' lead
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F
Temperature Rise Limit in Laminate Floor Protection ~10°F/hr (~5.58°C/hr)

Installation

Floor Types Commonly installed beneath tile and stone

Identifiers

SKU TRT120-KIT-OT-1.5x60
UPC (GTIN-12) 881308079741
