Prodeso Cable Installation Membrane Support

Prodeso Cable Installation Membrane Support

This support page provides publications, manuals, videos, support articles, and common support questions for the Prodeso Cable Installation Membrane product line.

Create a new Support Request Shop Now
Jump to

Support Questions

Showing 10 of 16 questions

Waterproofing for the room is in the layer above the floor heating system. The layers for waterproofing this type of floor are:

  • subfloor
  • thinset
  • uncoupling membrane
  • tempzone heating cable
  • waterproofing tape for seams and corners
  • thinset or self leveling cement
  • tile floor
5 people found this helpful Was this helpful? Yes No

WarmlyYours has recently begun including floor sensors with our heating elements to help ensure customers will have everything they need for optimal operation of their radiant heating systems.

The sensor included with your floor heating element can be installed with the heating system (the sensor is equally spaced between runs of the heating wire--see your install manual for more info). Installing this sensor with your floor heating control will enable energy efficient operation of the floor warming system based on the floor temperature instead of the ambient room temperature.

We generally recommend that you install a second, unconnected backup floor sensor alongside the primary one. In the very unlikely event that your first floor sensor is damaged, this install method will save you from having to pry up flooring to replace a floor sensor. You simply disconnect the damaged sensor from the thermostat and connect the backup sensor.

In addition to the floor sensor that was included with your heating element, our nSpiration Series thermostats also come with a floor sensor. If you purchase both a heating element and an nSpiration Series thermostat from WarmlyYours, you'll have a primary and a backup floor sensor for your system.

3 people found this helpful Was this helpful? Yes No

Self-Leveling (SLC) Cement is not recommended for use over Prodeso. Contact WarmlyYours if self-leveling underlayment is required.

2 people found this helpful Was this helpful? Yes No

Install membrane over entire floor first, then heating cable, then do the tiles 1 or 2 at a time. Never cover the Prodeso entirely with thin-set first. Only apply as much thin-set as needed to lay a couple of tiles at a time.

2 people found this helpful Was this helpful? Yes No

Waterproofing is recommended under and around tubs/showers. It’s also recommended wherever the tile could possibly be exposed to considerable amounts of water. Prodeso is naturally waterproof, but the corners and seams need to be treated with waterproofing tape and thin-set. (Use Pro WP Waterproofing Band 5“ - Soft polyethylene tape – to seal seams.)

2 people found this helpful Was this helpful? Yes No

A decoupling membrane protects the installation from differential expansion/contraction between the substrate and the flooring, relieving almost all shear stresses. Crack isolation protects the installation by isolating the flooring from minor in-plane substrate cracking.

1 person found this helpful Was this helpful? Yes No

Yes, the sensor wires may be trimmed.  Most local code requirements call for 6“-7“ of extra wire from the gang box.

1 person found this helpful Was this helpful? Yes No

Prodeso installation membrane does not eliminate the need for expansion joints (adhere to local codes).

1 person found this helpful Was this helpful? Yes No

Unroll the membrane the day before installation to flatten it and avoid any potential ‘memory’ due to environmental conditions.

1 person found this helpful Was this helpful? Yes No

1.25"

1 person found this helpful Was this helpful? Yes No

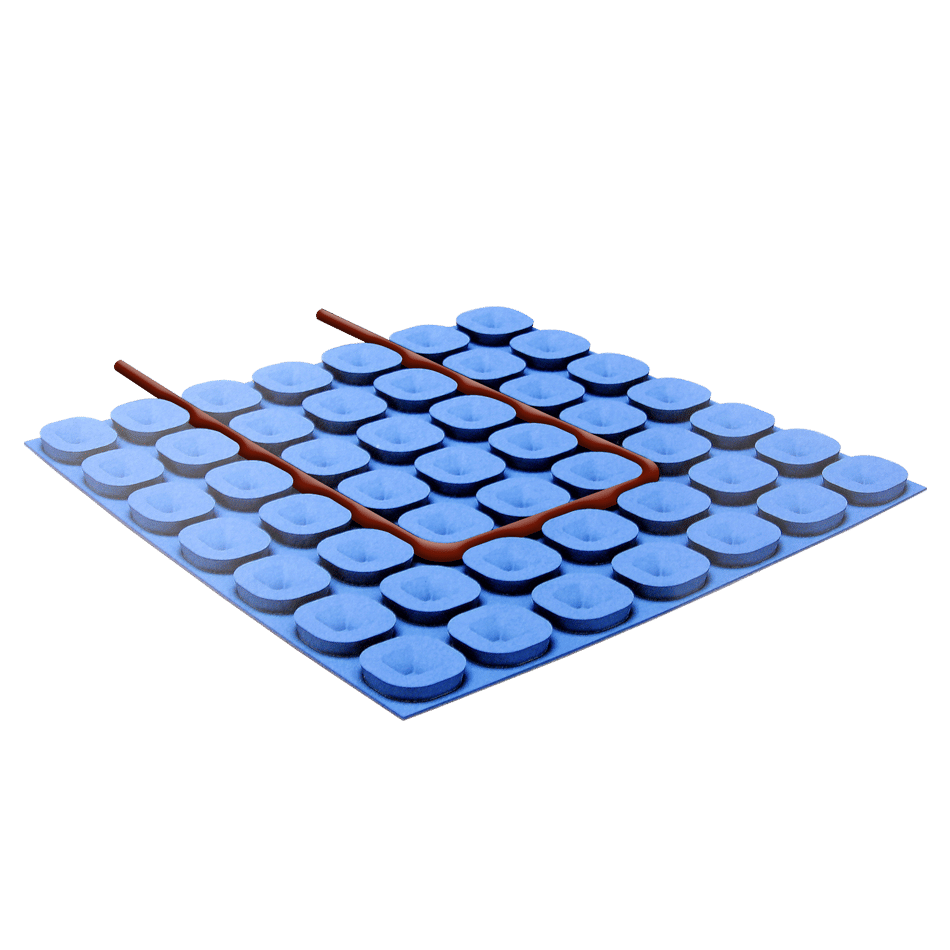

The wire spacing in the Prodeso Cable Installation Membrane is 3.75“, or every 3rd peg.

1 person found this helpful Was this helpful? Yes No

Yes, we offer several options to help make your floor heating system water resistant or waterproof. Our TempZone product line is designed for wet areas - making it completely safe for rooms that will have water on the floor at times or may experience leaks or flooding. We also offer waterproofing bands for our TempZone Cable + Prodeso Uncoupling Membrane system. Allowing you to waterproof all seams and the perimeters of the wall - guaranteeing that your floor heating system stays safe and prevents water from leaking to areas below.

Was this helpful? Yes No

A digital meter with a 0-200 Ohms scale ( Ω ) to measure the heating wire's resistance, and a 20K scale to measure the sensor's resistance.

Was this helpful? Yes No

Not a good choice for mosaic tile work, Prodeso requires 2“ x 2“ or larger tiles.

Was this helpful? Yes No

When laying Prodeso installation membranes adjacent to each other, align the square relief pegs for the later heating element cable runs.

Was this helpful? Yes No

An uncoupling membrane like Prodeso provides a flexible layer between your subfloor and tile, preventing cracks caused by natural floor movement. It also offers waterproofing and vapor management, making it ideal for bathrooms. Plus, the membrane’s studs make cable installation fast and consistent without the need for staples or glue.

Was this helpful? Yes No
