TempZone Flex Roll Kit 1.5 x 43 ft (64 sq.ft.) with nTrust Nonprogrammable Thermostat, 120V, 8.06A


Part Number: TRT120-KIT-ON-1.5x43
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (1)

publication
Publications and Manuals (48)

specifications
Specifications (44)

Videos (23)

Articles (8)

Related Items (3)

Similar Items (85)

Create a new Support Request

Common Support Questions


Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options


Publications and Manuals



Specifications


Electrical

Amps 8.06 A
Connection 4 wires, double pole
Connection Method Hardwired
Floor Load 0.97 kW
Ground Fault Protection GFCI, Class A, 5 mA
Maximum Current 15 A
Maximum Power 1800 W @ 120 V, 3120 W @ 208 V, 3600 W @ 240 V
Ohms 14.88 Ω
Ohms Per Ft 0.059 Ohm/ft
Supply 120 VAC, 50/60Hz / 240 VAC, 50/60Hz
Thermal Power 0.97 kW
VOP 62
Voltage 120 V
Watts 968 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications

Approvals cULus listed
Proposition 65 Compliant Yes
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance

BTU Per Hour 3303 Btu

Product Dimensions

Cold Lead Length 15′
Coverage 64.5 ft²
Depth 2″
Heating Cable Length 251.25′
Heating Element Thickness 1/8″
Installed Depth 0.75″
Length 43′
Weight 8.15 lbs
Width 1′ 6″

Appearance

Color Green

Logistics

Country of Origin (COO) India

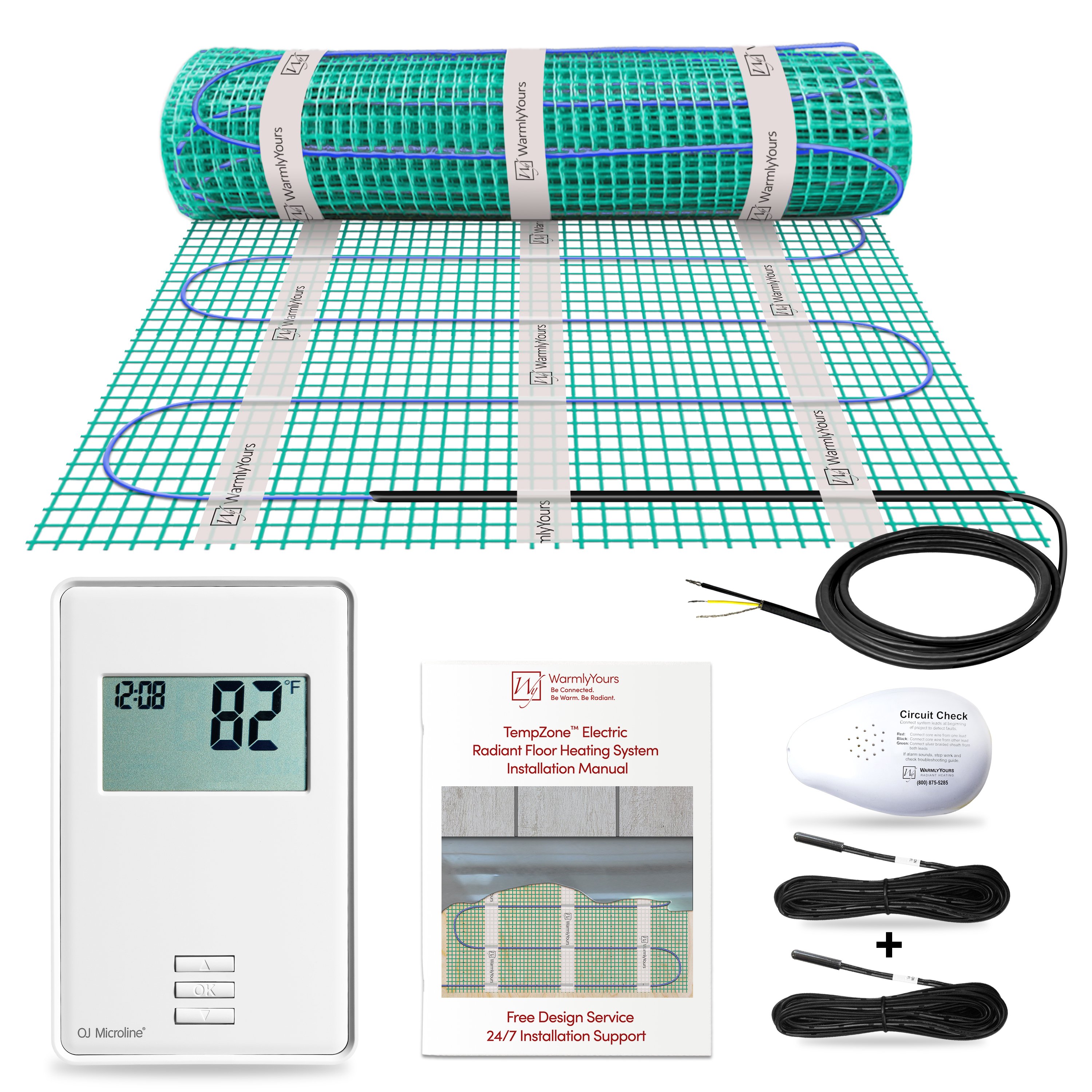

Package Contents 1x TempZone Flex Roll 120V 1.5′ x 43′ 64.5 sq ft 8.1A (TRT120-1.5x43); 1x nTrust Nonprogrammable Thermostat (UTN4-4999); 1x Circuit Check (SS-01); 2x Floor Sensors

Controls

Display Backlit Display
Display Size 2.5″

Thermostat

Floor Sensor Compatibility 10k ohms only
Includes Floor Sensor Yes (1)
Maximum Ambient Temperature Setting 77 °F
Maximum Floor Temperature Setting 104 °F
Minimum Ambient Temperature Setting 32 °F
Minimum Floor Temperature Setting 41 °F
Programmable No

Installation

Floor Types Commonly installed beneath tile and stone

Identifiers

SKU TRT120-KIT-ON-1.5x43
UPC (GTIN-12) 881308079208
