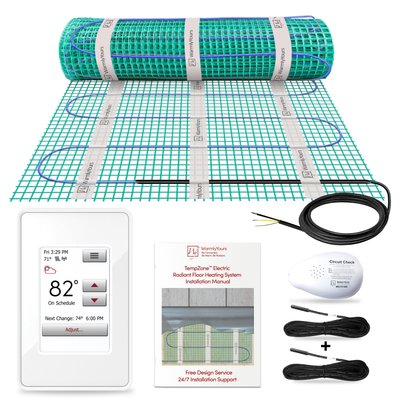

TempZone Flex Roll Kit 1.5 x 70 ft (105 sq.ft.) with nSpire Touch WiFi Programmable Thermostat (White), 120V, 13.19A


Part Number: TRT120-KIT-OW-1.5x70
This support page provides publications, manuals, specifications, videos, support articles, and common support questions


question-mark
Common Support Questions (2)

publication
Publications and Manuals (2)

specifications
Specifications (25)

Videos (21)

Articles (8)

Related Items (3)

Similar Items (144)

Create a new Support Request

Common Support Questions


Do radiant heating products have polarity?

Electric-resistance heating cables and systems have no polarity. This includes all current WarmlyYours heating elements.

Need more help? View support options

Is installing reflective insulation effective for making an electric radiant floor heating or snow-melting system more efficient?

Reflective insulation is not effective with conductive heating, which is how embedded floor heating and snow-melting systems transfer heat. To be effective, the reflective insulation surface needs to face an air space (air gap), which allows the reflected heat to be redirected.

An effective solution considers the insulating material's R-Value. This is the rating of a material's insulating properties. The "R" stands for "resistance" and refers to the material's resistance to heat flow, or temperature conduction.

Need more help? View support options


Publications and Manuals



Specifications


Electrical (TRT120-1.5x70)

Amps 13.19 A
Floor Load 1.58 kW
Ohms 9.1 Ω
Ohms Per Ft 0.022 Ohm/ft
Thermal Power 1.58 kW
VOP 61
Voltage 120 V
Watts 1582 W
Watts Per Sq. Ft. 15 Watts Per Sq. Ft.

Warranty / Certifications (TRT120-1.5x70)

Approvals cULus listed
Warranty 25 Year Warranty
Wet Location Listed US, Canada

Performance (TRT120-1.5x70)

BTU Per Hour 5398 Btu

Product Dimensions (TRT120-1.5x70)

Cold Lead Length 15′
Coverage 105 ft²
Heating Cable Length 420′
Heating Element Thickness 1/8″
Length 70′
Weight 14.5 lbs
Width 1′ 6″

Appearance (TRT120-1.5x70)

Color Green

Installation (TRT120-1.5x70)

Floor Types Commonly installed beneath tile and stone

Logistics (TRT120-1.5x70)

Package Contents (1) TempZone Flex Roll 120V 1.5′ x 70′ 105 sq ft 13.2A (TRT120-1.5x70); 1x Floor Heating Sensor (FH-BACKUP-SENSOR)

Identifiers (TRT120-1.5x70)

SKU TRT120-1.5x70
UPC (GTIN-12) 881308025656
